Rack Mount Installation; Mounting Options; Wall Mount Installation; Shelf Installation - Altronix VertiLine563V Installation Manual

Rack Mount Installation

1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 6a).
2- Install mounting brackets (A) on the left and right side of rack chassis using the
four (4) flat head screws (B) (included) (Fig. 6b).
3- Place unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 6c).
(Space unit at least 3" from any video monitors). Do not obstruct side air vents.

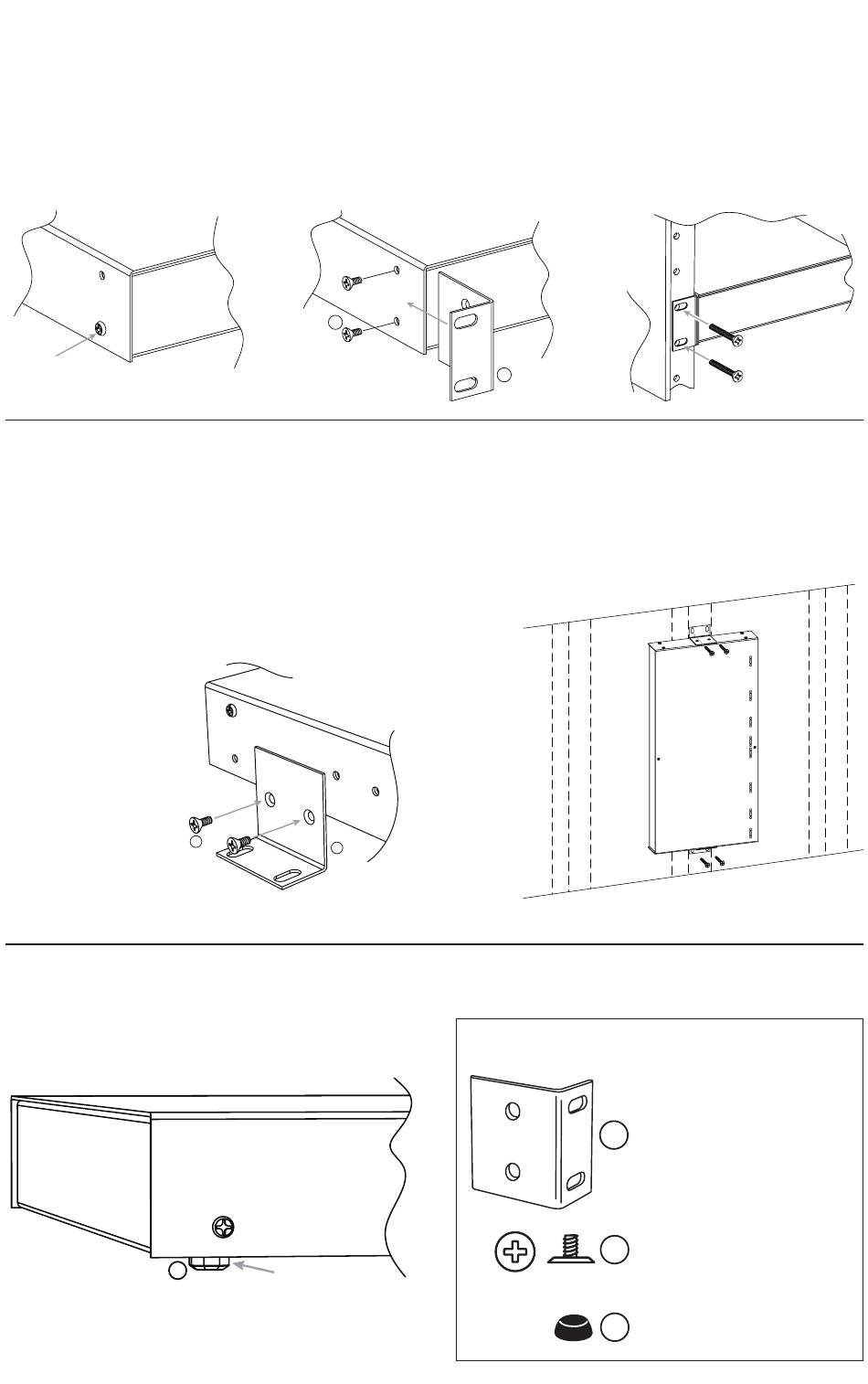

Fig. 6
Fig. 6a
Top
Front
Left
Remove

Wall Mount Installation

1- Install mounting brackets (A) on the left and right side of rack chassis using four (4) flat head
screws (B) (included) (Fig. 7a).
2- Place unit at desired location and secure with mounting screws (not included) (Fig. 7b).
Caution: It is necessary to make sure mounting screws are securely
fastened to a beam when installing the unit vertically.
Fig. 7

Shelf Installation

1- Position and affix rubber pads (C) (included) at each corner on the bottom of the unit (Fig. 8).
2- Place unit in desired location.
Fig. 8
VertiLine563V

Mounting Options:

Fig. 6b
B
Fig. 7a
B
A
Left Side
C
Rubber Feet
Top
Front
Left
A
Mounting Hardware (Included):
Fig. 6c
Top
Front Left
Fig. 7b
Dotted lines indicate
studs behind sheetrock.
A
Two (2) mounting brackets
Six (6) flat head screws
B
for mounting brackets.
C
Four (4) rubber pads.
- 7 -
