Rack Mount Installation; Mounting Options; Wall Mount Installation; Shelf Installation - Altronix VertiLine3DV Series Installation Manual

Rack Mount Installation

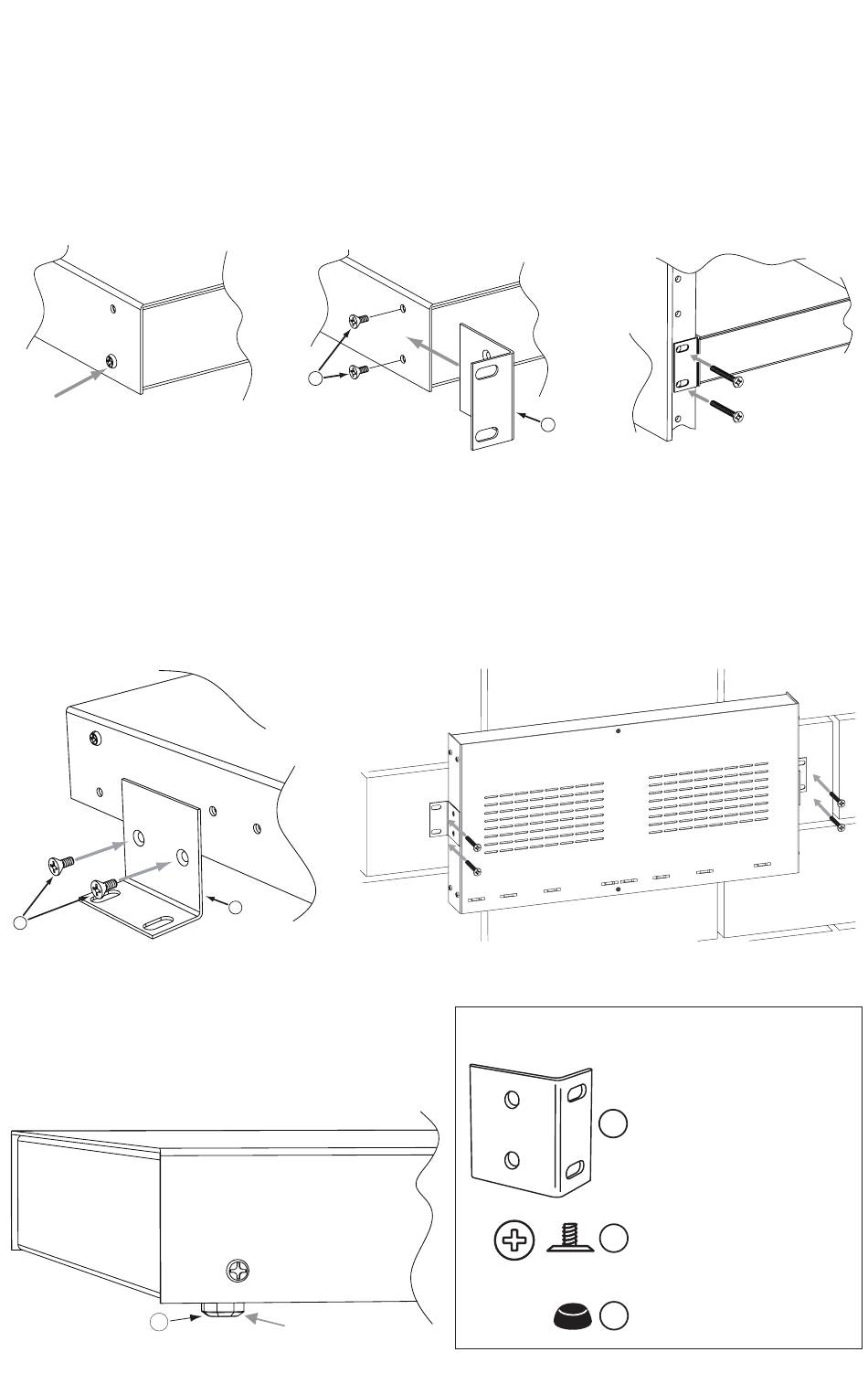

1. Remove factory installed screws from both sides of the rack chassis (Fig. 4a).
2. Install mounting brackets (A) on the left and right side of rack chassis using the
two (2) flat head screws (B) (included) (Fig. 4b).
3. Place unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 4c).
Fig. 4
Fig. 4a
Top
Remove
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Wall Mount Installation

1. Install mounting brackets (A) on the left and right side of rack chassis using
two (2) flat head screws (B) (included) (Fig. 5a).
2. Place unit at desired location and secure with mounting screws (not included) (Fig. 5b).
Caution: It is necessary to make sure mounting screws are securely fastened to a beam when installing.
Fig. 5
Fig. 5a
B
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Shelf Installation

1. Position and affix rubber pads (C) (included) at
each corner on the bottom of the unit (Fig. 6).
2. Place unit in desired location.
Fig. 6
C
VertiLine3DV / VertiLine6DV Installation Guide

Mounting Options:

Front
Left
B
A
Left Side
Rubber Pad
Fig. 4b
Top
Fig. 5b
Mounting Hardware (Included):
Fig. 4c
Front
Left
A
A
Two (2) mounting brackets
Six (6) flat head screws
B
for mounting brackets.
Four (4) rubber pads.
C
Top
Front Left
- 7 -
