Fig. 12
before proceeding with installation.
Rack Mount Installation

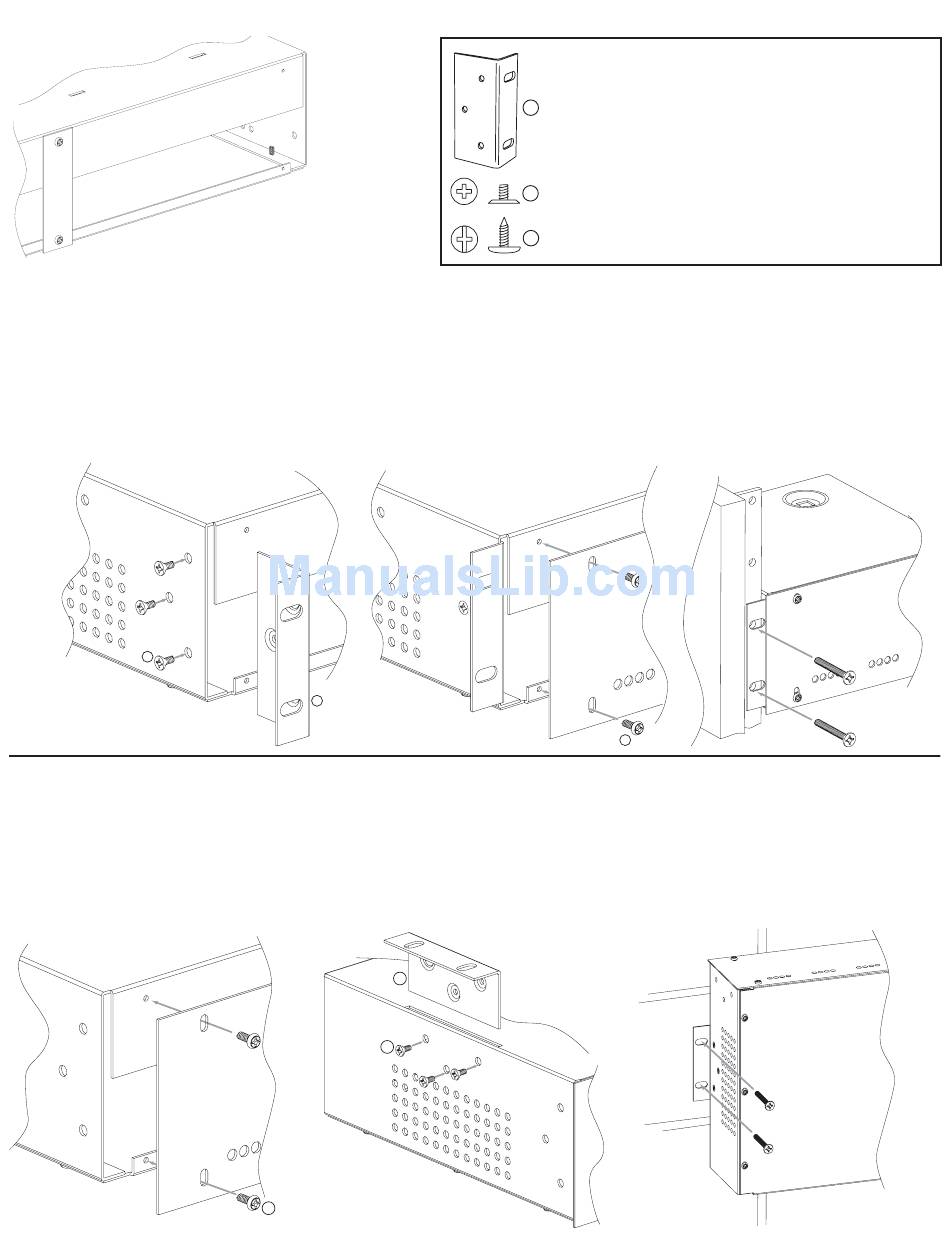

1. Remove center brace from rack mount chassis (Fig. 12, pg. 10).
2. Slide mounting brackets (A) into slots located on left and right side of rack enclosure (Fig. 13a).
Use three (3) flat head screws (B) to secure brackets.
3. Carefully place faceplate over LED's, and secure using three (3) pan head screws (C) on top and three (3) pan head
screws (C) on the bottom of faceplate (Fig. 13b, pg. 10).
4. Slide unit into desired EIA 19" rack position and secure with mounting screws (not included) (Fig. 13c, pg. 10).
Fig. 13
Fig. 13a
B
Wall Mount Installation
1. Carefully place faceplate over LED's, and secure using three (3) pan head screws (C) on top and three (3) pan head
screws (C) on the bottom of faceplate (Fig. 14a).
2. Place mounting brackets (A) onto the side of the left and right side of rack enclosure (Fig. 14b).
Use three (3) flat head screws (B) to secure mounting brackets.
3- Mount rack and secure with mounting screws (not included) (Fig. 14c).
Fig. 14
Fig. 14a
- 10 -

Mounting Options:

Remove center brace
from rack mount chassis
Fig. 13b
A
Fig. 14b
A
B
C
Mounting Hardware
(Included):
Two (2) mounting brackets.
A
Eight (8) flat head screws for mounting brackets.
B
Eight (8) pan head screws for faceplate.
C
C
Fig. 14c
Fig. 13c
Maximal Rack Access Power Controllers (PTC)
