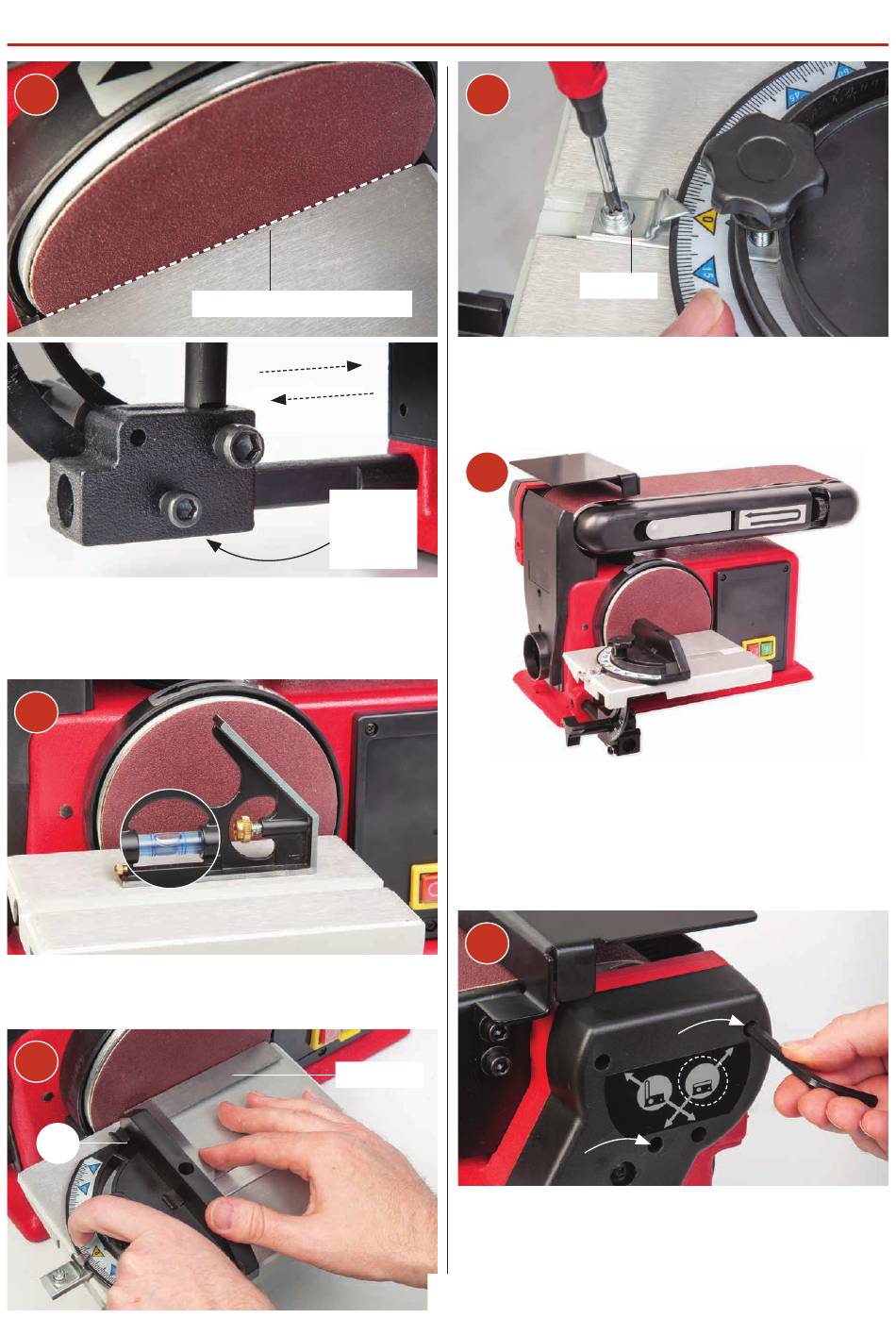

The gap between the table and the disc should be set to
a maximum of 1.6mm to clear the debris and to ensure
sufficient support for the timber.
9
Check the table is level and adjust by loosening the
caphead screw as shown above.
10
D
1.6mm clearance required
Loosen
caphead
screw
Square
ASSEMBLY/SETUP & ADJUSTMENT
11
Pointer
Slide the mitre fence (D) onto the table, place a square
against the fence/disc and adjust until square. Reset the
pointer to 'Zero' .
12
Setting Up the Linisher
The linisher can be raised to the vertical position to utilise
the worktable (B). See instruction below for setting up the
linisher.
1
Loosen the two clamping Hex screws holding the linisher in
the horizontal position and raise the linisher to the vertical
position.
7
Continues Over...
