Summary of Contents for Axminster AW300DS

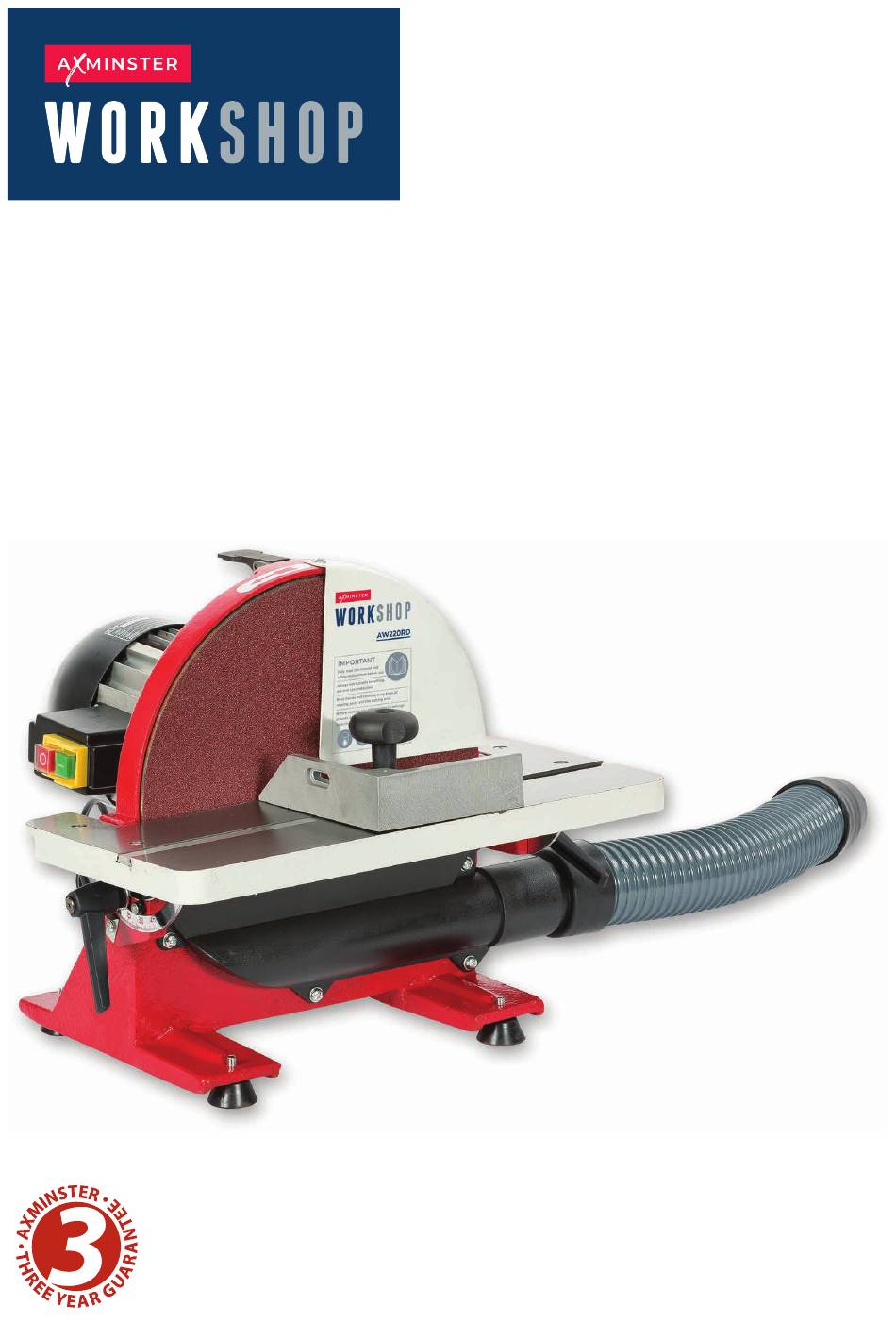

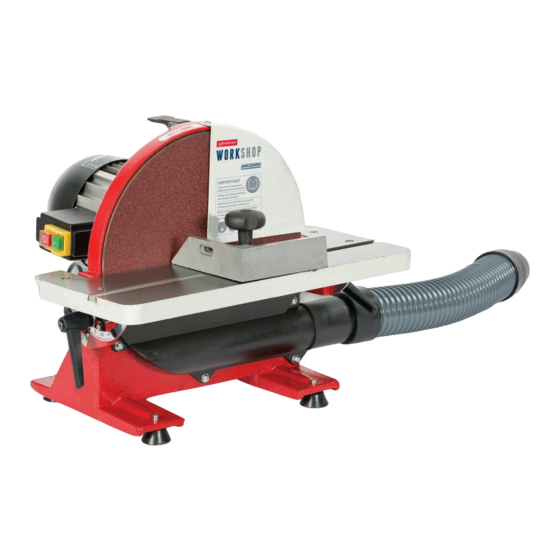

- Page 1 Code 107672 Original Instructions AW300DS 300mm Disc Sander AT: 09/02/2022 BOOK VERSION: 4...
-
Page 2: Eu Declaration Of Conformity
Maintenance Exploded Diagrams/Lists 13-14 Notes EU Declaration of Conformity Cert No: DS12 (Disc Sander) EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK axminstertools.com 2014/30/EU EN 55014-1:2017 EN 61000-3-3:2013+A1... -
Page 3: What's In The Box
What’s in the Box Model Number AW300DS Box Containing: 1 No. 300mm Disc Sander (Sanding Disc & Table Fitting) 1 No. Flexible Extraction Hose. Bag 1 Containing: 2 No. Moulded Lift & Shift Locking Handles 2 No. Locking Handle Spring/Screws Bag 1 Containing: 1 No. -
Page 4: General Instructions For 230V Machines
General Instructions for 230V Machines The following will enable you to observe good • Always disconnect by pulling on the plug working practices, keep yourself and fellow body and not the cable. workers safe and maintain your tools and equipment in good working order. •... -
Page 5: Specific To Sanding Machines
Specific to Sanding Machines WARNING! THE SANDING DISC CANNOT BE DECLUTCHED FROM THE BELT AND VICE VERSA, BOTH FUNCTIONS ARE ACTIVE WHEN THE MACHINE IS RUNNING. REMEMBER THIS, AND DO NOT LEAVE LOOSE OBJECTS OF ANY DESCRIPTION, ON THE MACHINE IF IT IS GOING TO BE USED. MAKE SURE you are comfortable before you Once the sander is mounted, carry out any start work, balanced, not reaching etc. - Page 6 Specific to Sanding Machines CHECK that the belts or discs are undamaged; other than to keep the workpiece in contact torn edges can pick up on the workpiece and with the surface, any pressure could upset the will cause the medium to tear, often very tracking geometry.
- Page 7 Assembly In order to reduce the footprint of the machine for packaging, several items are dismounted from the machine and need to be re-affixed. Locate the two moulded locking handles and the two spring/screws, insert the handles over the table swivel studs one on either side of the table (See fig 1). Fig 1 Swivel stud Moulded locking handle...
- Page 8 Assembly Screwdriver Fig 3 Lift the table until the scale pointer reads 90˚degrees on the scale, place a 90˚ degrees square on top of the table and adjust until both table and sanding disc are at 90˚ degrees, then clamp the table in position by pulling the locking handles down.
- Page 9 Assembly Locate the mitre fence and slide it into the “T” slot machined into the table. (See fig 5) Mitre fence Fig 5 “T” slot Locate the flexible extraction hose and fit one end of the hose over the dust extraction outlet, push firmly home.
-
Page 10: Specification
Specification Code 107672 Model AW300DS Rating Workshop Power 750W 230V 1ph Speed 1,420rpm Diameter of Disc 300 mm Table Size 445 x 155 mm Table Tilt 45° Dust Extraction Outlet 63 mm Overall L x W x H 500 x 470 x 420 mm... - Page 11 Parts Illustraction and Description PUSH DOWN Disc brake Motor Disc guard On/Off switch Sanding disc Sanding table Mitre fence Flexible extraction hose Rubber feet Table locking handle...
-
Page 12: Changing The Sanding Disc
Changing the Sanding Disc DISCONNECT THE MACHINE FROM THE MAINS SUPPLY! 6. Clean the surface of the disc with a 1. Remove the sanding disc guard by removing degreasing cleaner. Allow to dry off and wipe the two Phillips screws on top of the guard. over with a clean dry cloth. - Page 13 Exploded Diagrams/Lists...
- Page 14 Exploded Diagrams/Lists Item Decription Specification Item Decription Specification Sanding Disc 300mm Pan Head Bolt Base Lock Assembly Motor Disc Cover Outlet A5 x25 Dust Extraction Outlet adaptor Brake Base Table Brake Frame Mitre Fence Screw Handle Washer Spring Rubber Foot Washer Hex Nut Screw...
- Page 15 Notes...
- Page 16 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
