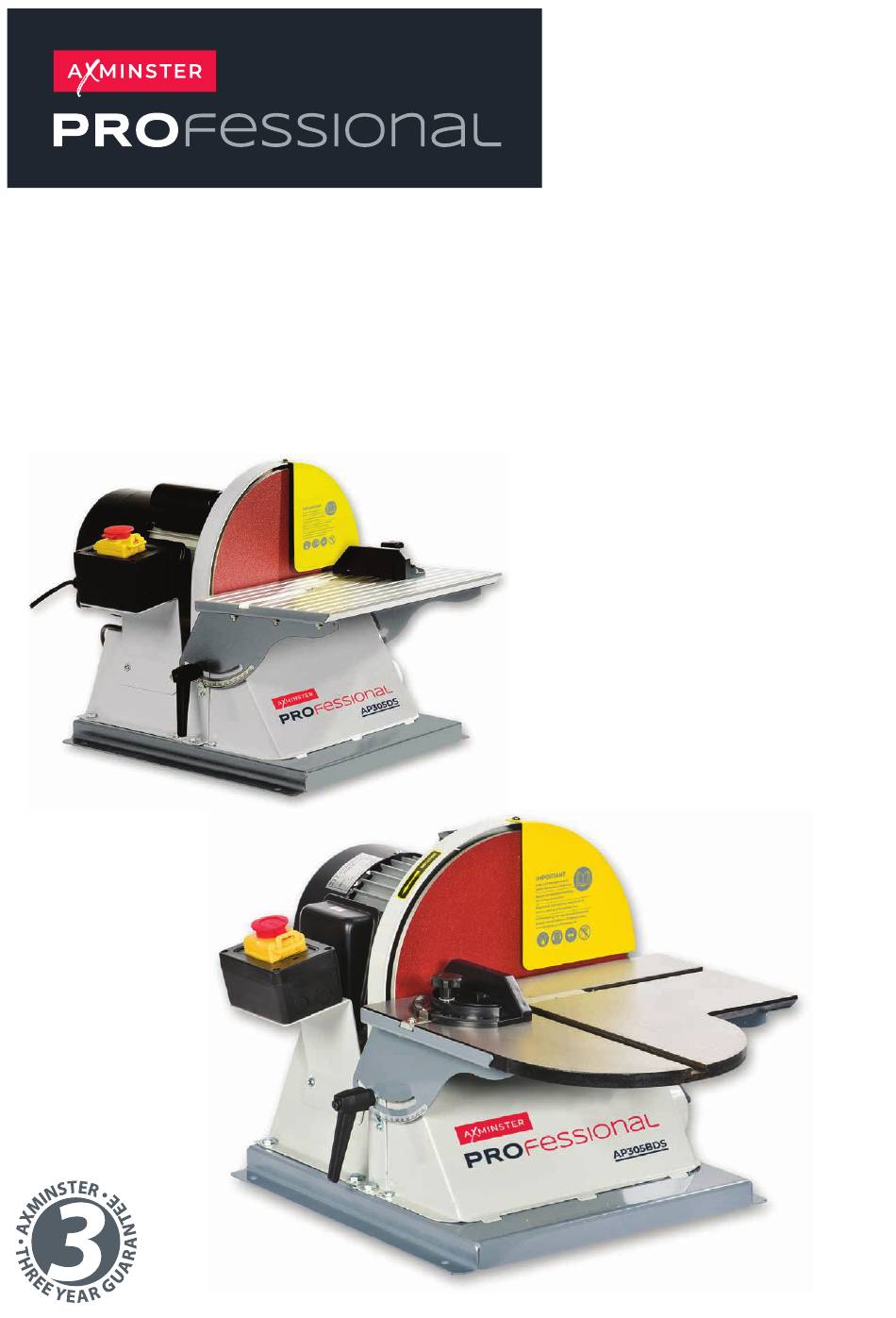

AP305DS Code 107627
AP305BDS Code 107628
Original Instructions
AP305DS 300mm
AP305BDS 305mm
Disc Sanders
Code: 107627
Code: 107628
AT: 08/02/2021
BOOK REF: APT008149
BOOK VERSION: 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Professional AP305DS and is the answer not in the manual?

Questions and answers

Related Manuals for Axminster Professional AP305DS

Summary of Contents for Axminster Professional AP305DS

  • Page 1 AP305DS Code 107627 AP305BDS Code 107628 Original Instructions AP305DS 300mm AP305BDS 305mm Disc Sanders Code: 107627 Code: 107628 AT: 08/02/2021 BOOK REF: APT008149 BOOK VERSION: 5...

  • Page 2: Eu Declaration Of Conformity

    12-13-14-15 Wiring Diagram Notes 17-18-19 EU DECLARATION OF CONFORMITY Cert No: WD-12 EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK axminstertools.com 2006/42/EC 2006/95/EC declares that the machinery described:-...

  • Page 3: What's Included

    WHAT’S INCLUDED Quantity Item Part Model Number AP305DS & AP305BDS 1 No AP305DS 300mm & AP305BDS 305mm Disc Sander 1 No Mitre Fence 1 No 10-13mm spanner 1 No Bag Containing Handle and two Screws 1 No Manual NOTE: Please read the Instruction Manual prior to using your new machine; as well as the operating procedures for your new machine, there are numerous hints and tips to help you to use the machine safely and to maintain its efficiency and prolong its life.

  • Page 4: General Instructions For 230V Machines

    GENERAL INSTRUCTIONS FOR 230V MACHINES However when you mount your machine, make sure it is Good Working Practices/Safety fastened down and stable before use. The following suggestions will enable you to observe good Paper belts and discs do not respond well to wet or damp working practices, keep yourself and fellow workers safe and conditions.

  • Page 5: Specific To Sanding Machines

    SPECIFIC TO SANDING MACHINES Once the sander is mounted, carry out any setting DO NOT use the machine within the designated safety areas operations, (mitre, tilt..?), and remove all tools used in the of flammable liquid stores or in areas where there may be setting operations (if any) and place safely out of the way.

  • Page 6: Specification

    SPECIFICATION Code 107267 Code 107628 Model AP305DS Model AP305BDS Rating Professional Rating Professional Power 560W (230V) Power 560W (230V) Plug Fitted UK 3 pin plug Plug Fitted UK 3 pin plug Speed 1,450 rpm Speed 1,425 rpm Diameter of Disc 300 mm Diameter of Disc 305 mm...

  • Page 7: Illustration & Parts Description

    ILLUSTRATION & PARTS DESCRIPTION Motor Model: AP305DS Disc Sanding table Disc guard Mitre fence ‘T’ slot Table clamping handle Extraction housing Dust extraction outlet Base Securing hole Mitre fence clamp Model: AP305BDS Pointer Scale Scale Emergency stop Pointer Control Switch...
  • Page 8 SETUP/ADJUSTMENTS Fig 03 Setting the table clearance The gap between the table and the disc should be set to a maximum of 1.6mm to clear the debris and to ensure sufficient support for the timber. The table should be positioned so that sanding only occurs from downward movement of the disc face.
  • Page 9 SETUP/ADJUSTMENTS Step 6 Check the pointer is set to ZERO on the tables scale Securing the Sander and adjust until correct (see fig 6). It is recommended to secure the sander to a work bench or stand using the four pre-drilled holes (d) in the chassis, (see Fig 06 fig 07).

  • Page 10: Changing The Sanding Disc

    CHANGING THE SANDING DISC Fig 13 DISCONNECT THE SANDER FROM THE MAINS SUPPLY BEFORE CONTINUING! Fig 10 Step 4 Locate the supplied spanner (C) and using the 10mm end remove the two nuts on either side of the extraction housing (see fig 13) Fig 14 Step 1 Remove the two table clamping handles (see fig 10).

  • Page 11: Maintenance

    CHANGING THE SANDING DISC clean dry cloth. Locate the sanding disc, peel the cover from Fig 16 the adhesive surface and apply CAREFULLY to the disc (see fig 16). Use a piece of cloth in your hand or wear a glove, to firmly press the abrasive to the disc, the application will be reinforced by a gentle sanding action across the face when you first use the new sanding disc.
  • Page 12 EXPLODED DIAGRAMS/LISTS Model: DS12DL (AP305DS)
  • Page 13 EXPLODED DIAGRAMS/LISTS Model: DS12DL (AP305DS) PART DESCRIPTION SPECIFICATION PART DESCRIPTION SPECIFICATION Base Washer M8xl8 Motor Base Motor 3/4 HP Switch Disc Cover Switch Disc 12” Power Cord Sanding Paper 12” Pan Head Screw M6x20 Left Tilting Washer M6xl3 Turing Right Tiltin Mitre Bar Tuming Mitre Gauge...
  • Page 14 EXPLODED DIAGRAMS/LISTS Model: DS12DLMB2 (AP305BDS)
  • Page 15 EXPLODED DIAGRAMS/LISTS Model: DS12DLMB2 (AP305BDS) PART DESCRIPTION SPECIFICATION PART DESCRIPTION SPECIFICATION Base Hex Head Screw M8x16 Motor Base Washer 5/16”x18 Motor 3/4HP Disc Cover Switch Disc 12” Power Cord Sanding Paper 12” Switch Board Left Tilting Wire protectors Turning Pan Head Screw M6x12 Right Tilting Hex Head Screw M6x16 Turning...

  • Page 16: Wiring Diagram

    WIRING DIAGRAM...
  • Page 17 NOTES...
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
