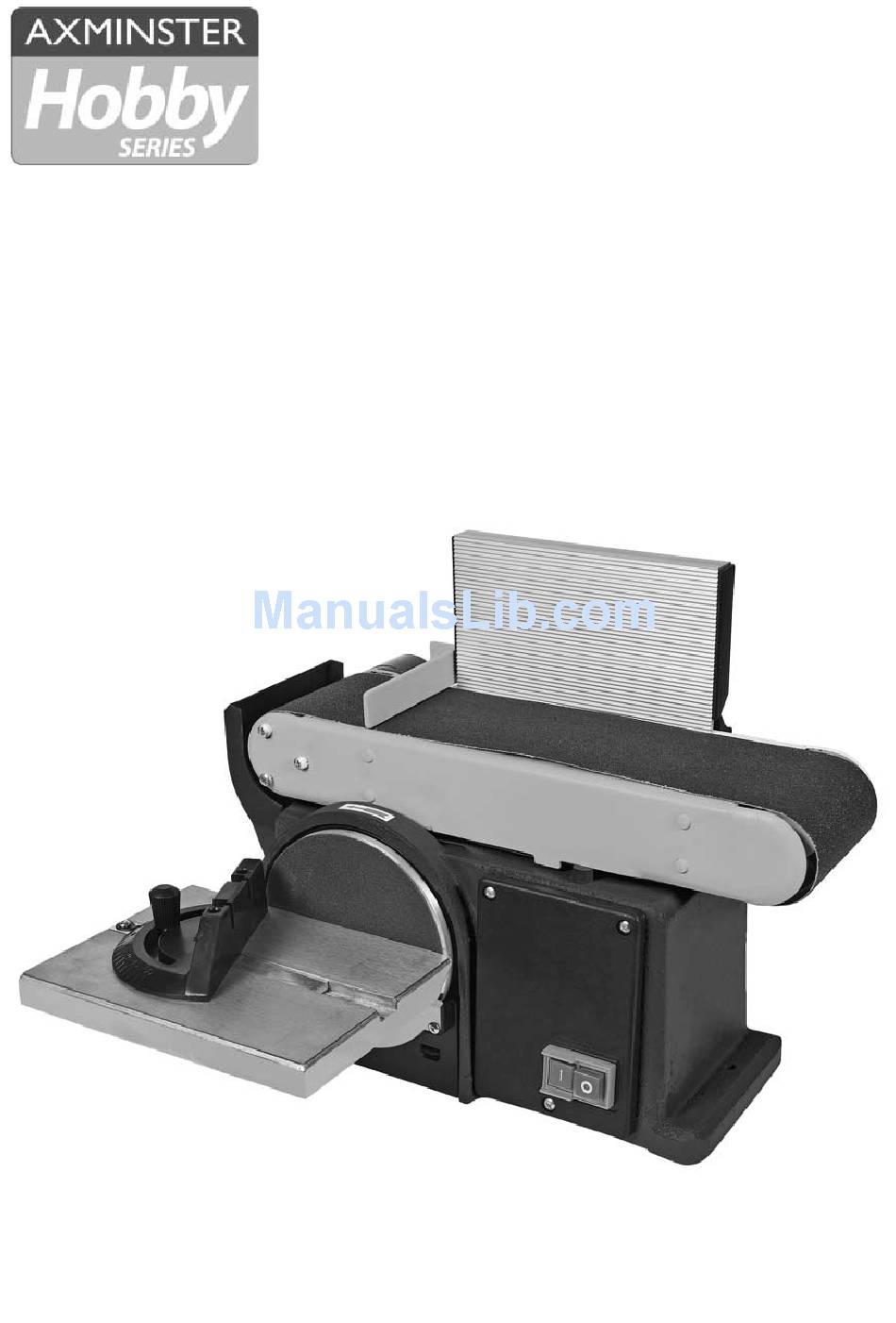

- Page 1 Code: 501256 AWEBDS46 MkII Belt and Disc Sander Axminster Tool Centre, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH axminster.co.uk...
-
Page 2: Table Of Contents
Index of Contents Page No. Index of Contents Declaration of Conformity What’s in the Box General Instructions for 230V Machines Specific to Sanding Machines 06-07 Assembly 07-08-09-10-11-12 Fitting the Fence Assembly 12-13 Specification Identification and Description of the Sander 14-16-18 Illustration and Parts Description 15-17-19-20 Vertical Sanding... -
Page 3: Declaration Of Conformity
Declaration of Conformity Copied from CE Certificate The undersigned, F. Nispel authorised by Weihai Y&X Electrical Machinery Co., Ltd. Sunjia Tuan Town Weihai, Shandong 264201 P.R.China declares that this product: Belt and Disc Sander MM491E manufactured by Weihai Y&X Electrical Machinery Co. is in compliance with the following standards or standardisation documents inaccordance with Council Directives EN 55014-1: 2000+A1+A2... -
Page 4: What's In The Box
What’s in the Box Model Number: MM491E Box: 1 No. Belt & Disc Sander 1 No. Work Stop Plate (Sanding Belt Fitted) 1 No. Sanding Disc Cover Plate 1 No. 150mm Sanding Disc 1 No. Mitre Fence 1 No. Disc Table 1 No. -
Page 5: General Instructions For 230V Machines
General Instructions for 230V Machines Good Working Practices/Safety The following suggestions will enable you to observe good working practices, keep yourself and fellow workers safe and maintain your tools and equipment in good working order. KEEP TOOLS AND EQUIPMENT OUT WARNING!! OF THE REACH OF YOUNG CHILDREN Mains Powered Tools (General) /Disc &... -
Page 6: Specific To Sanding Machines
Specific to Sanding Machines WARNING! THE SANDING DISC CANNOT BE DECLUTCHED FROM THE BELT AND VICE VERSA, BOTH FUNCTIONS ARE ACTIVE WHEN THE MACHINE IS RUNNING. REMEMBER THIS, AND DO NOT LEAVE LOOSE OBJECTS OF ANY DESCRIPTION, ON THE MACHINE IF IT IS GOING TO BE USED. Once the sander is mounted, carry out any setting operations, (mitre, tilt..?), and remove all tools used in the setting operations (if any) and place safely out of the way. -
Page 7: Assembly
Specific to Sanding Machines CHECK that the belts or discs are undamaged; torn edges can pick up on the workpiece and will cause the medium to tear, often very rapidly with accompanying sharp flapping edges. ALWAYS offer the workpiece to the belt/disc so that the motion carries the work against the restraining surface, (i.e. - Page 8 Assembly Fig 2 M6 washer Shake proof washers WARNING!! Fig 3 DO NOT over tighten remember this is a casting Spanner Put the table assembly aside to fit later see page 9. Fitting the Sanding Disc Clean the surface of the disc with a degreasing cleaner, (methylated spirit;...
- Page 9 Assembly Locate the sanding disc cover plate & the two M4 phillip screws and secure in place as illustrated. (See fig 5) Sanding disc cover plate Fig 5 Locate the table scale label, peel back the cover from the adhesive surface and apply CAREFULLY to the extraction port moulding.
- Page 10 Assembly Use a known 90° reference (square?) and check that the table is set square to the sanding disc. If it is not, reset the table until it is correct (See fig 8). Square Extraction Scale port moulding Fig 8 Fig 9b Index marker Slide the mitre fence into the tables ‘T’...
- Page 11 Assembly Remove the Fence Assembly Butterfly nut and M6 washer Base plate Fence Tower bracket Lower the concave bracket over the Lower the tower fixing bolt onto bracket over the the base plate. bolt, fit the M6 M6 washer washer. Index pointer Typ.
-
Page 12: Fitting The Fence Assembly
Assembly Fitting the workstop plate Locate the work stop plate for the linisher, and fit to the chassis using the M6 bolt, shake proof washer and M6 washer. (See fig 16). Fig 10 Fitting the Fence Assembly DISCONNECT THE MACHINE FROM THE MAINS SUPPLY Note: You will require a 14mm A/F spanner To fit the fence assembly requires that you remove the linishing belt to gain access. - Page 13 Fitting the Fence Assembly Fig 14 Fig 13 Remove the extraction port moulding by undoing the two Phillip screws (See fig 13) Release the belt tension by pressing the belt tension lever towards the drive drum end. (See fig 14) Belt tension lever Extraction port moulding Slide the belt off (See fig 15);...
-
Page 14: Specification
Specification Model AWEBDS46 MkII Product Code 501256 Rating Hobby Power 375W Belt Speed 517m/min Belt Size 100 x 915mm Diameter of Disc 150mm Table Size Belt 200mm x 110mm Table Size Disc 225mm x 155mm Dust Extraction Outlet 63mm Overall L x W x H... -
Page 15: Illustration And Parts Description
Illustration and Parts Description Guide fence assembly Linishing belt Fig 17 Linisher body Disc Chassis Mitre fence Locating slot On/Off switches Index marker Disc table Fig 18a Fig 18... - Page 16 Identification and Description of the Sander Belt tensioning The belt-tensioning device is a cranked lever; pivoted about halfway lever along its length on a pin set in the underside of the linisher chassis. A (See fig 19) spring is connected to the end of the cranked part of the lever, which pulls it towards the end of the chassis.
- Page 17 Illustration and Parts Description Fence Tracking adjuster Work stop plate Belt tensioning lever Fig 19 Star knob threaded bolt Drive belt cover Swivel mandrel Dust extraction port Star knob threaded bolt Scale Fig 20 Index marker...
- Page 18 Identification and Description of the Sander Disc table The support casting is the main support for the disc table. It has the support casting pivot spigot and a slotted quadrant which allows the table to be set to a (See fig 1) known angle.
- Page 19 Illustration and Parts Description Quadrant Lazy ‘Z’ Concave casting casting ‘T’ slot Fig 21 Fence Butterfly nut Vertical slot Belt tensioning lever Thumb screw Metal strap Tower bracket Scale Fig 22 Pointer...
- Page 20 Illustration and Parts Description Fig 23 Idler drum Star knobbed bolt Linisher body Yoke Cranked lever Spring Drive drum Linisher platen Fig 24 Air vents...
-
Page 21: Vertical Sanding
Vertical Sanding Raising the linisher to vertical If you require to raise the linishing table to the vertical using the 6mm Allen Key provided loosen the swivel mandrel caphead bolt (See fig 11). Raise the linisher table either to its vertical stops or to the position required &... -
Page 22: Changing The Sanding Belt
Changing the Sanding Belt DISCONNECT THE MACHINE FROM THE MAINS SUPPLY Slacken off the swivel mandrel-clamping bolt (See fig 11) then refer to “Fitting the Fence Assembly” to remove the necessary guards and covers. Release the belt tension by pressing the lever towards the drive drum (See fig 15) and slide the belt off the machine. -
Page 23: Changing The Sanding Disc
Changing the Sanding Disc DISCONNECT THE MACHINE FROM THE MAINS SUPPLY Lift the edge of the disc and, gripping firmly, peel the disc away from the plate; turning the plate as required to free the entire disc. Remove and throw away. If you have been extremely fortunate all the adhesive will have been removed with the disc. -
Page 24: Maintenance
Maintenance Fig 28 Drive belt Fig 29... -
Page 25: Parts Breakdown/List
Parts Breakdown/List... - Page 26 Parts Breakdown/List...
-
Page 27: Parts Breakdown/List 25
Parts Breakdown/List... - Page 28 Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local recycling centre and place into the appropriate recycling bin. Only for EU countries Do not dispose of electric tools together with household waste material.
