Axminster AW150BB Original Instructions Manual

Axminster AW150BB Original Instructions Manual

Buffing machine

Advertisement

Quick Links

Code 107683
Original Instructions
AW150BB 150mm
Buffing Machine
AT: 10/02/2022
BOOK VERSION: 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW150BB and is the answer not in the manual?

Questions and answers

Summary of Contents for Axminster AW150BB

  • Page 1 Code 107683 Original Instructions AW150BB 150mm Buffing Machine AT: 10/02/2022 BOOK VERSION: 03...
  • Page 2: Eu Declaration Of Conformity

    Exploded Diagrams/Lists 10-11 Wiring Diagram EU DECLARATION OF CONFORMITY Cert No: TLG-150BGB EU Declaration of Conformity This machine complies with the following directives: Axminster Tool Centre Ltd Axminster Devon EX13 5PH UK 2006/42/EC EN 61000-3-3: 2013+A1: 2019 axminstertools.com 2014/30EU EN 55014-2: 2015...
  • Page 3: What's Included

    WHAT’S INCLUDED Quantity Item Part Model Number AW150BB 150mm Buffing Machine Plate Washers Bushing Spacers 12.7mm (1/2 inch) Bore Buffing Mops Instruction Manual Fitted with a 3 pin UK plug HAVING UNPACKED YOUR BUFFING MACHINE, PLEASE DISPOSE OF ANY UNWANTED PACKAGING PROPERLY.
  • Page 4: General Instructions For 230V Machines

    GENERAL INSTRUCTIONS FOR 230V MACHINES The following will enable you to observe good working • Leave machine unplugged until work is about to practices, keep yourself and fellow workers safe and main- commence. • Always disconnect by pulling on the plug body tain your tools and equipment in good working order.
  • Page 5: Specification

    SPECIFICATION Code 107683 Model AW150BB Rating Workshop Power 370W 230V 50Hz Duty Cycle S1 250W Spindle Speed 2,980 rpm Weight 11 kg ASSEMBLY Step 1 Step 4 Step 2 Step 5 Step 3 Step 6 Replace the nut, remember left handed thread and tighten...
  • Page 6: Illustration And Parts Description

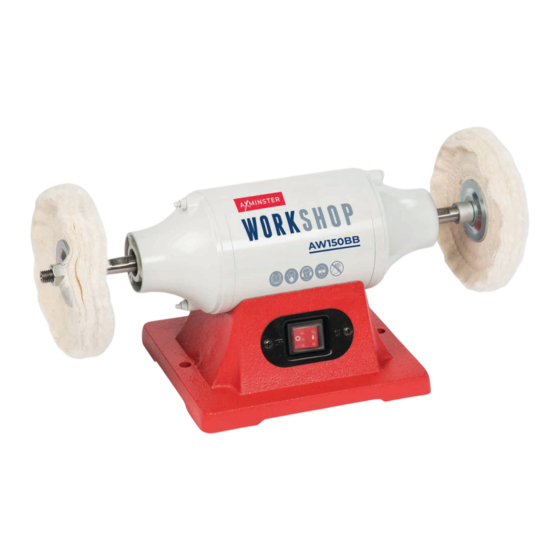

    ILLUSTRATION AND PARTS DESCRIPTION Plate washer Motor Buffing mop Bushing spacer Drive shaft Cast iron base Work bench securing holes ON/OFF switch...
  • Page 7 CHANGING THE BUFFING MOP Step 4 DISCONNECT THE BUFFING MACHINE FROM THE MAINS SUPPLY. Step 1 Remove any build up of debris around the drive shaft to leave a clean surface. Step 4 Hold the mop in place and undo and remove the nut in the direction of the buffing mop.
  • Page 8: Optional Accessories

    Flat Hard Wheel Polishing Mop Loose Code 105868 Code 105857 Polishing Mop Sisal Polishing Mop Stitched Code 105866 Code 105867 Axminster Craft Nylon Abrasive Wheels Nylon Fine Wheel Nylon Medium Wheel Nylon Coarse Wheel Code 105859 Code 105862 Code 105863...
  • Page 9 Honing Paste 250g Honing Paste 250g Code 103703 Code 103715 Code 103716 Axminster Acrylic Polish Axminster Yellow Polishing Axminster Blue Polishing Compound Compound Code 105761 Code 105924 Code 105921 Axminster Pink Polishing Compound Axminster Brown Polishing Axminster Buff Polishing Compound...
  • Page 10: Maintenance

    MAINTENANCE There is very little maintenance needed just keep an eye on the condition of polishing mops e.g. no torn or frayed edges that can cause the wheels to become unbalanced. Clean the buffing machine after use. EXPLODED DIAGRAMS/LISTS Description Specification Phillips Screw M6x20...
  • Page 11 EXPLODED DIAGRAMS/LISTS...
  • Page 12 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
