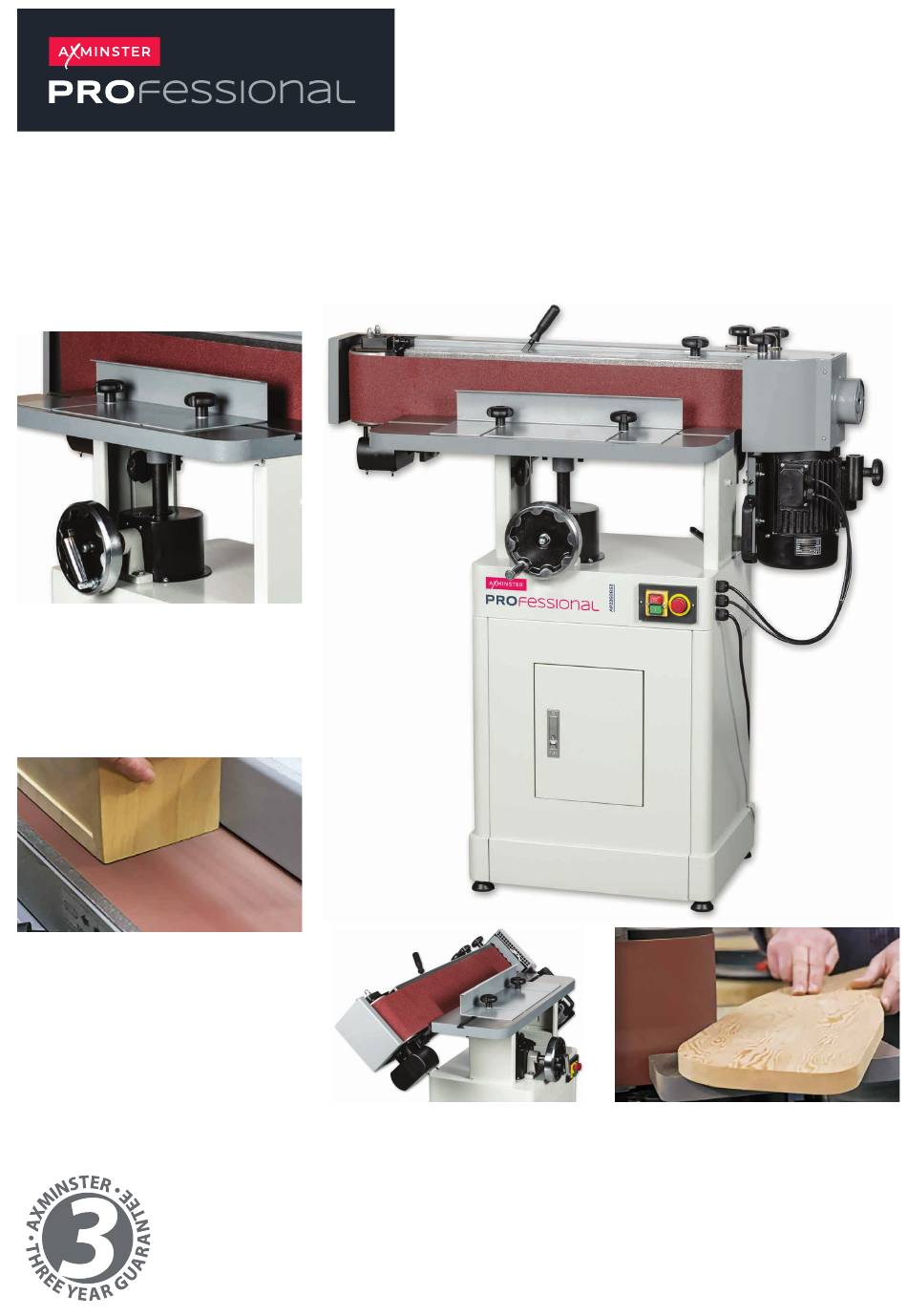

AP2260BS2
Belt Sander
Easy to use
The sanding belt oscillates for a With
rack & pinion table adjustment, it is
quick and easy to move the table to
where you need it.
Achieve professional
results
The sanding belt oscillates for a
scratch-free finish and longer
abrasive life.
Sand at any angle
The sanding belt oscillates for a
Whether you need to sand vertically,
horizontally or any angle in between,
this belt sander is the perfect choice!
Code 107708
Original Instructions
Need to carry out curved
work?
The sanding belt oscillates for a
Thanks to the small sanding table,
curved work is a breeze.
AT: 16/07/2021
BOOK VERSION: 06
Advertisement
Related Manuals for Axminster Professional AP2260BS2
Summary of Contents for Axminster Professional AP2260BS2
- Page 1 Code 107708 Original Instructions AP2260BS2 Belt Sander Easy to use The sanding belt oscillates for a With rack & pinion table adjustment, it is quick and easy to move the table to where you need it. Achieve professional results The sanding belt oscillates for a scratch-free finish and longer abrasive life.
- Page 2 Cert No: BS6X90-1 EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK axminstertools.com 2006/42/EC EN 61000-3-2:2014 2014/30/EU EN 61000-3-3:2013 declares that the machinery described:- EN 55014-1:2017 EN 55014-1:2006+A1+A2 EN 55014-2:2015...
- Page 3 Warnings 1. Read and understand the entire owner's manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3.
- Page 4 20. Keep visitors a safe distance from the work area. Keep children away. 21. Make your workshop child proof with padlocks, master switches or by removing starter keys. 22. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in serious injury.
- Page 5 Assembly Stand Assembly Referring to Figure 1: 1. Remove contents from shipping container. 2. Clean all rust protected surfaces with a mild solvent. Do not use paint or lacquer thinner, gasoline, or mineral spirits; these will damage painted surfaces. 3. Attach the four rubber pads (A) to the bottoms of the side panels (C) with four each hex nuts (B).
- Page 6 Referring to Figure 3: 4. The sanding platen (A) is presently in the horizontal position. Pull lock handle (B) forward to unlock the platen assembly. 5. Tilt sanding platen to the vertical position (C), which will look like D in Fig. 4; then push the lock handle (B) to lock the platen assembly in place.
- Page 7 Extension Table Referring to Figure 7: 1. Attach the bracket (E) for the extension table to the side of the motor housing (D) and secure with two socket head cap screws (F). 2. Slide the shaft of the extension table (C) into the bracket (E), positioning the table so the opening (B) wraps around the drive drum (A).
- Page 8 Extension Cords Recommended Extension Cord Gauges Make sure your extension cord is in good Extension Cord Length in Feet * condition. When using an extension cord, be sure Amps to use one heavy enough to carry the current your machine will draw. An undersized cord will cause <...
- Page 9 Changing the Sanding Belt Referring to Figure 12: 1. Disconnect the machine from the power source. 2. Lock the sanding platen in the vertical position (see the Sanding Platen Angle Adjustment section on page 12). 3. Release tension on the belt by loosening the handle (C).
- Page 10 Motor Mount Tracking Adjustment Referring to Figure 14: This machine comes with tracking adjustment bolts (A) on the motor plate. These are set at the factory and should not require any further adjustment. If, however, you are not able to track the belt with the Belt Tracking Adjustment described in the previous section, the motor mount bolts will have to be adjusted.
- Page 12 Contour Sanding Referring to Figure 19: Contour sanding is done from the extension table mounted on the motor where the sanding belt wraps around the drive drum (D). To set up the sander for contour sanding: 1. Loosen the two lock knobs (C) that secure the drum guard &...
- Page 13 Troubleshooting Operating Problems Trouble Possible Cause Solution Sander unplugged from Check all plug connections wall or motor Sander will not start Fuse blown or circuit Replace fuse or reset circuit breaker breaker tripped Cord damaged Replace cord Extension cord too light Replace with adequate size and length or too long cord (see Recommended Extension...
- Page 15 Parts List NO. DESCRIPTION Q'TY NO. DESCRIPTION Q'TY BELT TENSION ARM TENSION ARM HANDLE FRONT PANEL(W/DOOR) LOCK NUT DOOR TENSION BAR LATCH ASSEMBLY SPRING SIDE PANEL ROUND HEAD SLOTTED MACHINE SCREW REAR PANEL LOCK WASHER SHELF FLAT WASHER HEX CAP SCREW BEARING HOUSING FLAT WASHER BALL BEARING...
- Page 18 Wiring Diagram . 220-240 Volt, 50Hz, 1 Phase SWITCH . 380-415 Volt, 50Hz, 3 Phase SWITCH . 110-120 Volt, 60Hz, 1 Phase or 220-240 Volt, 60Hz, 1 Phase LOCK SWITCH...
- Page 19 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
