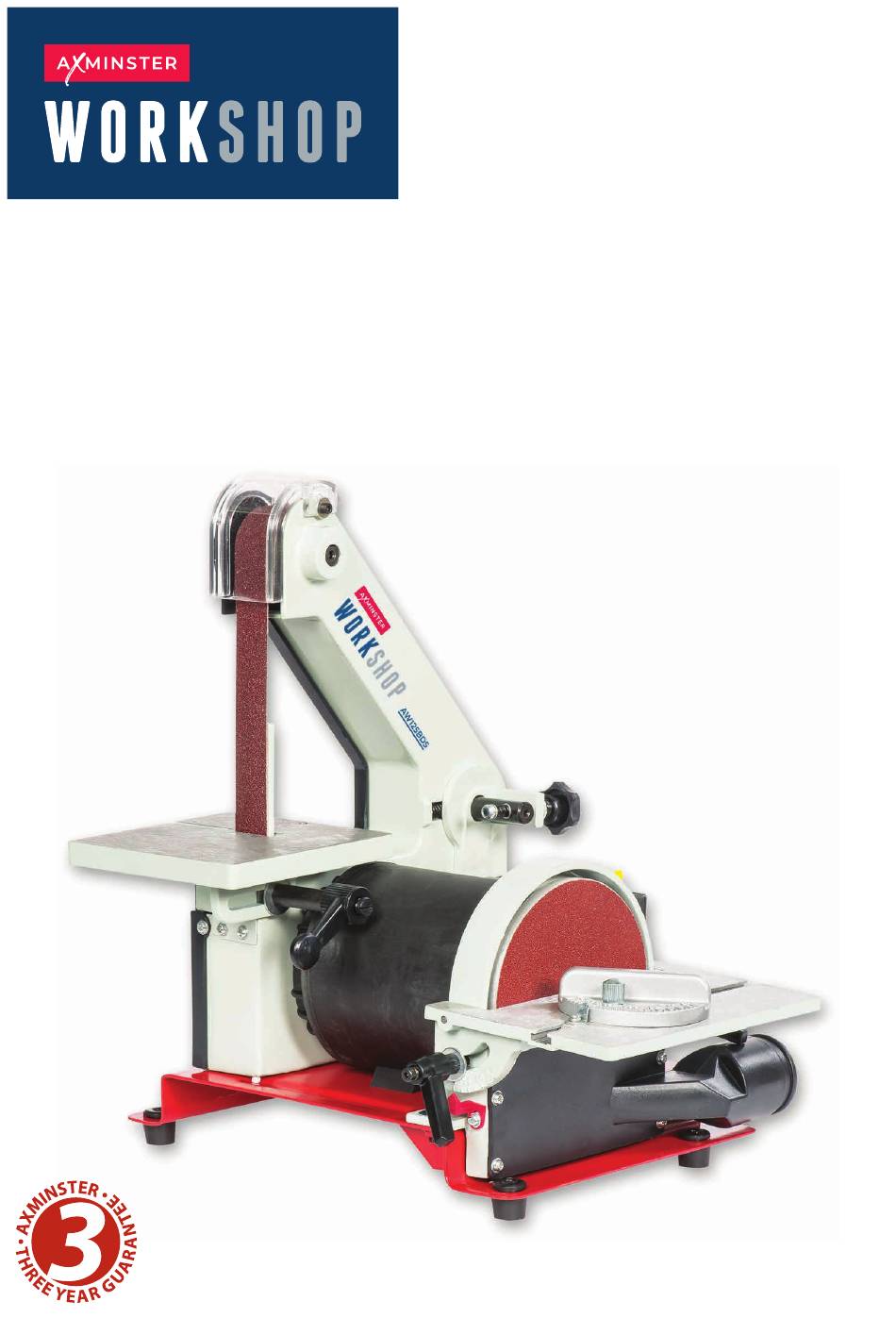

- Page 1 Code 107677 Original Instructions AW125BDS Mini Belt & Disc Sander AT: 09/02/2022 BOOK VERSION: 02...
-
Page 2: Eu Declaration Of Conformity
Trouble Shooting Exploded Diagrams/Lists 16-17-18 Wiring Diagram EU Declaration of Conformity Cert No: MM411 EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK axminstertools.com 2006/42/EC EN ISO 12100:2010 2006/95/EC declares that the machinery described:- 06/42/EC - Annex I/05.2006... -
Page 3: What's Included
What’s Included Quantity Item Part AW125BDS Mini Belt and Disc Sander (Sanding Disc & Belt Assembled) Dust Extraction Moulding Sanding Disc Cast Iron Table Sanding Belt Cast Iron Table Bag 1 Containing: Mitre Fence Rubber Feet M8 x 20mm Large Lift and Shift Handle M6 x 15mm Small Lift and Shift Handles M8 Washer M6 Washer... -
Page 4: General Instructions For 230V Machines
General Instructions for 230V Machines The following will enable you to observe good working • Leave machine unplugged until work is about to practices, keep yourself and fellow workers safe and commence. • Always disconnect by pulling on the plug body maintain your tools and equipment in good working order. -
Page 5: Specification
Specific to Sanding Machines DO NOT sand very small pieces of work with bare hands; Always offer the workpiece to the belt/disc so that the try to construct some form of holder. motion carries the work against the restraining surface i.e. the work stop or the table (use the left hand side of the Make sure you are comfortable before you start work, disc). - Page 6 Assembly Rubber Feet and Sanding Belt Table Locate the four rubber feet (F); turn the belt and disc sander (A) on it’s side and insert a rubber foot into each of the four pre-drilled holes in the base plate (See fig 1). Stand the sander upright. Fig 1.
- Page 7 Assembly Dust Extraction Moulding Fig 5. Fig 6. Remove the four Phillips screws (K) and place safely aside Dust extraction moulding (B) assembled Using a Phillips screwdriver remove the four M4 x 10mm pan head Phillips screws and washers (K), place safely aside (See fig 5).
- Page 8 Assembly Fig 11. ‘T’ slot Fig 12. Slide the mitre fence (E) into the table ‘T’ slot Locate the mitre fence (E) and slot it into the table (C) ‘T’ slot (See figs 11-12). Setting Up Table Adjustment Place a 90° square on the sanding disc table (C) and check NOTE: BEFORE USING YOUR BELT that the table is perpendicular to the sanding disc.
- Page 9 Setting Up Fig 17. Fig 18. Adjust the table (D) until it is perpendicular to the belt 90° Square perpendicular to sanding belt Place the square on the table (D), up against the belt; NOTE: For fine adjustments adjust the check that the table is perpendicular to the sanding belt.
- Page 10 Setting Up Fig 23. Fig 24. With the cover (d) removed, turn the tracking knob (e) Fig 25. clockwise to track the belt to the right or anti-clockwise for left, until the belt is tracking evenly (See figs 25-26). Replace the cover (d) as described above but in reverse. NOTE: DO NOT TURN THE TRACKING KNOB TOO Fig 26.
-
Page 11: Sanding Configurations
Setting Up the sander and go to page 9 for “Tracking the Belt”. Reconnect, switch on and check again. If everything is CONNECT THE SANDER TO THE fine, switch off and wait until the machine has come to a MAINS SUPPLY complete stop. -
Page 12: Illustration And Parts Description
Illustration and Parts Description Belt guard Abrasive Belt Platen Tracking Knob ON/OFF Control box Abrasive disc Scale Pointer Scale Pointer Pointer rest screw Pointer rest screw A) AW125BDS Belt and Disc Sander E) Mitre Fence B) Dust Extraction Moulding F) Rubber Feet C) Sanding Disc Cast Iron Table G) M8 x 20mm Large Lift &... - Page 13 Illustration and Parts Description Belt Access Cover Clamping Knob Disc Guard Platen Dust extraction outlet Chassis Dust extraction outlet On/Off Control Box Grub screw for levelling the table...
-
Page 14: Changing The Abrasive Belt/Disc
Changing the Abrasive Belt/Disc Sanding Belt Check the new belt for any signs of damage; fit the new belt by sliding it through the table (D) cutout and fit it over DISCONNECT THE SANDER FROM the three pulleys then release the tracking knob, putting THE MAINS SUPPLY tension back on. -
Page 15: Maintenance
1. Defective or broken “ON -OFF” 1-3. Replace all broken or defective switch parts before using the sander 2. Defective or damaged switch cord 4. Contact Axminster Tools on 03332 406406 and asked to be 3. Defective or damaged switch relay transferred to the “Technical Support”... - Page 16 Exploded Diagrams/Lists...
- Page 17 Exploded Diagrams/Lists...
- Page 18 Exploded Diagrams/Lists Part Description Part Description Knob Handle Cover Spring Label Screw Warning Screw Motor Retaining Ring Screw Bearing Washer Driven Wheel Screw Shaft Washer Belt Guard Pointer Washer Cover Screw Screw Screw Disc Pulley Sander Machine Body Knob Adjustable Shaft Washer Spring Mitre Gauge...
-
Page 19: Wiring Diagram
Wiring Diagram... - Page 20 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
