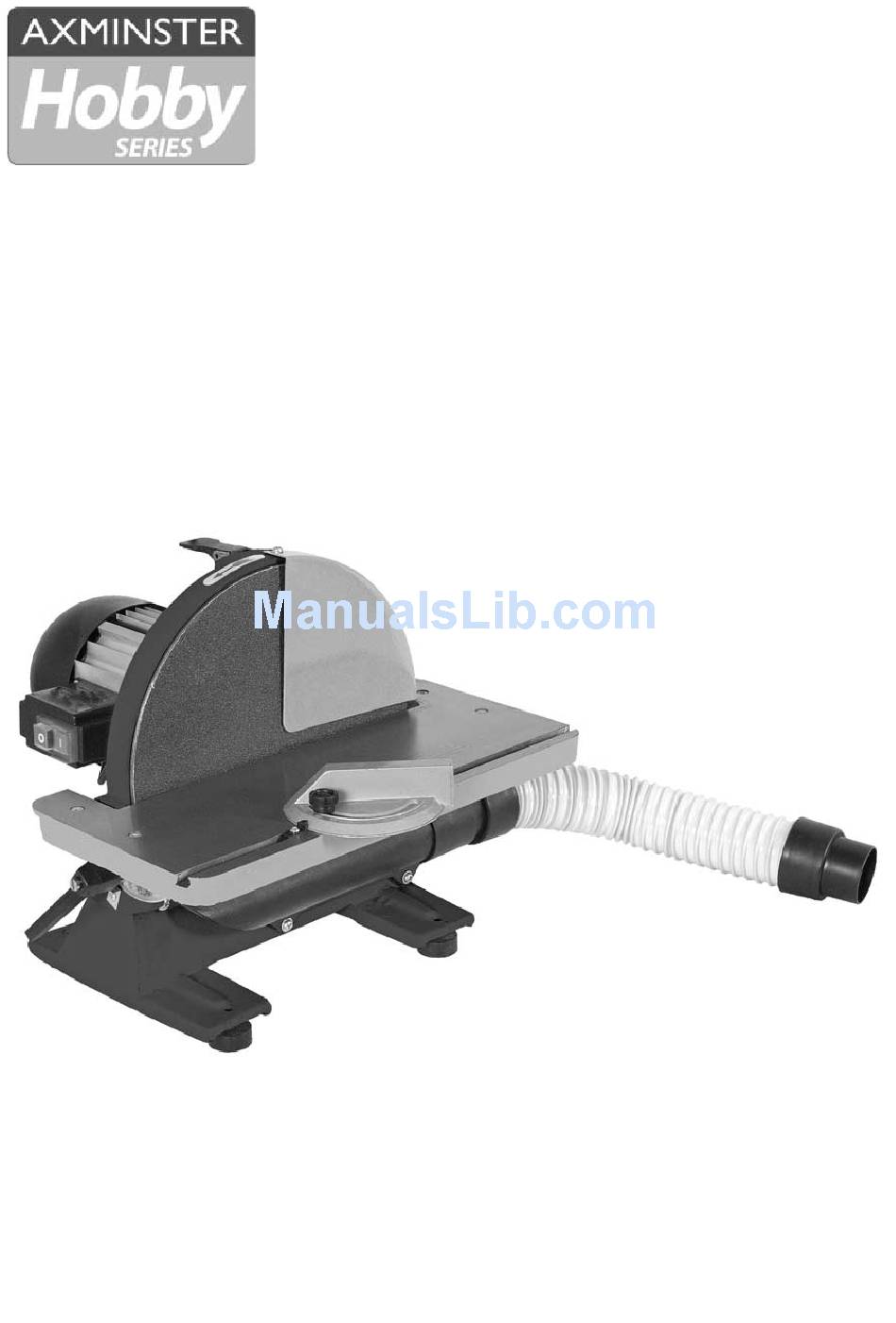

- Page 1 Code 501260 AWDS12H 300mm Disc Sander Axminster Tool Centre, Unit 10 Weycroft Avenue, Axminster, Devon EX13 5PH axminster.co.uk...
-
Page 2: Table Of Contents
Index of Contents Page No Index of Contents Declaration of Conformity What’s in the Box General Instructions for 230V Machines Specific to Sanding Machines 05-06 Assembly 07-08-09-10 Specifications Parts Illustraction & Description Changing the Sanding Disc Maintenance Illustrated Parts Breakdown Illustrated Parts List Notes Declaration of Conformity... -
Page 3: What's In The Box
What’s in the Box Model Number DS12 Box Containing: 1 No. 300mm Disc Sander (Sanding Disc & Table Fitting) 1 No. Flexible Extraction Hose. Bag 1 Containing: 1 No. Extraction Hose Dust Bag Bag 2 Containing: 2 No. Moulded Lift & Shift Locking Handles 1 No. -
Page 4: General Instructions For 230V Machines
General Instructions for 230V Machines Good Working Practices/Safety The following suggestions will enable you to observe good working practices, keep yourself and fellow workers safe and maintain your tools and equipment in good working order. KEEP TOOLS AND EQUIPMENT OUT WARNING! OF THE REACH OF YOUNG CHILDREN Mains Powered Tools (General) /Disc &... -
Page 5: Specific To Sanding Machines
Specific to Sanding Machines WARNING! THE SANDING DISC CANNOT BE DECLUTCHED FROM THE BELT AND VICE VERSA, BOTH FUNCTIONS ARE ACTIVE WHEN THE MACHINE IS RUNNING. REMEMBER THIS, AND DO NOT LEAVE LOOSE OBJECTS OF ANY DESCRIPTION, ON THE MACHINE IF IT IS GOING TO BE USED. Once the sander is mounted, carry out any setting operations, (mitre, tilt..?), and remove all tools used in the setting operations (if any) and place safely out of the way. -
Page 6: Specific To Sanding Machines
Specific to Sanding Machines CHECK that the belts or discs are undamaged; torn edges can pick up on the workpiece and will cause the medium to tear, often very rapidly with accompanying sharp flapping edges. ALWAYS offer the workpiece to the belt/disc so that the motion carries the work against the restraining surface, (i.e. - Page 7 Assembly In order to reduce the footprint of the machine for packaging, several items are dismounted from the machine and need to be re-affixed. Locate the two moulded locking handles and the two spring/screws, insert the handles over the table swivel studs one on either side of the table (See fig 1). Fig 1 Swivel stud Moulded locking handle...
- Page 8 Assembly Screwdriver Fig 3 DO NOT OVERTIGHTEN! Lift the table until the scale pointer reads 90˚degrees on the scale, place a 90˚ degrees square on top of the table and adjust until both table and sanding disc are at 90˚ degrees, then clamp the table in position by pulling the locking handles down.
- Page 9 Assembly Locate the mitre fence and slide it into the “T” slot machined into the table. (See fig 5) Mitre fence Fig 5 “T” slot Locate the flexible extraction hose and fit one end of the hose over the dust extraction outlet, push firmly home.
-
Page 10: Specifications
Assembly Jubilee clip Fig 7 Dust bag Specification Model AWDS12H Product Code 501260 Rating Hobby Power 750W Speed 1,420rpm Diameter of Disc 300mm Table Size 445 x 155mm Table Tilt 45° Dust Extraction Outlet 63mm Overall L x W x H... -
Page 11: Parts Illustraction & Description
Parts Illustraction & Description PUSH DOWN Motor Disc brake On/Off switch Disc guard Sanding disc Sanding table Mitre fence Flexible extraction hose Rubber feet Table locking handle... -
Page 12: Changing The Sanding Disc
Changing the Sanding Disc DISCONNECT THE MACHINE FROM THE MAINS SUPPLY 1) Remove the sanding disc guard by removing the two Phillips screws on top of the guard. 2) Remove the two locking handles on either side of the sander. 3) Remove the swivel studs and lift the table away. -
Page 13: Illustrated Parts Breakdown
Illustrated Parts Breakdown... -
Page 14: Illustrated Parts List
Illustrated Parts List... -
Page 15: Notes
Notes... - Page 16 Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local recycling centre and place into the appropriate recycling bin. Only for EU countries Do not dispose of electric tools together with household waste material.
