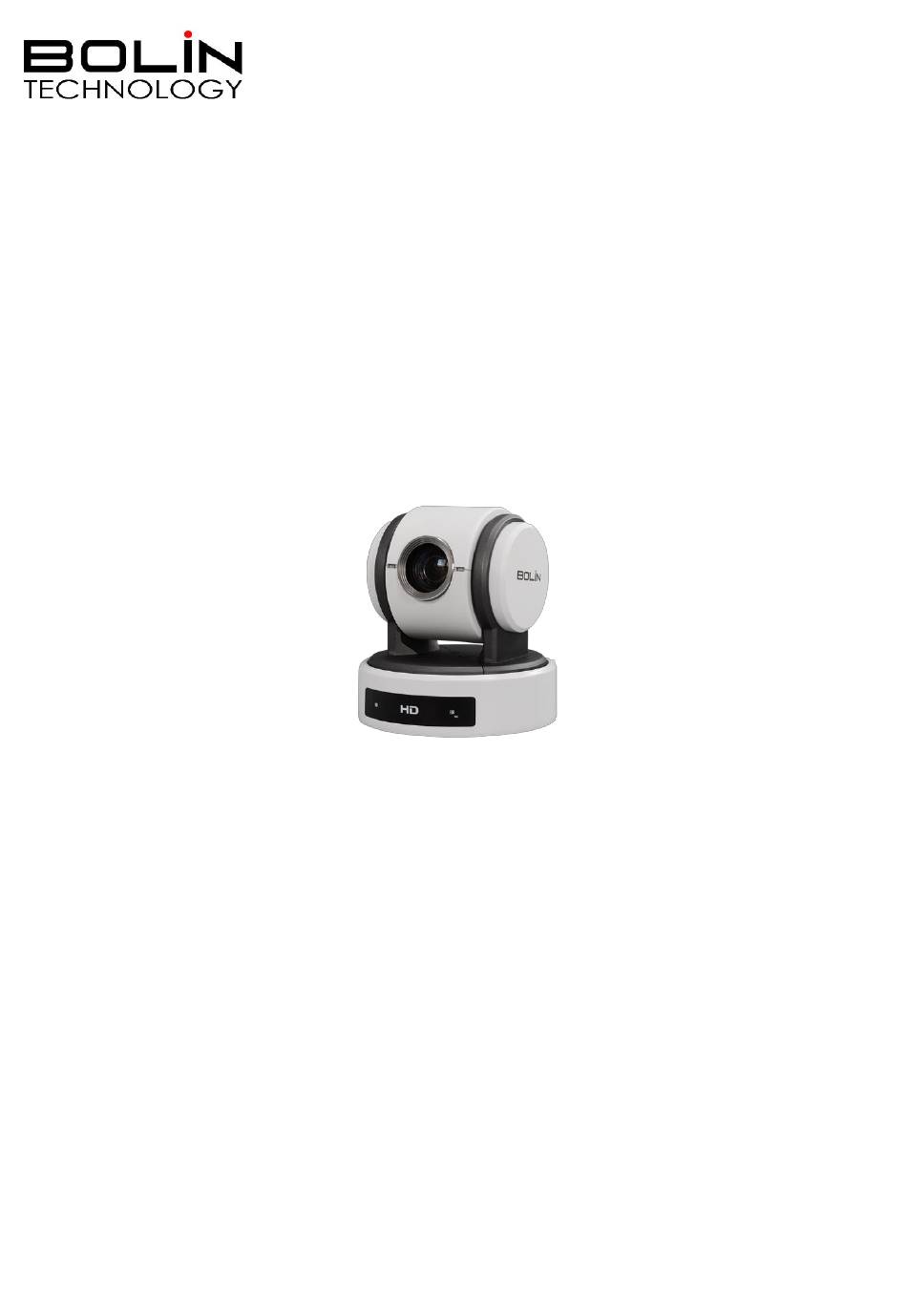

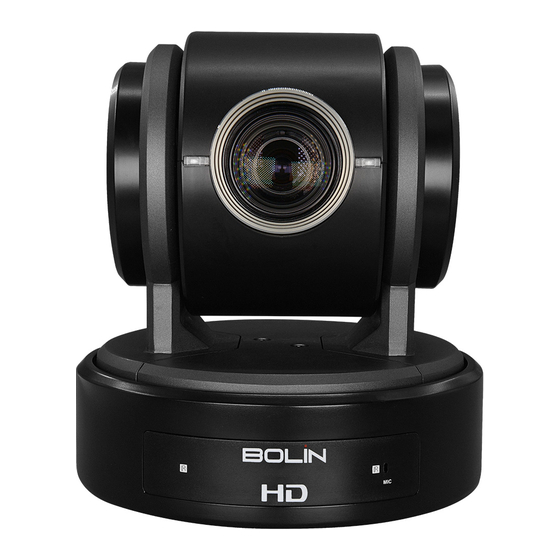

- Page 1 2 Series HD SDI+IP Dual Output USB PTZ Camera USER MANUAL VERSION: VCC-2HD-M-05022020 VCC-M2H5BI-4FN1 VCC-M2H10BI-4FN1 © 2020 Bolin Technology...
-
Page 2: Table Of Contents
Contents IMPORTANT INFORMATION ..............................3 WHAT’S IN THE BOX ................................6 OVERVIEW .................................... 7 CAMERA DIAGRAMS ................................8 ..................................9 EMOTE ONTROLLER SYSTEM CONFIGURATION ..............................10 ..................................11 BTAIN IDEO IGNAL IN / OUT .................................... 14 UDIO CAMERA CONTROL METHODS AND SYSTEM CONFIGURATIONS ................... 15 ............................ -
Page 3: Important Information
Before operating the unit, please read this manual thoroughly and retain it for future reference. Copyright Copyright 2015-2018 Bolin Technology all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company. - Page 4 Best effort has been made to verify the integrity and correctness of the contents in this document, but no statement, information, or recommendation in this manual shall constitute formal guarantee of any kind, expressed or implied. We shall not be held responsible for any technical or typographical errors in this manual.
- Page 5 using anti-static gloves or an oil-free cloth. If the grease or the stain still cannot be removed, use anti-static gloves or an oil-free cloth dipped with detergent and clean the glass surface gently until it is removed. • Do not use organic solvents, such as benzene or ethanol when cleaning the front glass surface. Regulatory Compliance FCC Part 15 This equipment has been tested and found to comply with the limits for digital device, pursuant to part 15 of the FCC...
-
Page 6: What's In The Box
WHAT’S IN THE BOX Note: The camera color may be in white or black per the item that is purchased. Accessories (Optional) -
Page 7: Overview
Overview This user guide is suitable for the following models: VCC-M2H5BI-4FN1 VCC-M2H10BI-4FN1 Features • Resolution: Up to 1080P60, 1080i59.94 • IP Resolution: Up to 1080P60, 1080P30 • USB Resolution: Up to 1080p30 adaptive • Zoom: Optical 5X, 10X • Video Output: HDMI, 3G-SDI, IP, USB2.0 simultaneous •... -
Page 8: Camera Diagrams
Camera Diagrams 1. 12V DC Power Port Connect the supplied DC power adaptor and cord. 2. IP Network RJ45 Port For VISCA over IP control and IP video streaming, with POE+(IEEE802.3at). 3. HDMI Port (HDMI 1.4) 4. 3G-SDI Video Output 5. -
Page 9: Remote Controller
Remote Controller 1. Power • Power ON the camera to turn the camera in operation status. • Power OFF the camera to turn the camera in standby status. • When the camera is powered OFF, the camera turns to the back and would be on standby mode. •... -
Page 10: System Configuration
System Configuration Connection In this connection configuration, HDMI cable, SDI video cable, data cable, Network cable is required. To obtain these third- party components or accessories, Power • Use only the DC power adaptor (JEITA type4) supplied with the unit. Do not use any other DC power adaptor. -
Page 11: Obtain Video Signal
Conductor: Stranding Material Nominal Diameter Solid Bare Copper 0.04 in. Shield Material Type Layer Material Coverage Tape Aluminum / Polyester / Aluminum 100% Braid Tinned Copper Nom. Capacitance Nom. Inductance Nom. Char. Impedance Conductor to shield 16.2 pF/ft 0.106 µH/ft 75 Ohm Obtain Video Signal The camera can simultaneously have SDI video output and HDMI video output and IP video output. - Page 12 USB2.0 Video Signal 1. Install video client software on the computer that you want to use the camera on. 2. Use the USB cable to connect the camera to the computer. Connect the power adapter to the camera and the power outlet. 3.
- Page 13 ⚫ When the camera setting HDMI video format at 1080P50/1080P25/750P50, USB2.0 resolution with frame rate are available as following list. HDMI FORMAT USB2.0 Frame Rate Resolution 1080P50/1080P25/720P50 1920x1080 1280x720 25P/10P 1024x768 960x540 850x480 800x600 768x448 720x576 720x540 720x480 720x404 640x480 640x360 50P/25P/10P 352x288...
-
Page 14: Audio In / Out
Camera Initial setting status Information Information of the camera initial setting status will display for 5 seconds. Camera Status Info Display 1. Camera PELCO ID for RS-485 control PELCO ID 2. Camera ID for IR Remote Controller IR ID 3. IR remote control signal receive current setting IR-RECEIVE 4. -
Page 15: Camera Control Methods And System Configurations
Camera Control Methods and System Configurations This unit has multiple ways of controlling the camera and various system configuration capabilities using optional products. This section describes the ways of controlling and typical system examples with the required components and usage of each system. 1. - Page 16 RS232 Connection Set RS232 control method on Bottom Dip Switch. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. Set specific camera address that you want to control the camera for on Bottom Dip Switch. If you want to have the camera address to be automatically assigned by VISCA controller, set camera Dip Switch address to Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly.
-
Page 17: Use Rs-422(Visca) / Rs485 (Pelco P/D)
Use RS-422(VISCA) / RS485 (PELCO P/D) You can use RS-422/485 port connect to optional controllers, such as joystick control keyboard, control PC station, to operate the camera. To perform pan/tilt and zoom operations using the joystick of the control keyboard, and to perform the Preset operation using the control buttons. - Page 18 VISCA (Non-Sony) Keyboard RS422 Connection 11. Use extension cables RJ45 to RS422 Phoenix connecter adaptor included to make RS422 connection for your control device. 12. Or you can use CAT5/6 T-568B Standard Ethernet cable direct connect between the camera and the controller to make RS422 connection by following the pin definition below: 13.
-
Page 19: Pelco P/D Keyboard Rs485 Connection
PELCO P/D Keyboard RS485 Connection • Set RS422 control method on Bottom Dip Switch. • Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. • Set the camera ID on OSD menu by remote controller •... - Page 20 • Or you can use CAT5/6 T-568B Standard Ethernet cable direct connect between the camera and the controller to make RS485 connection by following the pin definition below: • How to make RS485 multiple cameras connection with RS485 standard serial port controller: Note For RS-232 VISCA control, this unit supports daisy chain connection for using multiple cameras.
-
Page 21: How To Make The Connection With Bolin Products
• Using RS-485 (PELCO), all camera addresses must be set up before the connection. You can set the camera address by operating OSD menu, or by setting the Dip Switch on the bottom of the camera. In this case, you can use multiple control keyboards. -
Page 22: Dip Switch Settings
Controlling via VISCA over IP • Connect the network port on the camera to the network switch. • Set the IP address and other network information appropriately to communicate on your network • Connect the VISCA over IP-compatible controller to the network •... - Page 23 Address 1 (Default) 2. Video Output/Video Color Space When using HDMI output to display on HDMI device, set the Dip switch B4 to OFF. When using HDMI to DVI convertor to have DVI video output, set the Dip switch B4 to ON. Color Space Setting 3.
- Page 24 SW2: Factory Default Setting: OFF, OFF, OFF, ON, OFF, OFF, OFF, OFF Bit 1~4: Video resolution setting Bit5~6: Reserve Bit7~8: IR remote controller ID setting 1. Video Resolution Setting Video Resolution 1080i59.94 1080p29.97 720p59.94 1080p59.94 Empty 1080i60 1080p30 1080p60 1080i50 1080p25 720p50 1080p50...
-
Page 25: Adjusting And Setting With Menus
2. IR Remote Controller ID Setting IR Remote Controller ID Adjusting and Setting with Menus About On-Screen Menus You can change various settings, such as shooting conditions and system setup of the camera, while observing menus displayed on a connected computer screen. This section explains how to read the on-screen menus before starting menu operations. -
Page 26: Exposure Menu
Control Button You can select the item by pressing “↑, ↓, ←, →” and HOME button. 1. You can select a menu item by “↑, ↓” button on the infrared remote controller. The selected item is shown by the cursor (Color change). You can change the value of the item by pressing “←, →” button. 2. -
Page 27: White Balance Menu
720P60, Speed can be selected from the following: 1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10K. IRIS: Select the iris the following: CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.6 EX-COMP: (Exposure Compensation) When MODE is set to one of FULL AUTO, SHUTTER PRI or IRIS PRI, set this item to ON to enable exposure compensation. -
Page 28: Picture Menu
OUTDOOR AUTO: This is an auto white balance mode specifically WHITE BALANCE MENU for outdoors. It allows you to capture images with natural white WB MODE OUTDOOR AUTO balance in the morning and evening. PICTURE Menu PICTURE MENU SHARPNESS EXPOSURE EFFECT WHITE BALANCE SHARPNESS:... -
Page 29: System Menu
PRESET SPEED: Set preset speed value from 0 to 5 to change the preset speed. PAN DIR: Camera horizontal Left and right orientation setting, option: Normal/Invert TILT DIR: Camera tilt up and down orientation setting, option: Normal/Invert SYSTEM Menu PELCO ID When using RS485 (PELCO P/D) control, Set Camera ID to the address that you want to control to. -
Page 30: Upgrading Mcu Firmware
The firmware upgrade process is intended to be performed under the supervision of a BOLIN-Authorized repair technician. For assistance with this, please contact your authorized BOLIN Technology dealer, installer, or integrator. BOLIN Technology Technical Support can also be reached for assistance with this process. -
Page 31: Operating Multiple Cameras With The Infrared Remote Controller
To reset the setting To reset the setting, press the 1 (STD) button while holding down the L/R DIRECTION SET button. Arrow button Movement of the Setting camera While holding down Press Note The above setting only changes the signal emitted from the infrared remote controller, and does not change the setting of the camera itself. -
Page 32: Storing The Camera Settings In Memory - The Presetting Feature
When you shoot a subject with a light source behind it, the subject becomes dark. In such a case, press the BACK LIGHT button. To cancel the function, press the BACK LIGHT button again. Note The BACK LIGHT function is effective if MODE is set to FULL AUTO in the EXPOSURE menu of the camera. Storing the Camera Settings in Memory —... -
Page 33: Menu Configuration
Recalling the stored settings Press any of the POSITION buttons, 1] to [6], in which you have stored the settings. Cancelling the preset memory While holding down the RESET button, press the POSITION button from which you want to cancel the settings. Notes •... -
Page 34: Dimension
SDI Menu Configuration Menu EXPOSURE MODE FULL AUTO SLOW SHUTTER ON, OFF MANUAL GAIN 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28 Db 1/1, 1/2,1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, SPEED 1/4000, 1/6000, 1/10K sec... - Page 36 2082 TECHNOLOGY LLC BOLIN TECHNOLOGY...
