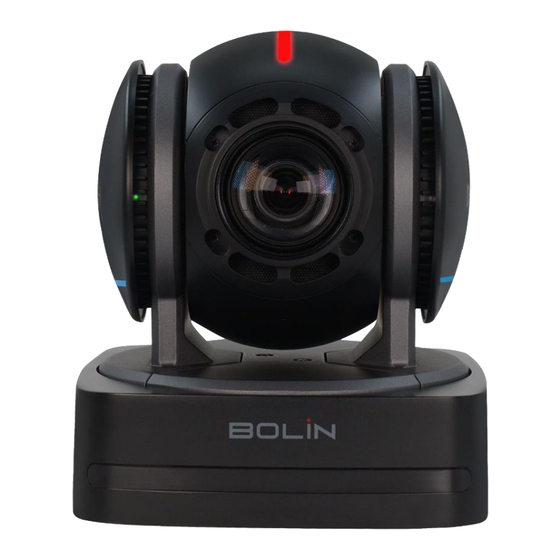

D2-210H & D2-220H PTZ Cameras What’s in the Box? Thank you for purchasing your Bolin Dante AV-H™ camera. If you have any questions regarding the camera, please contact your authorized dealer. Our website also offers a support page and user stories to inspire you and get the most out of your Bolin camera What’s in the Box? IR Remote Control x1...
Page 3
D2-210H Camera Overview 3.5mm audio input DC12V Power input USB2.0 HDMI 1.4 Port RS232/RS422/4 85 Control port LAN/PoE + Ethernet port USB 2.0 Type C Audio / Video IP streaming Note: The D2-210H can be powered using the included power supply adapter, an Ethernet Switch with PoE+ support or PoE+ device.
Page 4
D2-220H Camera Overview 3G SDI DC12V Power input USB2.0 HDMI 1.4 Port RS232/RS422/485 Control port LAN/PoE + Ethernet port USB 2.0 Type C Audio / Video IP streaming Note: The D2-220H can be powered using the included power supply adapter, an Ethernet Switch with PoE+ support or PoE+ device. The D2-220H does not have a 3.5mm audio input connection.
Suggested Accessories Display Monitor with HDMI Celling mounting kit Port or SDI connection if Wall mounting kit using the D2-220H camera Bolin Controller HDMI 1.4 or 2.0 cable Cat5e or Cat6 Network 3G-SDI cable (For display Monitor) Cable (for Controller) (For D2-220H)
Page 6
Required Accessories for Setup 1Gbps | PoE+ Network Switch Mac or Windows Computer* with Ethernet connectivity port (1000 Mbps) to run Dante Controller™ HDMI 1.4 or 2.0 cable Cat6 Network Cables (If using display Monitor) *Note: Dante AV-H video can be viewed using Dante Studio™ for Windows or using a Dante AV-H™...
Software Installation ❖ Required software from Audinate: Download and install Dante Controller from Audinate’s website on your PC (Mac or Windows) https://my.audinate.com/support/downloads/dante-controller Dante Controller software from Audinate allows you to route and configure. networked audio and video Dante devices, rename devices, change sample rate, and clock settings, customize the receive latency and more.
Page 8
Camera Power & HDMI Output Setup Video Connection Power Connection Display Monitor DC 12V HDMI Cable Powe4r Connection HDMI 1.4 D2-210H & 220H PTZ Cameras Note: After connecting the DC power, the camera will automatically turn, tilt, and scan its range.
Page 9
D2-220H Camera Power & SDI Output Setup Video Connection Power Connection Display Monitor DC 12V Powe4r 3G SDI Cable SDI Connector D2- 220H PTZ Camera...
Page 10
Basic IR Remote Functions IR Remote Control IR ID # and Menu Selection (OSD) Push the selected # on the camera IR ID section (up to 3 cameras can be controlled using the IR remote control based on SW2 Dip Switch setting) Press the Menu button and use the position functions of the IR remote to control the camera.
Page 11
OSD Settings Options Overview Page 1 MODE FULL AUTO GAIN MODE MANUAL SPEED EXPOSURE IRIS MODE SHUTTER PRI MODE IRIS PRI MODE BRIGHT LEVEL OFF/ON EX.COMP LEVEL AUTO WB MODE INDOOR WB MODE OUTDOOR WB MODE OPW WHITE BALANCE WB MODE ATW R GAIN WB MODE USER B GAIN...
Page 12
Page 2 DIGITAL ZOOM ZOOM RATIO OSD VIDEO PARAMETERS OSD ADAPTIVE PT PAN TILT ZOOM MF SPEED P/T SPEED PRESET SPEED PAN DIR TILT DIR PELCO ID IR RECEIVE DISPLAY INFO AUDIO PRESET MEMORY SYSTEM PERESET SETTINGS MOTIONLESS PRESET FACTORY SETTINGS RELOAD PRESET VIDEO FMT PELCO ID...
Page 13
Camera Power Using a PoE+ Switch D2-210H or D2-220H PTZ camera Display Monitor 1Gbps PoE+ Network Switch HDMI cable direct to display monitor Cat6 Network Cable Dante AV™ PoE+ Ethernet port Network Switch Requirements: Standard non-green 1 Gbps switch with PoE +...
Page 14
Camera | Dante Controller Connection D2-210H or D2-220H PTZ camera 1Gbps PoE+ Network Switch Network Cables Click on the “Choose a Dante Interface” icon” Select the network interface that the Dante Open Dante Controller Controller will use to on your PC communicate with other Dante devices.
Page 15
Camera to Dante Studio™ Connection Select the network interface use to communicate with your Bolin camera. Open Dante Studio™ on your PC Set the Receiver to H.264/AVC Make a subscription: TX: Bolin Camera under Decoder to RX Dante Studio™ Video Channel Icon Channel Subscription Icon Open Dante Video Viewer to view (bundled with Dante Studio™)
Page 16
Dante Studio™ to OBS Studio Setup Make sure a subscription has been made between your Bolin camera (TX) and Dante Studio™(RX) Open OBS Studio and click on: Video Capture > Properties. Open Broadcast Software (OBS) is free and open source for video recording and live streaming: OBS Software...
Page 17
Dante Studio™ to Setup Make sure a subscription has been made between your Bolin camera (TX) and Dante Studio™(RX) Video Communications Inc software is a popular application used for video conferencing. Open Zoom and under Start/ Stop Video, select Dante Studio™.
Page 18
Video Format & IR ID Settings Note: Any DIP Switch changes should be done with the camera turned off. D2-210H / 220H camera bottom view You can use SW2 B2 though B4 to set the video format of the camera. The video format can also be changed using the OSD menu (last setting will prevail).
Page 19
Dante AV-H™ Streaming Workflow Example D2-210H or D2-220H PTZ camera Display Monitor 4K Display Monitor HDMI / SDI cable direct to display monitor Bolin D20S Transceiver Set to Decoder in this example. 1Gbps PoE++ Network Switch Bolin D412 PTZ camera Network Cables IR control of D412 PTZ camera via...
