The OPEN limit is when the operator is extended and the gate is in the closed position.
IMPORTANT
ONLY THE OPERATOR ARMS' EXTENDED LIMIT IS ADJUSTABLE AND CAN BE SET WITH THE CONTROL
BOARD. THE ARMS' RETRACTED POSITION IS FIXED AND IS NOT ELECTRONICALLY ADJUSTABLE.
THE CLOSED POSITION IS SET BY HARDWARE MOUNTING ONLY. Please refer to the hardware installation to
make sure the retracted position is properly set/installed.
Installation Type
Push-To-Open
TURN THE CONTROL BOX ON

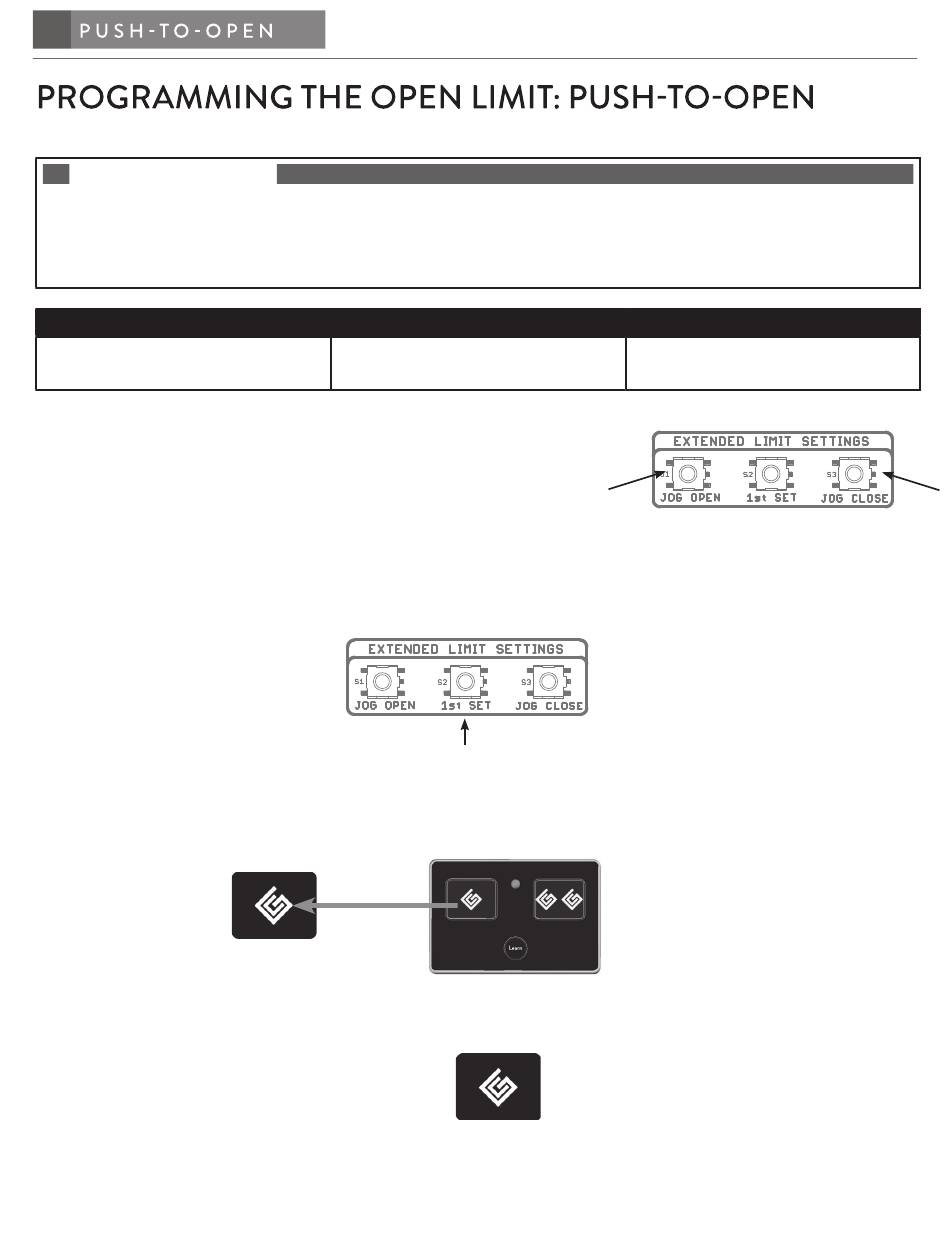

STEP 15. Setting the open limit.
A . Press and hold the JOG OPEN buttons on the gate system control
board until the gate reaches the desired OPEN position. The gate
can move only if pressure is maintained. Releasing the JOG button will stop the gate immediately.
B. Both JOG OPEN or JOG CLOSE buttons are needed to 'fine-tune' your desired OPEN position.
STEP 16. Press and hold the 1st set limit button on the control panel until it beeps, then release
STEP 17. Press the transmitter button to activate the gate and let the gate close fully. you should
hear a single beep.
When the gate reaches its CLOSED position, the control board will sound a single beep, confirming the CLOSED limit has
been set.
A
. Confirm the newly programmed OPEN limit by pressing the remote transmitter button to activate the gate and
confirm the closed position has been set correctly. This limit is stored and remembered even when all of the power
sources are removed.
B. Repeat STEPS 16-18 if needed to change your desired OPEN position.
C. Test your system with the remote transmitter to make sure it opens and closes without errors.
© G h o s t C o n t r o l s
®
Retracted Position
Gate at the fully CLOSED position (not
electronically adjustable)
2 0 2 0
Extended Position
Gate at the OPEN position (electroni-
cally adjustable)
