POWERING THE SYSTEM WITH THE AC TRANSFORMER
NOTE
DO NOT USE THE AC TRANSFORMER AND SOLAR POWER AT THE SAME TIME!
NOTE

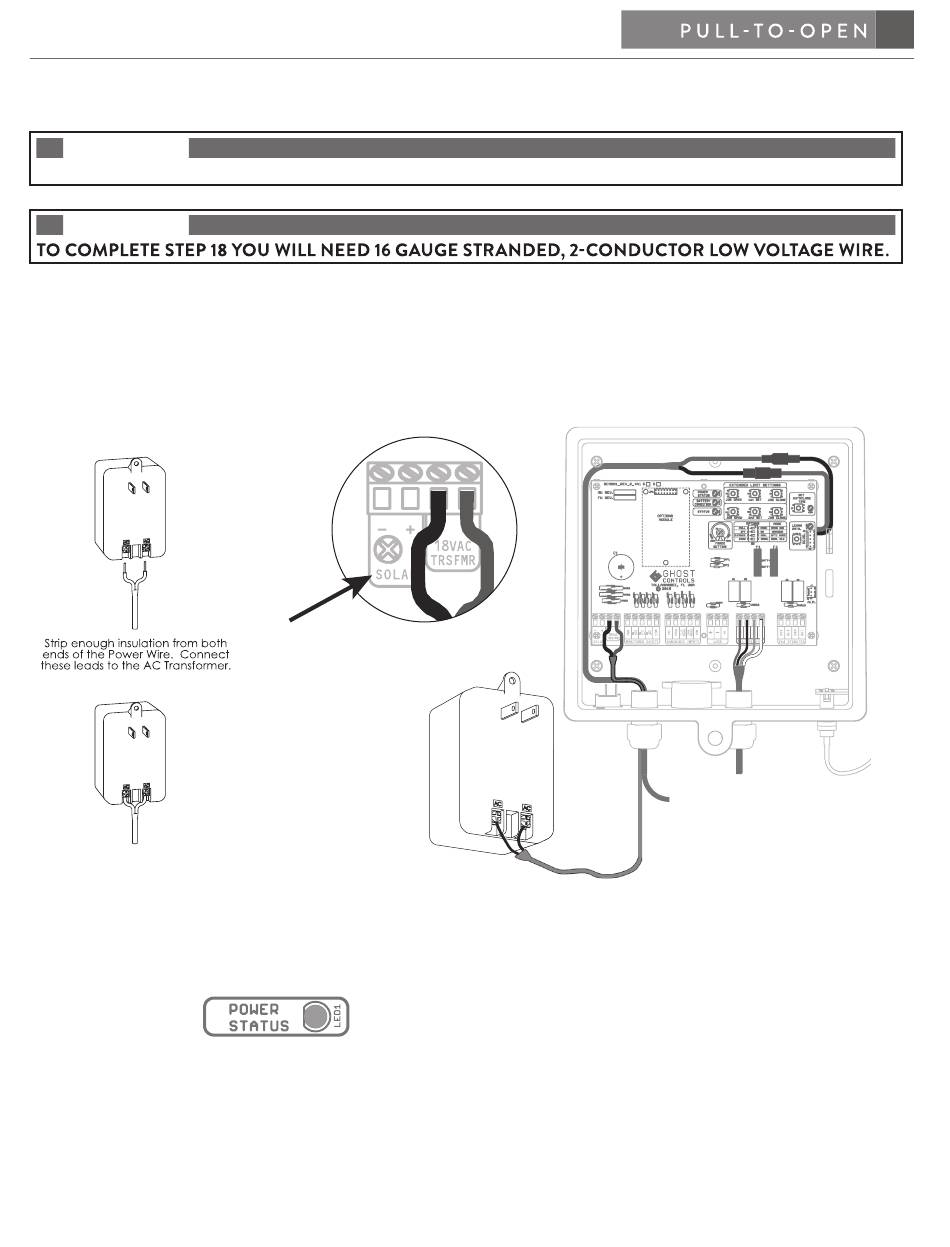

STEP 18. Route the AC transformer wires into the control box. (See note above)
A . When wiring the AC Transformer you will need to insert the AC wires into the 18VAC TRSFMR SCREW
TERMINALS which are located on the PWR INPUT section of the main control board. Once inserted then
tighten each screw so that the wires do not come loose and fall out. The transformer is not polarity sensitive
so either wire can go to either transformer terminal. Do not plug in the transformer during this step.
DO NOT PLUG IN THE AC
TRANSFORMER DURING THIS STEP.
B. Connect AC Transformer to outdoor outlet. Make sure you connect AC Transformer wires to control board
prior to plugging in AC Transformer into weatherproof outdoor outlet.
C. Check that green LED (Power status) on top center of control board is on. This indicates that the battery is
being charged.
Black
DO NOT USE this terminal
if using AC Transformer
Red
Operator Arm
Battery Harness
