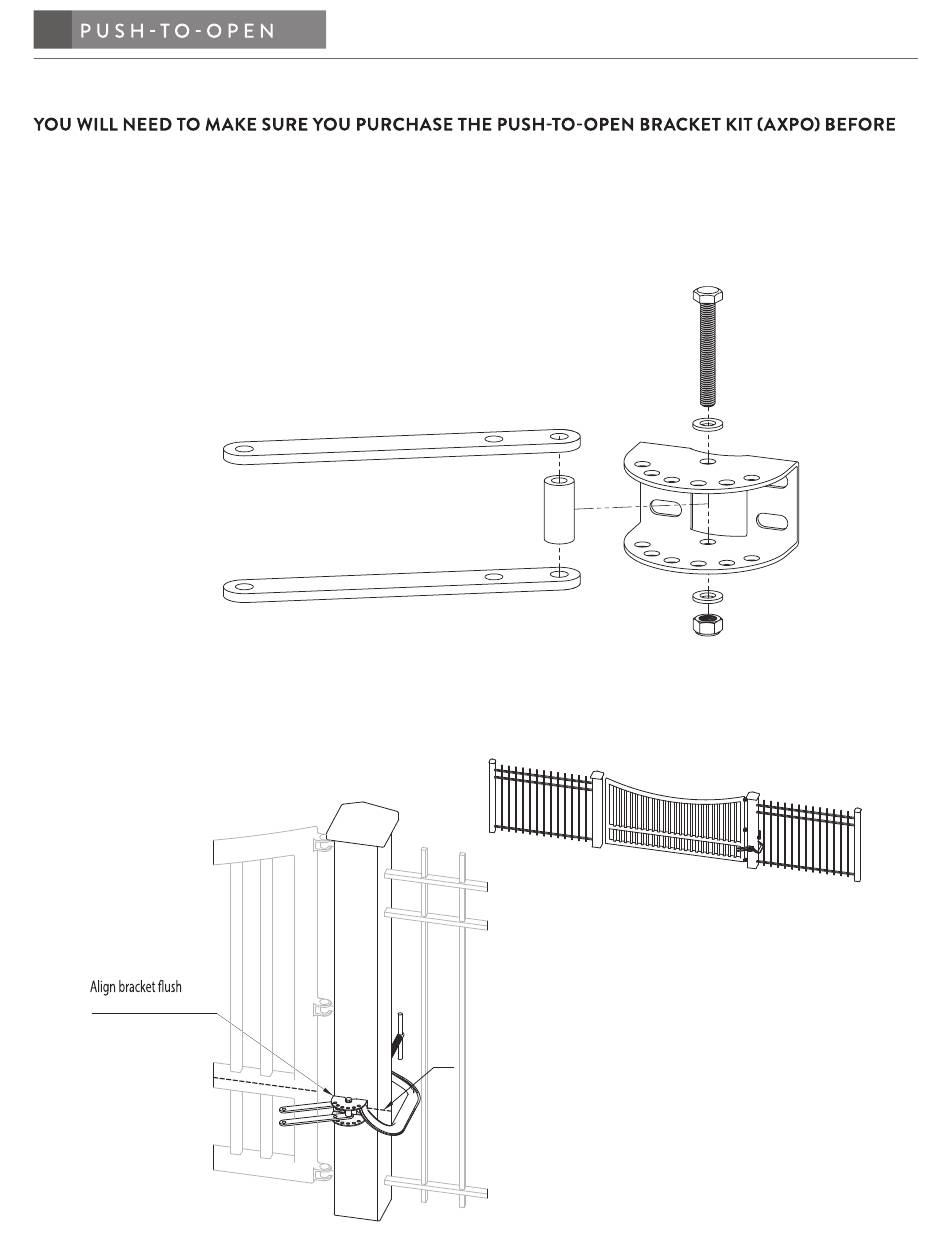

STEP 2. Post bracket pre-assembly.
YOU START THIS STEP
Insert the M10x1.5x75mm bolt and M10 washer through the hole that is closest to the post on the post bracket. Bolt should
then go through first push-to-open bracket, pivot spacer, second push-to-open bracket, and exit bottom hole of post bracket
as shown. Fasten a M10 washer and M10 locknut on the end of the bolt.
DO NOT overtighten the nuts because the Push-To-Open brackets may need to be adjusted later.
STEP 3. Clamp post bracket to post for alignment.
After the post bracket is pre-assembled and the horizontal centerline has been marked on the post as referred to in
STEP 2 and 3, proceed to CLAMP THE POST BRACKET TO THE MARKED CENTER LINE on the post.
with edge of post.
© G h o s t C o n t r o l s
®
PUSH-TO-OPEN
COMPLETED ASSEMBLY
2 0 2 0
M10 X 1.5 X 75MM BOLT
BRACKET
NYLON PIVOT SPACER
PUSH-TO-OPEN
BRACKET
CL
M10 WASHER
POST
M10 WASHER
BRACKET
M10 LOCKNUT
