Ghost Controls ZombieLock Quick Start Manual

These beeps occur only once when you are attempting to activate the unit via your

remote control. If after pressing your remote control you get a series 5 beeps, pause, 5

beeps, pause without pressing the remote see the 5 beep error code document.

Do you currently have a Zombie lock connected to your system? If yes proceed to step 1.

If you have removed your Zombie Lock please follow step 3 instructions.

Step 1

M ake sure all your lock wires are secure. Turn the system off, remove the red, black, and blue

wires from the control board. Inspect and replace the wires back into the terminals.Turn the system on

and test with your remote control. If the issue persists proceed to step 3.

Step 2

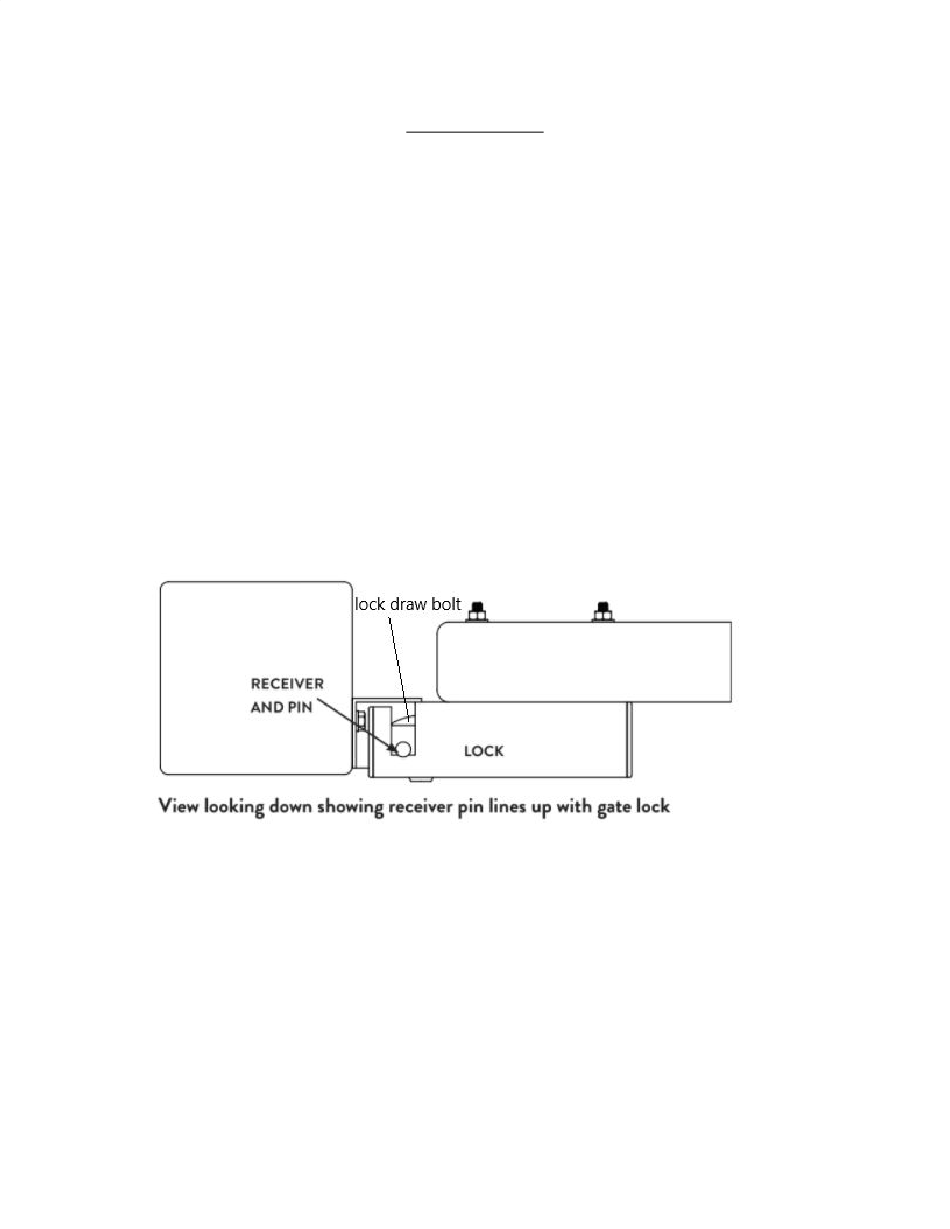

C heck for binding at the closed position between the receiver lock pin and lock. If the pin is

resting against the lock draw bolt you will need to readjust your gate closed position. Please refer to your

installation manual for the automatic gate opener and the Zombie Lock Manual.

5 Rapid beeps

Table of Contents

Do you have a question about the ZombieLock and is the answer not in the manual?

Page 1 5 Rapid beeps These beeps occur only once when you are attempting to activate the unit via your remote control. If after pressing your remote control you get a series 5 beeps, pause, 5 beeps, pause without pressing the remote see the 5 beep error code document. Do you currently have a Zombie lock connected to your system? If yes proceed to step 1.
Page 2 Step 3 H ow do I reset the Ghost Controls System when a ZombieLock is missing or removed? Example Scenarios : 1. I previously had a Ghost Controls AXZL ZombieLock installed and now I have removed it for some reason or another. How do I get my Ghost Controls system to work again now that I have removed the AXZL ZombieLock from the installation? 2.
Page 3 Turn the system control board ON and continue to hold the JOG OPEN and JOG CLOSE buttons down for approximately 6-8 seconds. Your system has now reset. Test your system operation with the Remote Transmitter.
