POWERING THE SYSTEM WITH SOLAR
STEP 19. Adding a solar panel (optional) to the control box.

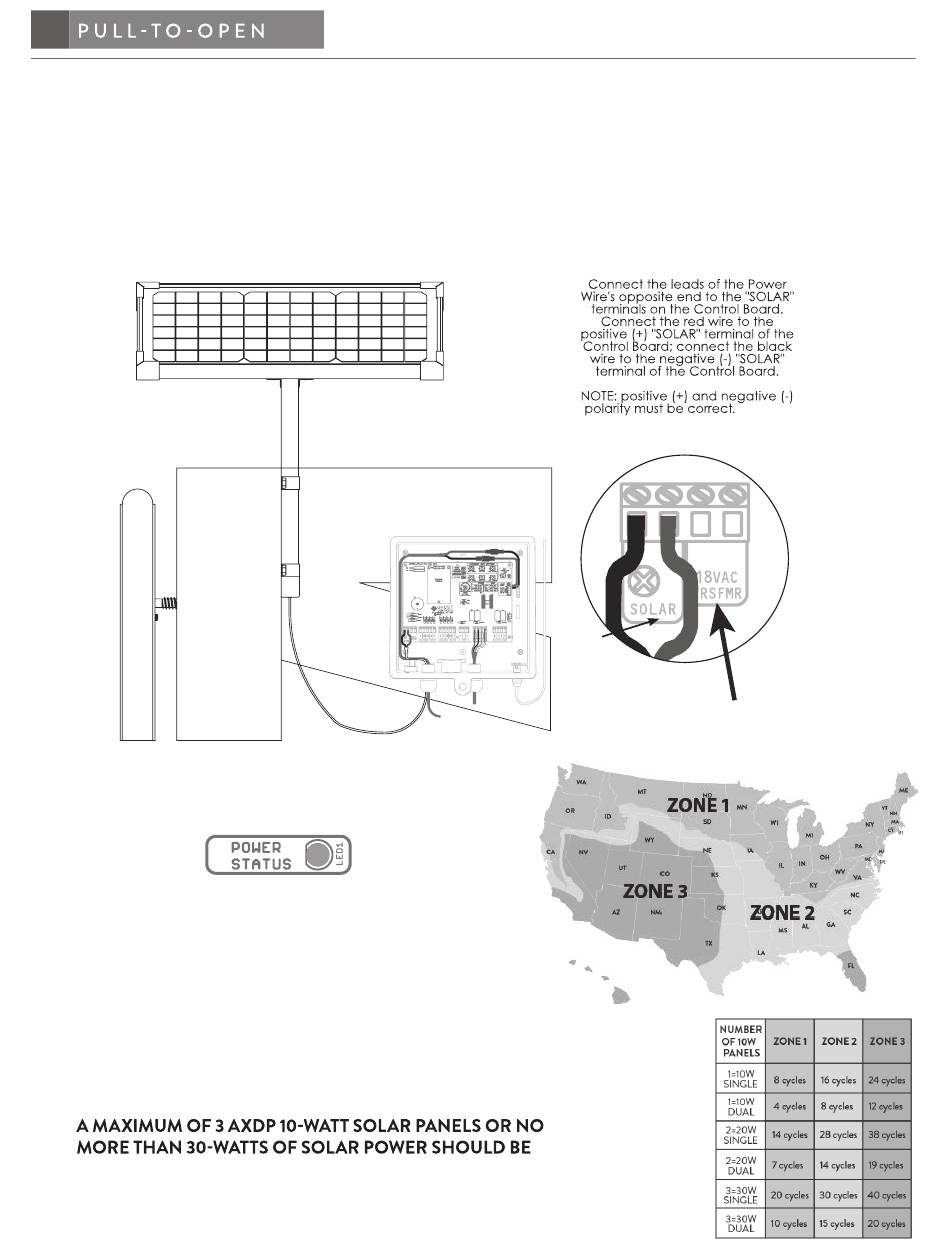

A . When wiring a Solar Panel you will need to insert the solar wires into the SOLAR SCREW TERMINALS
which are located on the PWR INPUT section of the main control board. Once inserted then tighten each
screw so that the wires do not come loose and fall out. Please refer to diagram below. DO NOT CONNECT
AC TRANSFORMER IF USING SOLAR POWER.
B. Check that green LED (Power status) on top center of
control board is on. This indicates that the battery is
being charged.
C. Check the chart shown for number of hours of direct
sunlight available for solar applications.
D. Determine the number of expected winter cycles for a
single gate using solar power by reviewing the map and
chart shown.
CONNECTED TO ANY GHOST CONTROLS SYSTEM
CONTROL BOARD.
© G h o s t C o n t r o l s
®
2 0 2 0
Black
Operator Arm
Battery Harness
Red
DO NOT USE this terminal
if using Solar Panel
