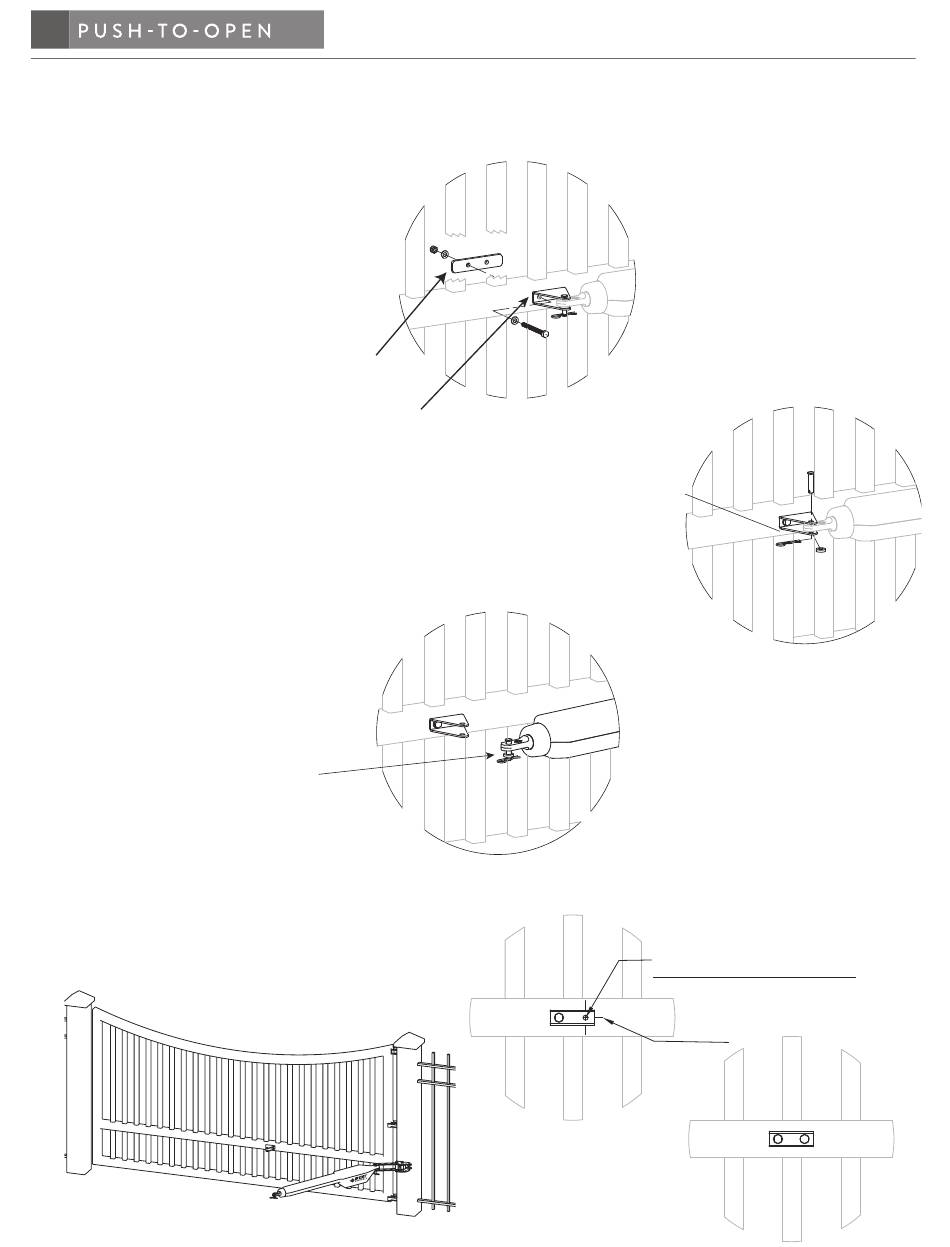

B. Install the front mount gate bracket and estate bracket on the gate by aligning the outermost hole and
inserting (1) M8 x 65mm flat washer, and (1) M8 nylon locknut through gate and front mount bracket, as
show below. Tighten to secure the brackets to the gate. MAKE SURE GATE IS STILL IN CLOSED POSITION
(arm must be fully retracted).
C. Disconnect operator from gate bracket and swing away from the gate.
D. Assemble clevis pin, front spacer and hair pin to operator to prevent loss.
Temporarily assemble cotter pin,
hair pin, and front spacer into
front mount
E. Now you can mark and drill the inner most hole on the front mount bracket, shown below.
© G h o s t C o n t r o l s
®
Estate Bracket install
on backside of gate
Front Mount Bracket
2 0 2 0
Remove the clevis pin,
hair pin, and front spacer.
Mark and drill the center location of
the innermost hole for the Gate Bracket
CL
