WARNING
DO NOT SCREW THE OPERATOR ARM IN OR OUT TO ADJUST YOUR GATE POSITION. DOING SO
CAUSES THE SYSTEM TO NOT FUNCTION PROPERLY.
CL

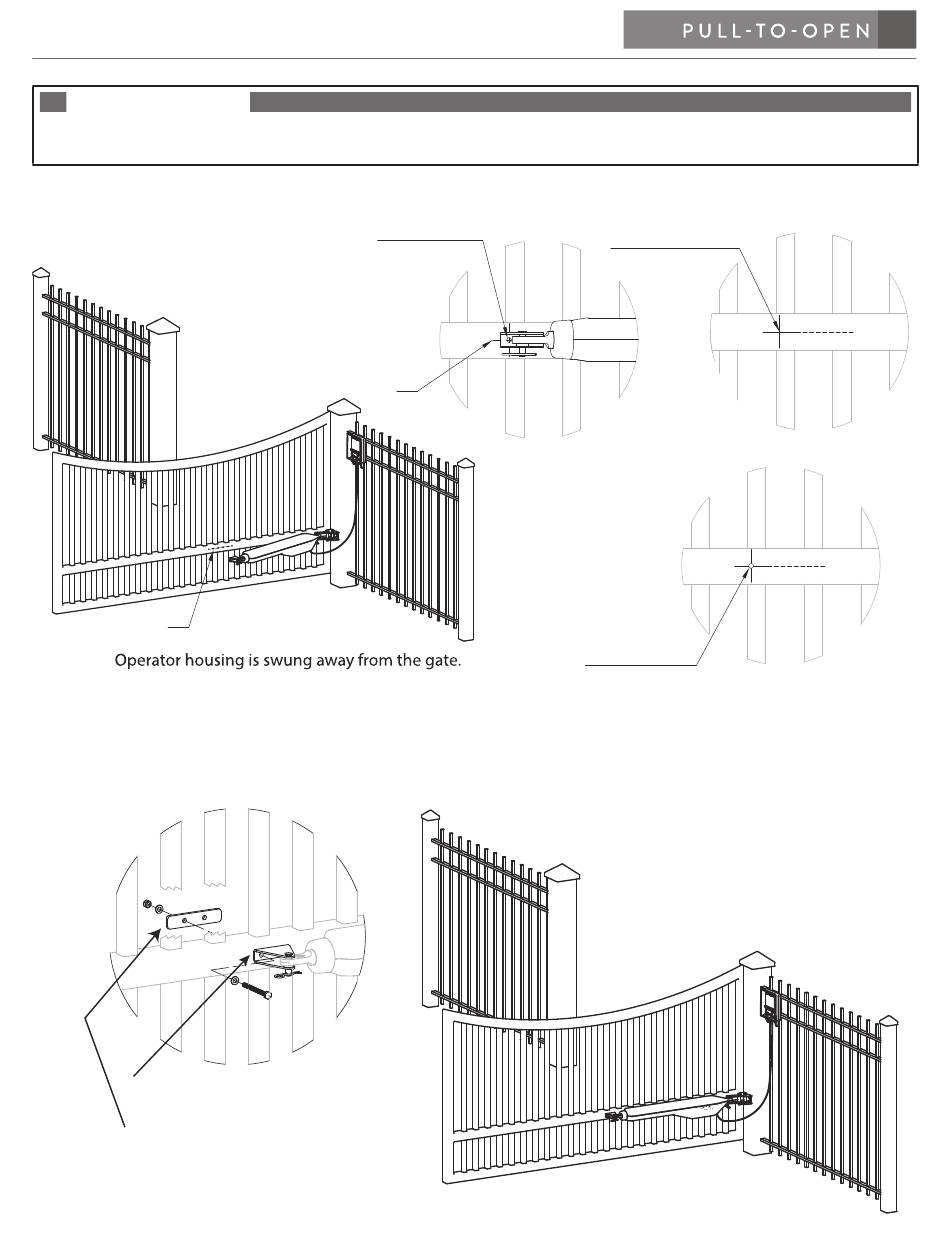

B. Install the front mount gate bracket and estate bracket on the gate by aligning the outermost hole of both
brackets and inserting (1) M8 x 65mm flat washer, and (1) M8 nylon locknut through both the estate and
front mount bracket, as show below. Tighten to secure the brackets to the gate. MAKE SURE GATE IS STILL
IN OPEN POSITION (arm must be fully retracted).
Front Mount Bracket
Estate Bracket install
on backside of gate
Mark center
location of
outermost hole
CL
Center-punch
location for drilling
outermost hole
Outermost hole
has been drilled
