22

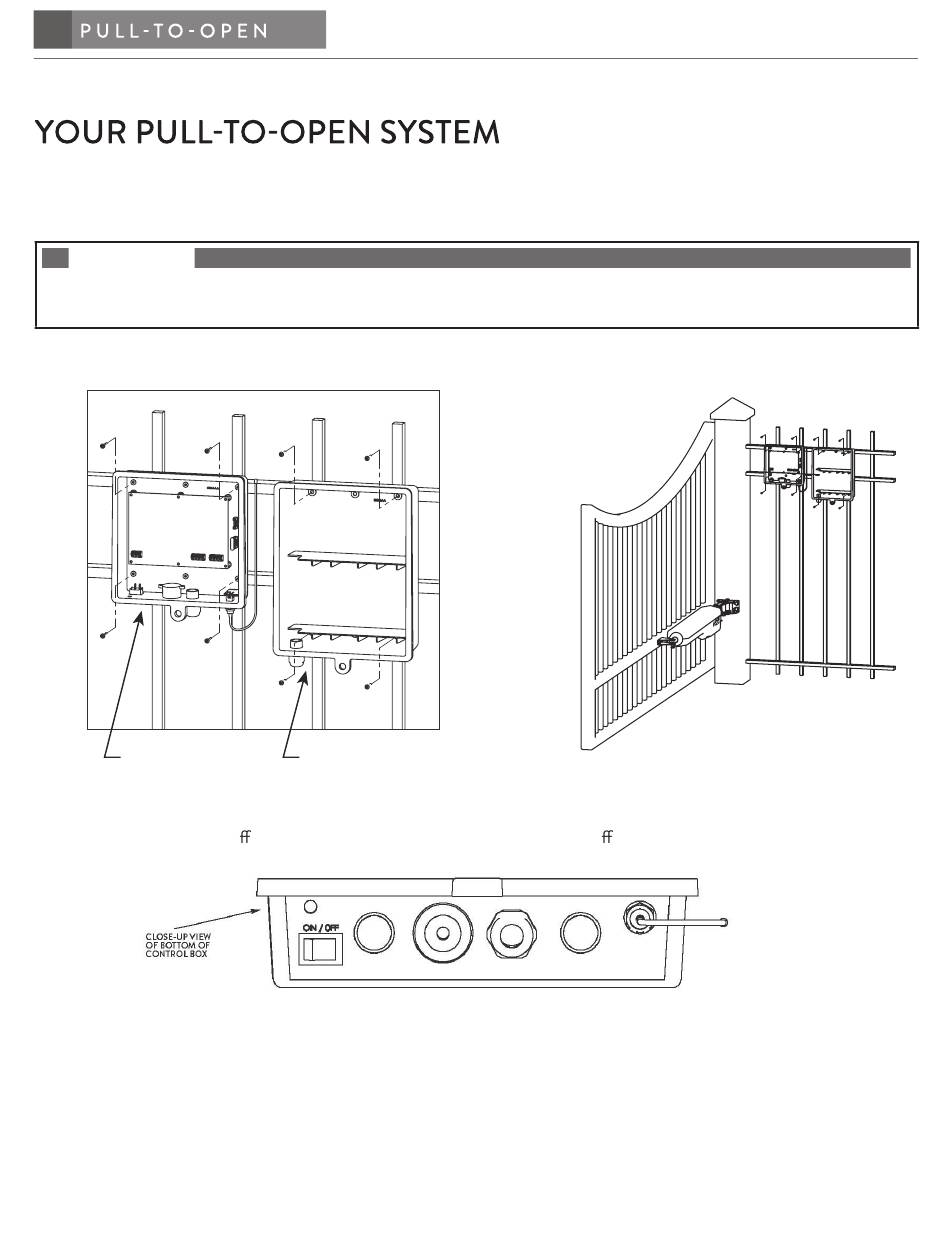

INSTALLING THE CONTROL BOX AND BATTERY BOX FOR
STEP 7. Determine the mounting location for the control and battery box. The battery and control
box must be located within 4 feet of each other. Then install.
NOTE
Mount the control and battery box a minimum of 3 feet above the ground to keep dirt and water from damaging the
control board and within 4 feet of the operator arm in order for the operator cable to reach the control box.
A . Pre-drill (4) holes (7/32˝ drill bit) in backside of control and battery box, and through the fencing where you
will be securing the control and battery box to.
Control Box
B. Now use the (4) supplied phillips screws for both boxes to mount the control and battery box to the fence.
C. Make sure the on/o switch on the bottom of control box is in the o position.
CONNECTING AND INSTALLING THE BATTERY BOX AND
BATTERY HARNESS
STEP 8. Insert battery harness through strain relief in control box and attach to the control board.
A . Route the battery harness cable through the strain relief on the bottom of the control box and connect the
bullet connectors (red to red, black to black) to the control board harness. See diagram on next page.
© G h o s t C o n t r o l s
®
Battery Box
2 0 2 0
