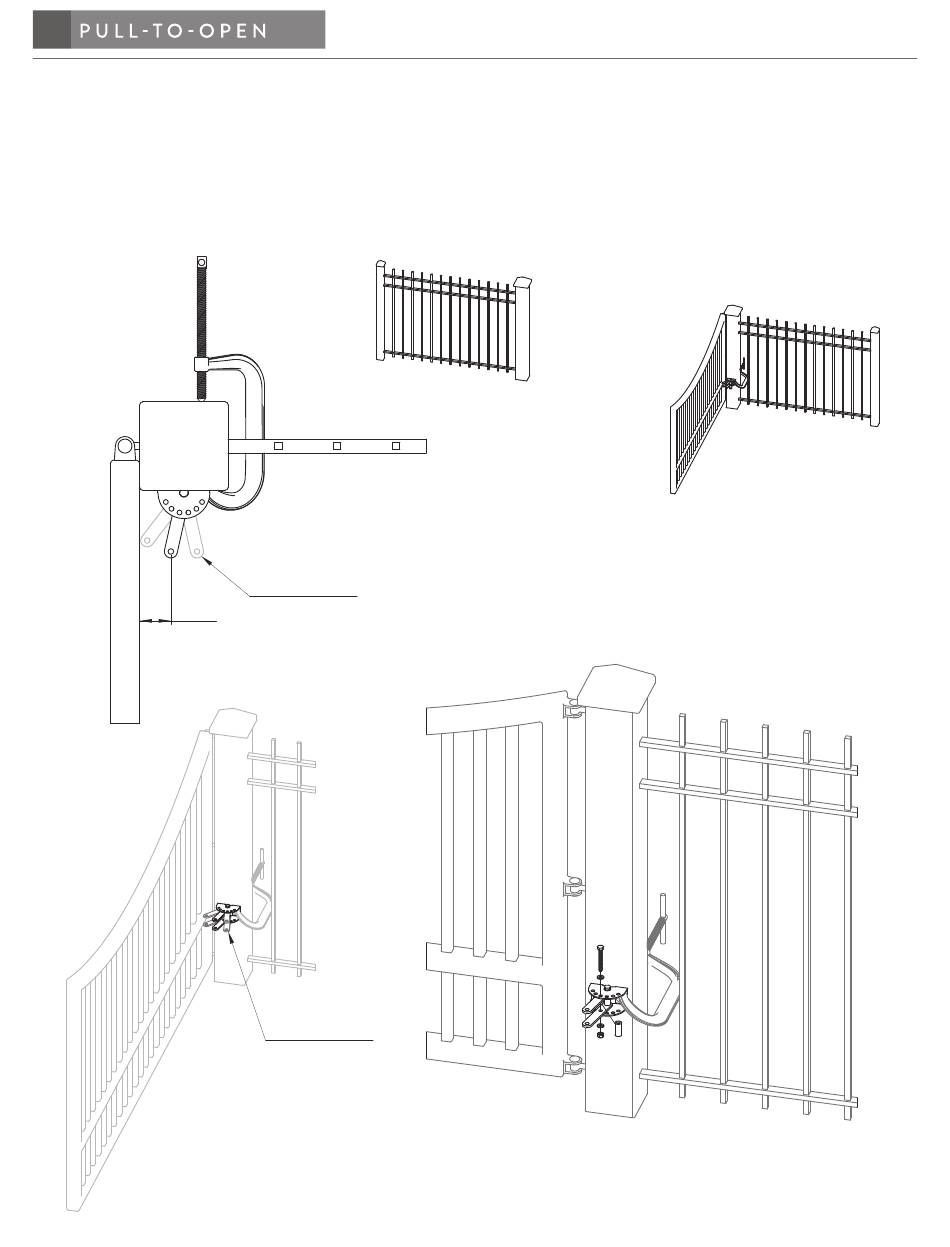

STEP 4. Verifying minimum of 4˝ Gate Clearance and finishing rear post mount bracket assembly.
If the clearance is less than 4˝, you will need to adjust the pivot brackets so that you have at least 4˝ of clearance.
Once the clearances are correct, place the secondary bolt into the pivot bracket as shown. Insert the M10x1.5x75mm bolt
and M10 washer through the post bracket hole, then first pivot bracket, pivot spacer, second pivot bracket, and exit out
bottom hole of post bracket as shown below. Fasten a M10 washer and M10 locknut on the end of the bolt. Finish by
tightening both bolts on post bracket.
Adjust position
as necessary
>4.0
Minimum Distance
Adjust position
as necessary
