STEP 14. Attach the FRONT MOUNT AND ESTATE BRACKET to gate. The gate must remain
in the desired closed position
CLOSE THE GATE TO THE DESIRED CLOSED POSITION

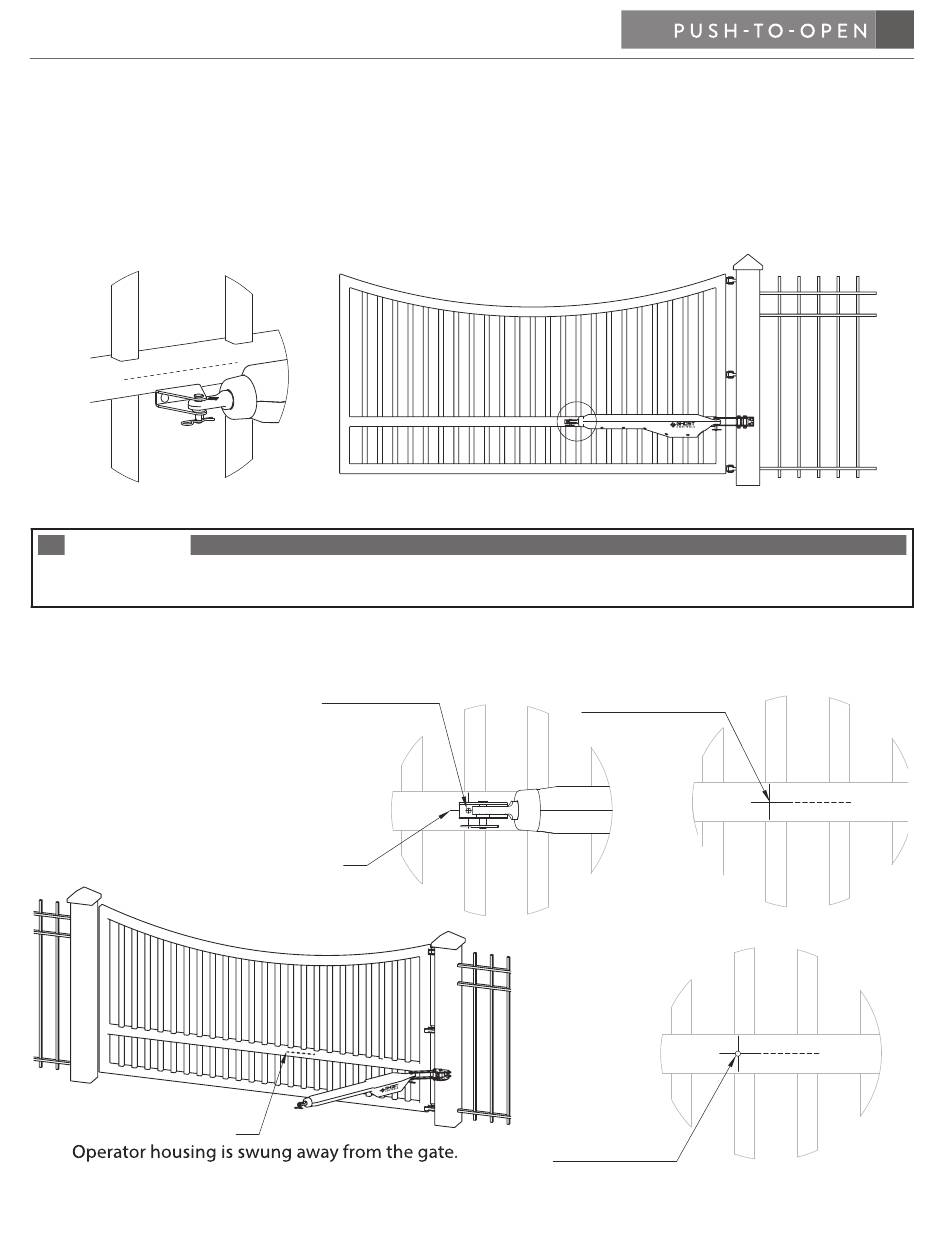

A . Line up the pre-assembled front mount gate bracket over the center-most bar on your gate and mark the
center location of the outermost hole on the gate.
NOTE
DO NOT SCREW THE OPERATOR ARM IN OR OUT TO ADJUST YOUR GATE POSITION. DOING SO
CAUSES THE SYSTEM TO NOT FUNCTION PROPERLY.
Mark center
location of
outermost hole
CL
CL
Center-punch
location for drilling
outermost hole
Outermost hole
has been drilled
© G h o s t C o n t r o l s
49
2 0 2 0
®
