INSTRUMENT INSTALLATION:

Tools needed:
Phillips (cross-head) screwdrivers
Tiny jewelers/electronics flat screwdrivers
Allen key drivers
Small sockets
Nylon spud wedges (small pry bar)
Miscellaneous: wire, wire nut/splices, and nylon zip ties
Summary:
You will be reusing the original factory (OEM) bezels and fasteners, so work carefully and keep
track of the parts upon disassembly. There are 2 phases to this installation: the main instrument
bezel (Speedo and Tach) and the center console ancillary gauges. In each phase you will remove
the factory housings, pull out and set aside the current existing gauges (whether OEM or
aftermarket) and replace them with your new Intellitronix digital gauge boards. Finally, you will
reassemble the bezel/housing back into the dash/console. If you are not comfortable performing
auto electric work, seek professional installation. If you have done this or a similar procedure
previously, you may want to advance to the WIRING INSTRUCTIONS on page 4.
Be Advised: This process can take several hours the first time, depending upon your ability and
experience.
Main Bezel
Removal:
Remove 5 Phillips screws from the Speedo panel to release the clear plastic lens. You may need
nylon spuds for this. Repeat for Tach panel.
Remove 6 Allen head screws to release inner black frame.
Remove 3 Nut-head screws to unfasten the Speedo, and another 3 to unfasten the Tach.
Remove 3 Phillips screws to release the small kick panel beneath the steering column to ease under-
dash access.
Remove the center section of the heater ducting by jiggling carefully, allowing for easier access.
Reach up behind the dash and depress the retaining clip on the Speedo cable while pulling the
cable away from the gauge to release the Speedo.
Reach up behind the dash and pinch the Tach coupler, then pull away from the gauge to release the
Tach.
Reach up behind the dash and twist out the factory bulbs behind the Speedo and Tach, but leave the
bulbs in the center column for the turn signals and other warning lights.
Installation:
Install the new Speedo board by passing the wires through the
empty cable hole, and press the board's tabs into the housing
depressions, and fasten with OEM nut head screws. Prepare the
Tach board for installation by fastening the included horseshoe
adapter (you can peel off the protective film) to the outer edge
of the board using the included Phillips screws and locking nuts.

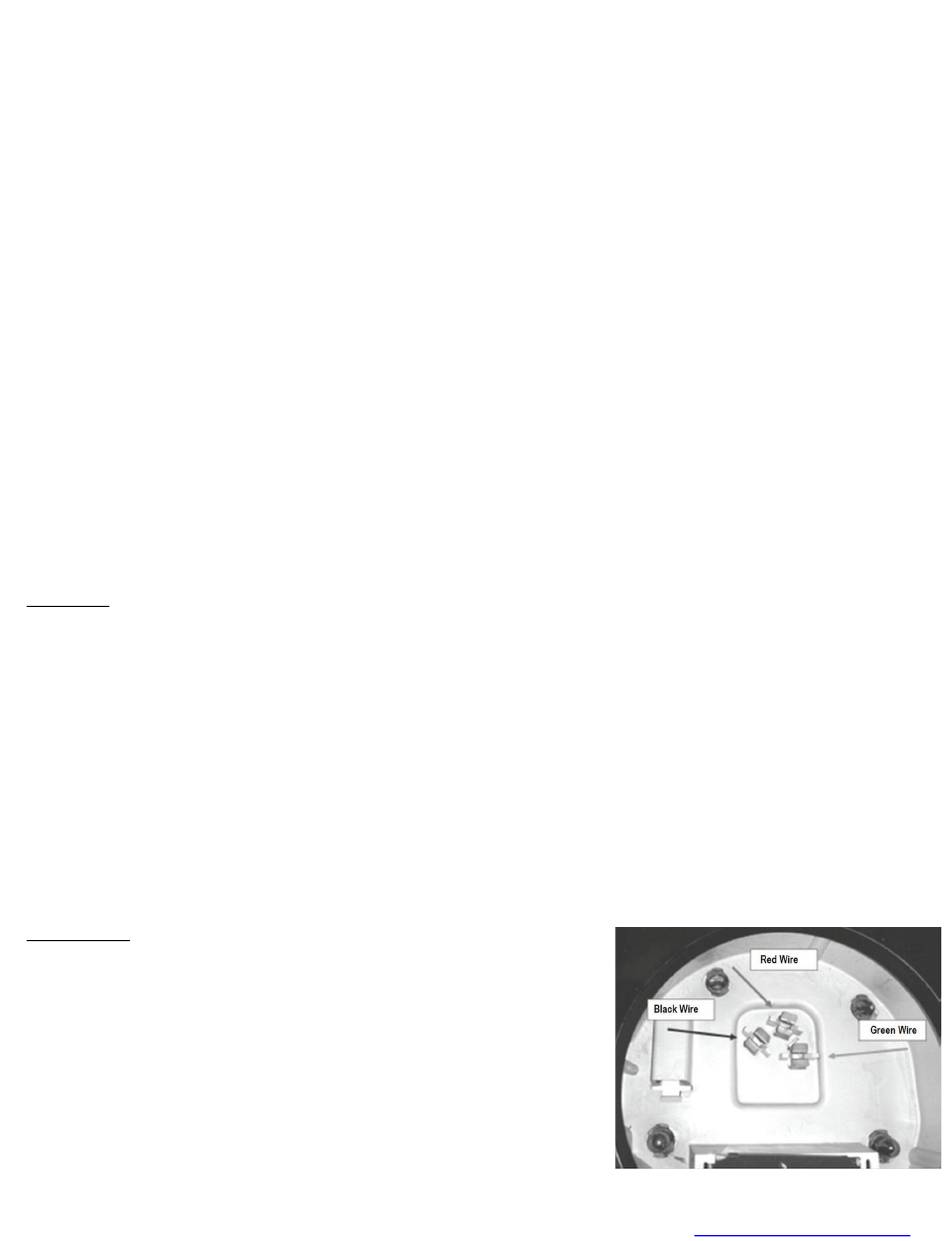

Install the Tach board by clipping the black, red, and green
alligator clips to the left, top, and bottom terminals respectively,
as in figure 1, and pass the remaining leads through an empty
bulb hole. Fasten the board with OEM nut head screws.
(figure 1)
