GA-8ITX Series Motherboard

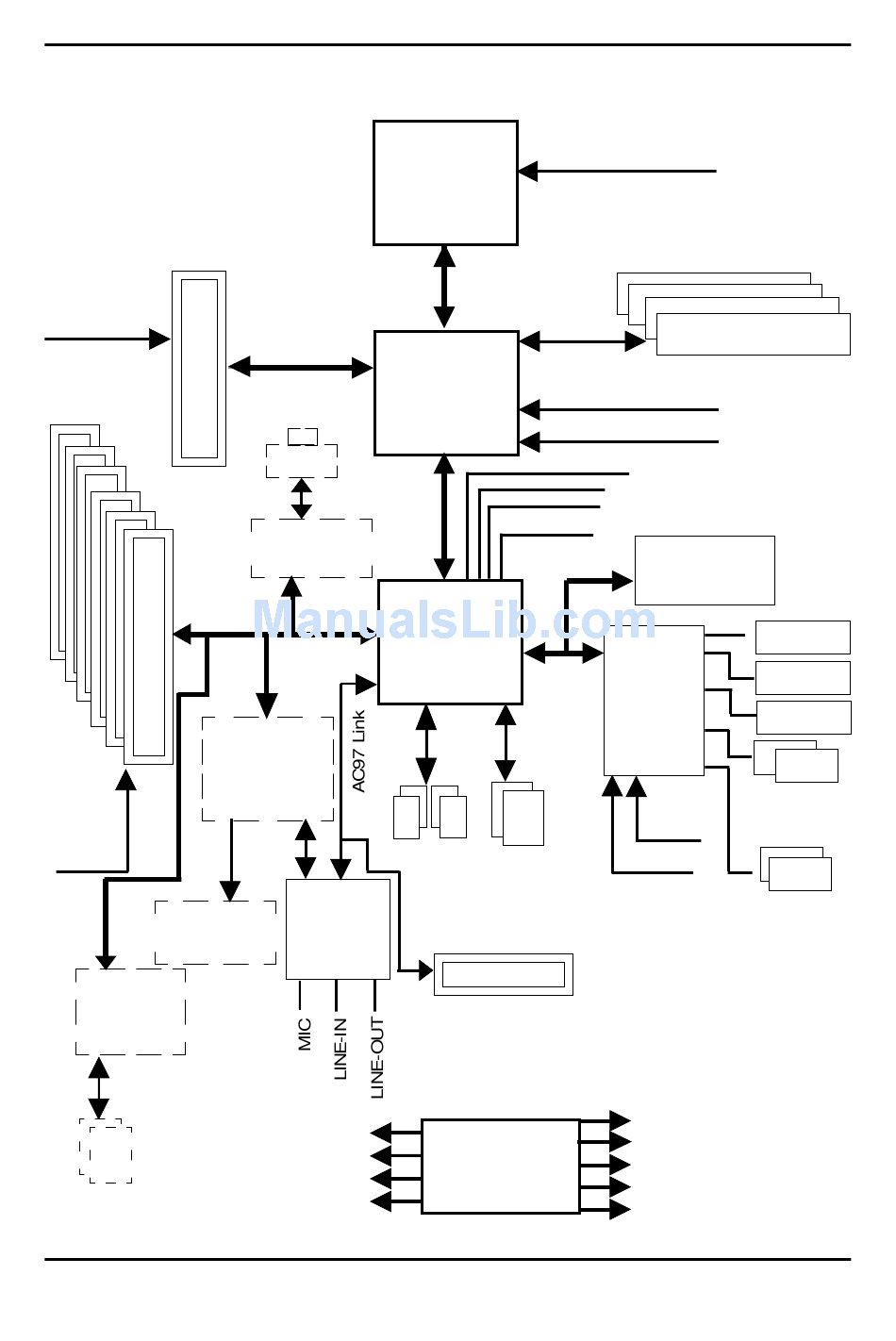

Block Diagram

AGP 4X
AGPCLK
(66MHz)
6 PCI
PCICLK
(33MHz)
Game Port
Promise
PDC20265
ATA100/RAID
IDE Channels
System Bus 100MHz
RJ45
RTL8100(B)L
Creative
CT5880
AC97
CODEC
PCICLK (33MHz)
USBCLK (48MHz)
14.318 MHz
33 MHz
Pentium 4
CPUCLK+/- (100MHz)
Socket 478
CPU
300/400MHz
Intel
MCH66 (66MHz)
82850
MCHCLK+/- (100MHz)
48 MHz
Intel
ICH 2
LPC BUS
4 USB
ATA33/66/100
Ports
IDE Channels
ICS
9250AF-37
6 0
RDRAM
66 MHz
33 MHz
14.318 MHz
FWH
SST49LF004A
Winbond
W83627HF
48 MHz
33 MHz
CNR
MCH66 (66MHz)
CPUCLK+/- (100MHz)
AGPCLK (66MHz)
MCHCLK+/- (100MHz)
ICH3V66 (66MHz)
Game Port
Floppy
LPT Port
PS/2
KB/Mouse
COM
Ports
