When you installing AGP card, please make sure the follow
ing notice is fully understood and practiced. If your AGP

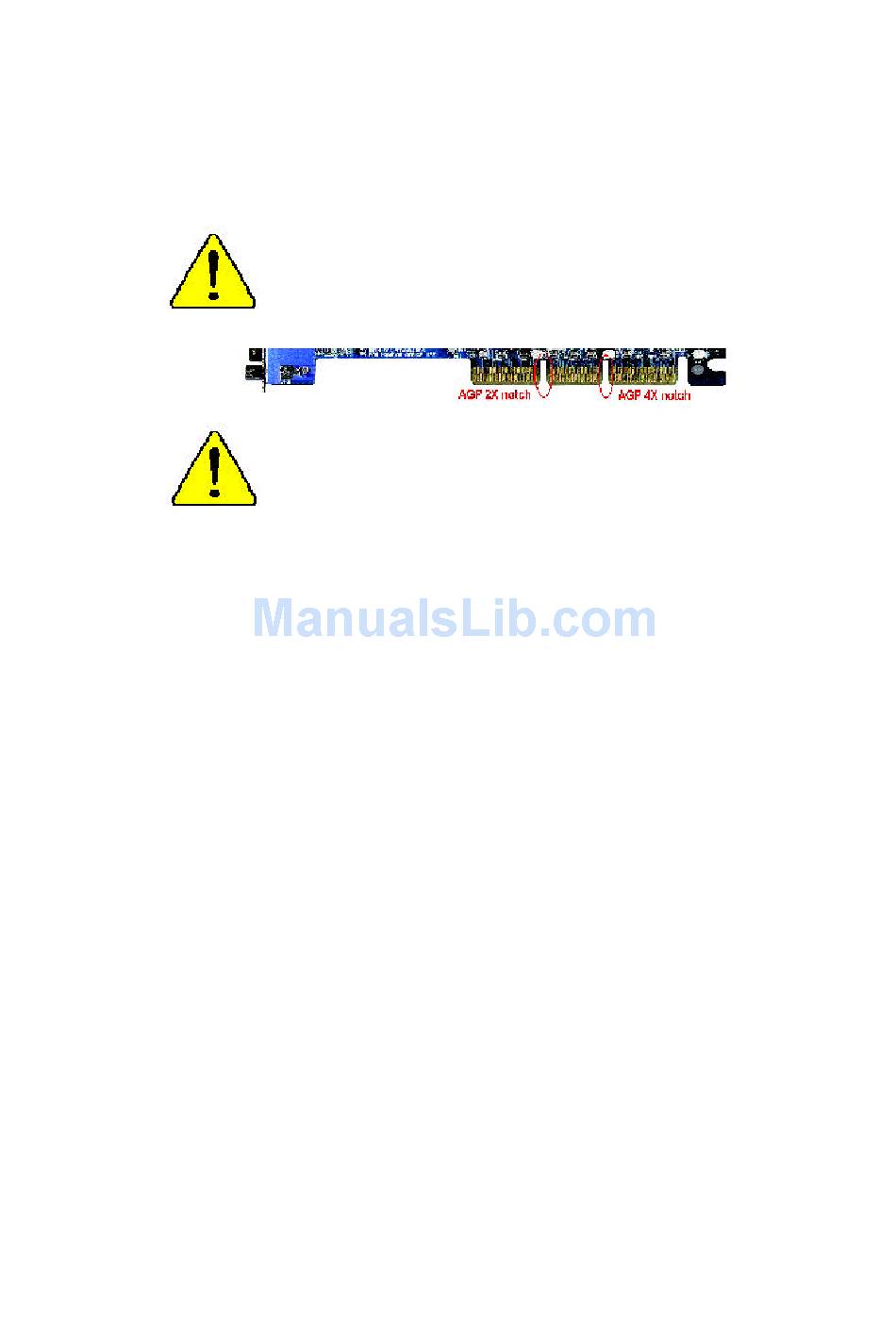

card has "AGP 4X notch"(show below), please make sure
your AGP card is AGP 4X (1.5V).
Do not use AGP 2X card (3.3V) in this motherboard. It will
burn and damage the motherboard due to Intel
/ Intel
850 chipset can't support AGP 2X(3.3V).
®
Example 1: Diamond Vipper V770 golden finger is compatible with 2X/
4X mode AGP slot. It can be switched between AGP 2X (3.3V) or 4X
(1.5V) mode by adjusting the jumper. The factory default for this card is
2X(3.3V). If you install this card in GA-8IRE (or any AGP 4X only)
motherboards without switching the jumper to 4X mode (1.5V), it will
burn the motherboard.
Example 2: Some ATi Rage 128 Pro graphics cards made by "Power
Color", the graphics card manufacturer & some SiS 305 cards, their
golden finger is compatible with 2X/4X mode AGP slot, but they support
2X (3.3V) only. If you install these cards in Intel
motherboards, they will burn the motherboard.
Note : Although Gigabyte's AG32S graphics card is based on ATi Rage
128 Pro chip, the design of AG32S is compliance with AGP 4X ( 1.5V)
specification. Therefore, AG32S will wor k fine with Intel
®
Intel
850 based motherboards.
845
®
845 / Intel
850 based
®
®
®
845 /

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-8IRE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gigabyte GA-8IRE

  • Page 1 4X mode AGP slot. It can be switched between AGP 2X (3.3V) or 4X (1.5V) mode by adjusting the jumper. The factory default for this card is 2X(3.3V). If you install this card in GA-8IRE (or any AGP 4X only) motherboards without switching the jumper to 4X mode (1.5V), it will burn the motherboard.
  • Page 2 The author assum es no responsibility for any errors or omissions that may appear in this document nor does the author make a comm itment to update the information contained herein. Thi rd-party brands and names are the property of their respective owners.
  • Page 3: Declaration Of Conformity

    (Stamp) Declaration of Conformity We, Manufacturer/Importer (full address) G.B.T. Technology Träding GMbH declare that the product Mother Board GA-8IRE is in conformity with in accordance with 89/336 EEC-EMC Directive EN 61000-3-2* EN 60555-2 EN 61000-3-3* EN 60555-3 EN 50081-1...
  • Page 4 (2) this device must accept any inference received, including that may cause undesired operation. Representative Person’s Name: Signature: Eric Lu Date: G.B .T. INC. City of Industry, CA 91748 (818) 854-9338/ (818) 854-9339 Motherboard GA-8IRE ERIC LU Apr. 30,2002...
  • Page 5 Acronyms Acronyms Meaning ACPI Advanced Configuration and Power Interf ace Advanced P ower Management Accelerated G raphics Port Audio Modem Riser Advanced Communications Riser BIOS Boot Specification BIOS Basic Input / Output System Cent ral Processing Unit CMOS Complement ary Metal Oxide Semiconductor CRIMM Cont inuity RIMM Communication and Networking Riser...
  • Page 6 Acronyms Meaning Local Area Network Logical Block Addressing Light Emit ting Diode Megahertz MIDI Musical Interface Digital Interface Memory Translator Hub Memory Protocol Translator Network Int erface Card Operating System Original E quipment Manufacturer PCI A.G.P. Controller POST Power-On Self Test Peripheral Component Interconnect RIMM Rambus in-line Memory Module...
  • Page 7 Technical Support/RMA Sheet Customer/Country: Company: Contact Person: E-mail Add. : Model name/Lot Number: BIOS version: O.S./A.S.: Hardware Mfs. Model name Configuration Memory Brand Video Card Audio Card CD-ROM / DVD-ROM Modem Network AMR / CNR Keyboard Mouse Power supply Other Device Problem Descript ion: Phone No.: PCB revision:...
  • Page 8 GA-8IRE P4 Titan DDR Motherboard USER’S MANUAL Pentium 4 Processor Motherboard ® Rev. 2001 12ME-8I RE-2001...
  • Page 9: Table Of Contents

    Item Checklist ... WARNING! ... Chapter 1 Introduction ... Features Summary ... 4 GA-8IRE Motherboard Layout ... 6 Chapter 2 Hardware Installation Process ... Step 1: Install the Central Processing Unit (CPU) ... 8 Step 1-1 : CPU Installation ...
  • Page 10: Item Checklist

    þ Quick PC Installation Guide WARNING! Computer motherboards and expansion cards contain very delicat e Integrated Circuit (IC) chips. To protect them agai n st damage from static electricity, you should follow some precautions whenever you work on your computer.
  • Page 11: Chapter 1 Introduction

    — Sigmatel STAC9721T CODEC — Line In/Line Out/Mic In/CD In/AUX_IN/Game Port PS/2 Connector — PS/2 Keyboard interface and PS/2 Mouse interface BIOS — Licensed AWARD B IOS, 2M bit FWH GA-8IRE Motherboard Micro FC-PGA2 Pentium 4 processor ® ® Pentium 4 (Northwood, 0.13 m) processor...
  • Page 12 Additional Features — PS/2 K eyboard power on by password — PS/2 Mouse power on — External Modem wake up — STR(Suspend-To-RAM) — AC Recovery — USB KB/ Mouse wake up from S3 — Supports @BIOS — Supports EasyTuneIII Jumper less —...
  • Page 13: Ga-8Ire Motherboard Layout

    GA-8IRE Motherboard Layout KB_MS AUX_12V GA-8IRE CD_IN F_AUDIO AUX_IN AC97 P4 Titan-DDR GA-8IRE Motherboard CPU_FAN SOCKET478 PCI1 ICH2 PCI2 PCI3 BATTERY PCI4 BIOS CLR_CMOS PCI5 IT8702 FRONT USB - 6 - F_PANEL...
  • Page 14: Chapter 2 Hardware Installation Process

    Chapter 2 Hardware Installation Process To set up your computer, you must compl e te the following setps: Step 1- Install the Central Processi n g Unit (CPU) Step 2- Install memory modules Step 3- Install expansion cards Step 4- Connect ribbon cables, cabinet wires, and power supply Step 5- Setup BIOS software Step 6- Install supporting software tools Step4...
  • Page 15: Step 1: Install The Central Processing Unit (Cpu)

    M Please make sure the CPU type is supported by the motherboard. M If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause improper installation. Please change the insert orientation. GA-8IRE Motherboard Pin1indicator CPU Bott om View Pin1 indicator 2.
  • Page 16: Step 1-2 : Cpu Heat Sink Installation

    Step 1-2 : CPU Heat Sink Installation 1. Hook one end of the cooler bracket to the CPU socket first. M Please use Intel approved cooling fan. M We recommend you to apply the thermal tape to provide better heat conduction between your CPU and heatsink.
  • Page 17: Step 2: Install Memory Modules

    M Please note that the DIMM module can only fit in one direction due to the two notches. Wrong orientation will cause improper installation. Please change the insert orientation. GA-8IRE Motherboard 2 DIMMs x 64 / x 72 3 DIMMs x 64 / x 72...
  • Page 18: Step 3: Install Expansion Cards

    Step 3: Install expansion cards 1. Read the related expansi o n card’s instruction document before i n stall the expansion card into the computer. 2. Remove your computer’s chassis cover, screws and sl o t bracket from the computer. 3.
  • Page 19: Step 4: Connect Ribbon Cables, Cabinet Wires, And Power Supply

    PS/2 Keyboard Connector (6 pin Female) v USB Con nector USB 0 USB 1 GA-8IRE Motherboard ØThis connector supports standard PS/2 keyboard and PS/2 mouse. ØBefore you connect your device(s) into USB connector(s), please make sure your device(s) such as USB keyboard, mouse, scanner, zip, speaker..etc.
  • Page 20: Audio Connectors

    w Parallel Port and Serial Ports (COMA/COMB) Parallel Port (25 pin Female) COMA COMB Serial Ports (9 pin Male) x Game /MIDI Ports Joystick/ MIDI (15 pin Female) y Audio Connectors Line Out MIC In Line In ØThis connector supports 2 standard COM ports and 1 Parallel port.
  • Page 21: Step 4-2 :Connectors Introduction

    Step 4-2 :Connectors Introduction A) CPU_FAN B) ATX C) FLOPPY D) IDE1/ID E2 E) BATTERY F) SYS_FAN M) CLR_CMOS GA-8IRE Motherboard G) F_PANEL H) FRONT_USB I) AUX_IN J) CD_IN K) F_AUDIO L) AUX_12V - 14 -...
  • Page 22 L) AUX_12V( +12V Power Connector) +12V +12V A) CPU_FAN (CPU Fan Connector) F) SYS_FAN (System Fan C onnector) +12V/Control B) ATX (ATX Power Connector) +12V 5V SB (Stand by +5V) Power Good V CC V CC 3.3V 3.3V Ø AC power cord should only be connected to your power supply unit after ATX power cable and other related devices are firmly connected to the mainboard.
  • Page 23 D ) IDE1 / IDE2 Connector (Primary/Secondary) C ) FLOPPY (Floppy Connector) I ) AUX_IN ( AU X In Connector) E) BATTERY (BAT) GA-8IRE Motherboard Ø Important Notice: Please connect first harddi s k to IDE1 and connect CDROM to IDE2.
  • Page 24 H ) FRONT_USB (Front USB Connector) K ) F_AUDIO (F_AUDIO Connector) Ø Be careful with the polarity of the front panel USB connector. Check the pin assignment while you connect the front panel USB cable. Please contact your nearest dealer for optional front panel USB cable.
  • Page 25 Ø Please note: You may clear the CMOS data to its default values by this jumper. "#" Default doesn’t include the “Shunter” to prevent from improper use this jumper. To clear CMOS, temporarily short 1-2 pin. GA-8IRE Motherboard Pin 2: LED cathode(-) Pin 1: VCC(+)
  • Page 26: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of informati o n is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off.
  • Page 27: Standard Cmos Features

    Change, set, or disable password. It allows you to limit access to the system. Save & Exit Setup Save CMOS value settings to CMOS and exit setup. Exit Without Saving Abandon all CMOS value changes and exit setup. GA-8IRE Motherboard - 20 -...
  • Page 28: Load Optimized Default

    To save exit the BIOS setting screen press F10, and press "Y" if you want to save setting. By typing "N" or "ESC" will take you back to setup screen. If you want to realize the BIOS setup information in detail, please down- load this manual from Gigabyte web http://www.gigabyte.com.tw. Load Fail-Safe Defaults Load Optimized Defaults...
  • Page 29: Q-Flash Introduction

    Keep DMI Data : Load BIOS from Floppy Save BIOS to Floppy Space Bar:Change Value Enter: Run ESC: Reset GA-8IRE Motherboard Load Fail-Safe Defaults Load Optimized Defaults Set Supervis or Password Set User Password Save & Exit Setup Exit Without Saving higf: Select Item F10:Save &...
  • Page 30 Load B IOS From F loppy !In the A:drive, i n sert the "BIOS" diskette, then Press Enter to Run. XXXX.XX Total Size: 1.39M F5: Refresh DEL: Delete Where XXXX.XX is name of the BIOS file. !Press Enter to Run. Are you sure to update BIOS? [Enter] to contiune Or [ESC] ot abort...
  • Page 31: Chapter 4 Driver Installation

    A: Intel 845 Chipset Driver Installation Follow the setup that showing on the scween to install the Utility. B: Soun d Driver Installation Press "Audio" icon. 1.Click "SigmaTel" item. GA-8IRE Motherboard 1. Click “Intel Chipset Software Installation Utility” Item. 2.Click "SigmaTel AC97 Audio Driver" item.
  • Page 32: Chapter 5 Bios Flash Procedure

    Chapter 5 BIOS Flash Procedure BIOS update procedure: Method 1: If your OS is Win9X, we recommend that you used Gigabyte @BIOS Press "Tools" icon. 1.Click "Gigabyte Utilities". Click "P". Click here. Methods and steps: I. Update BIOS through Internet a.
  • Page 33 Otherwise, your system won't boot. c. In method I, if the BIOS file you need cannot be found in @BIOS Gigabyte's web site for downloading and updating it according to method II. d. Please note that any interruption during updating will cause system unbooted...
  • Page 34 Method 2: We use GA-7VTX motherboard and Flash841 BIOS flash utility as example. Please flash the BIOS according to the following procedures if you are now under the DOS mode. Flash BIOS Procedure: STEP 1: (1) Please make sure your system has installed the extraction utility such as winzip or pkunzip. Firstly you have to install the extraction utility such as winzip or pkunzip for unzi p the files.
  • Page 35 "Copy system files", after that press "Start". That will format the floppy and transfer the needed system fi l es to it. Beware: This procedure will erase all the prior data on that floppy, so please proceed accordingly. (3) After the floppy has been formatted completely, please press "Close". GA-8IRE Motherboard - 28 -...
  • Page 36 STEP 3: Download BIOS and BIOS utility program. (1) Please go to Gigabyte website http://www.gigabyte.com.tw/index.html, and click "Support". (2) From Support zone, click the "Motherboards BIOS & Drivers". - 29 - BIOS Flash Procedure...
  • Page 37 (4) Select an appropriate BIOS version (For example: F4), and click to download the file. It will pop up a file download screen, then select the "Open this file from its current location" and press "O K". GA-8IRE Motherboard - 30 -...
  • Page 38 (5) At this time the screen shows the following picture, please click "Extract" button to unzip the fil e s. (6) Please extract the download files i n to the clean bootable floppy disk A mentioned in STEP 2, and press "Extract". - 31 - BIOS Flash Procedure...
  • Page 39 LOAD SETUP DEFAULTS ESC: Quit hifg : Select Item F6: Load BIOS Defaults F7: Load Setup Defaul t s Time, Date , Hard Disk Type… GA-8IRE Motherboard INTEGRATED PERIPHERALS HARDWARE MONITOR & MISC SETUP SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE &...
  • Page 40 (3) Press "Enter" to enter "BIOS FEATURES SETUP" menu. Use the arrows to highlight the item "1st Boot Device", and then use the "Page Up" or "Page Down" keys to select "Floppy". AMIBIOS SETUP - BIOS FEATURES SETUP ( C ) 2001 American Megatrends, Inc. All Rights Reserved 1st Boot Device : Floppy 2nd Boot Device...
  • Page 41 (2) Now screen appears the following Flash Utility main menu. Press "Enter", the highlighted item will locate on the model name of the right-upper screen. Right after that, press "Enter" to start BIOS Flash Utility. GA-8IRE Motherboard - 34 -...
  • Page 42 (3) It will pop up a screen and asks "Are you sure to flash the BIOS?" Press [Enter] to continue the procedure, or press [ESC] to quit. Beware: Please do not turn off the system while you are upgrading BIOS. It will render your BIOS corrupted and system totally inoperative.
  • Page 43 LOAD SETUP DEFAULTS ESC: Quit hifg : Select Item F6: Load BIOS Defaults F7: Load Setup Defaul t s Load Setup Defaults GA-8IRE Motherboard INTEGRATED PERIPHERALS HARDWARE MONITOR & MISC SETUP SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP...
  • Page 44 (3) Use the arrows to highlight the item "SAVE & EXIT SETUP" and press "Enter". System will ask "SAVE to CMOS and EXIT (Y/N)?" Press "Y" and "Enter" keys to confirm. Now the system will reboot automatically, the new BIOS setting will be taken effect next boot-up. AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.24b (C) 2001 American Megatrends, Inc.
