Step 1: Install the Central Processing Unit (CPU)

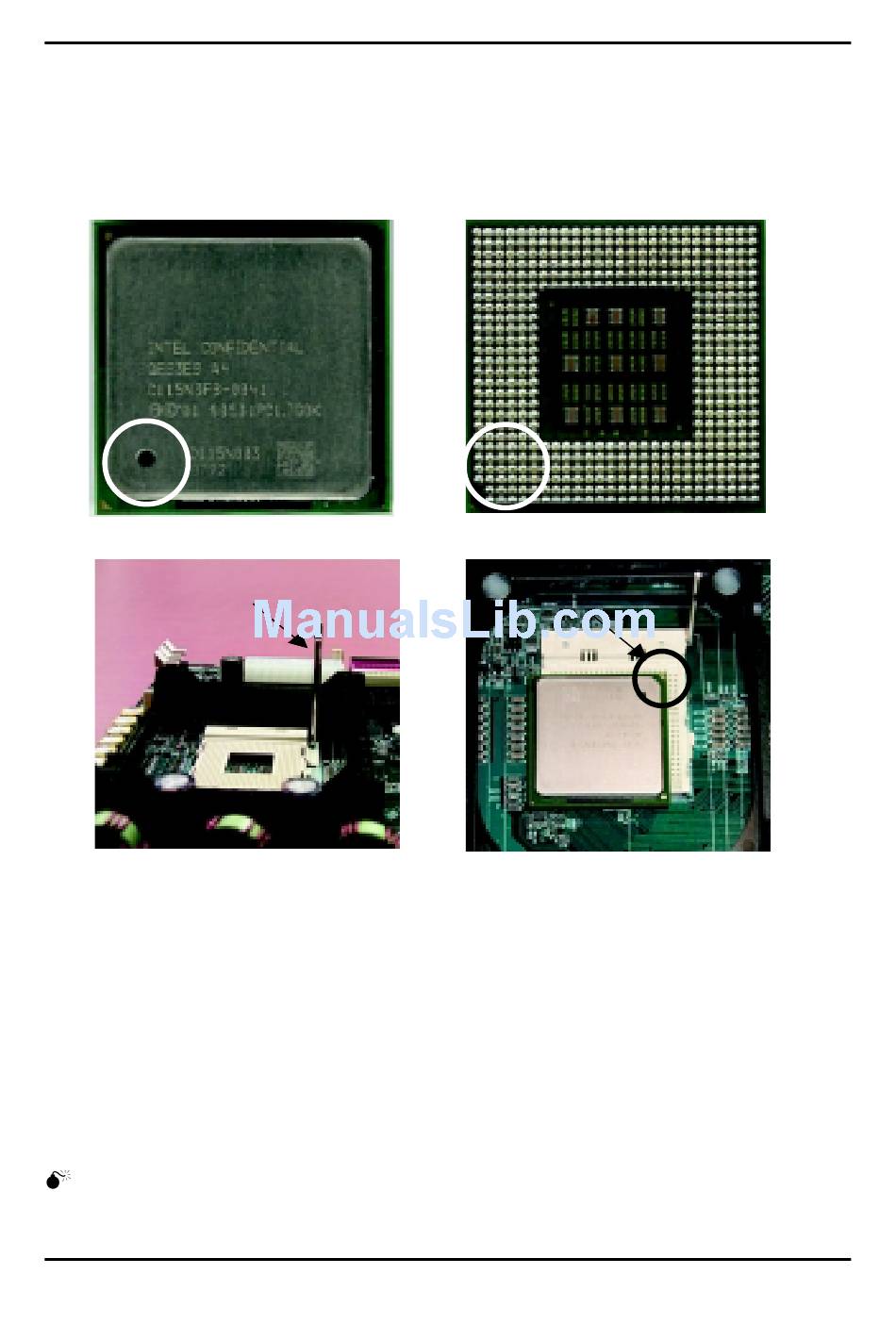

Pin1 indicator

CPU Top View

Socket Actuation Lever

1. Pull up the CPU socket level

and up to 90-degree angle.

3. Press down the CPU socket lever and

finish CPU installation.

Please make sure the CPU type is supported by the motherboard.

Pin1indicator

CPU Bottom View

Pin1 indicator

2. Locate Pin 1 in the socket and look

for a (golden) cut edge on the CPU

upper corner. Then insert the CPU

into the socket.

1 0
