GA-8ITX Series Motherboard

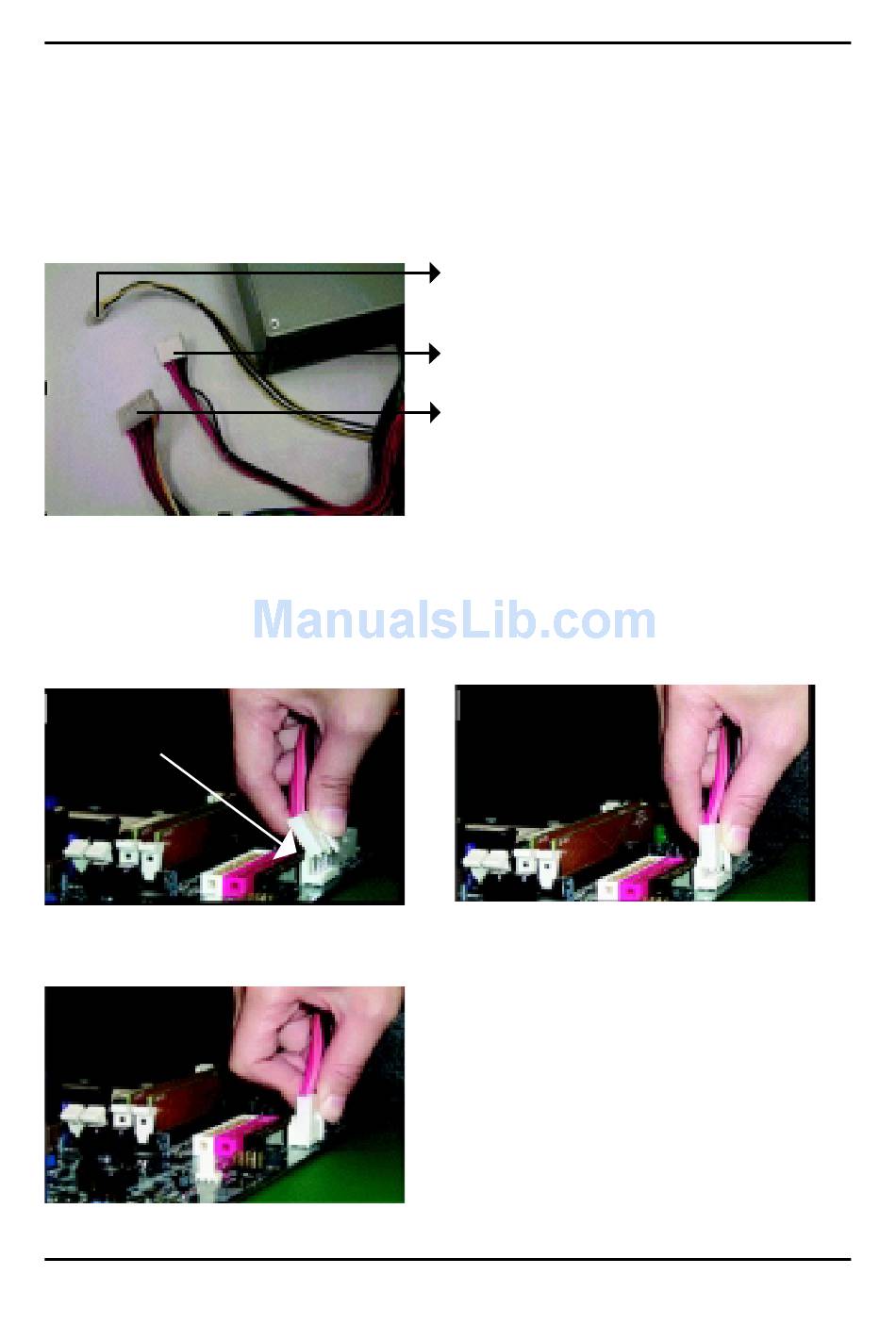

ATX 12V Power Supply Introduction

-Additional 4 pin connector for 12V voltage
-Backward compatibility maintained with load sharing capability
-Support 12V or 5V CPU VRs
Check power supply if it is supported by ATX12V Power Supply.

6 Pin Aux. Power Connector

Step1: In a 45° angle position, align the tooth of aux.
Power cable onto the gird of aux. Power socket.
Tooth
Figure 1
Step3: Properly installed shown below.
Figure 3
Additional dedicated 12V 4-pin power connector
6Pin auxiliary ATX power connector
ATX power connector
Step2: Insert the aux. Power cable downward.
2 6
Figure 2
