The Product pressurizes the pneumatic system to the target pressure. While the
Product pumps air into the pneumatic system, the pressure measurement and a
graph of the pressure shows on the display. See Figure 41.
7. Push the Stop softkey to stop the test.
A Vent softkey shows on the display. The pressure remains at the level it was
when the Stop softkey was pushed.
8. Either push the Vent softkey to vent the pressure system or change the
pressure and push the Start softkey to do another test.

Check a Manometer

The manometer function sets the Product up as a pressure gauge to measure
pressure supplied by an external source.
To measure pressure:
1. Connect the pressure port to a pneumatic system as shown in Figure 42.
Blood Pressure
Gauge
Squeeze
Pressure Pump
2. From the NIBP screen, push the Tests softkey.

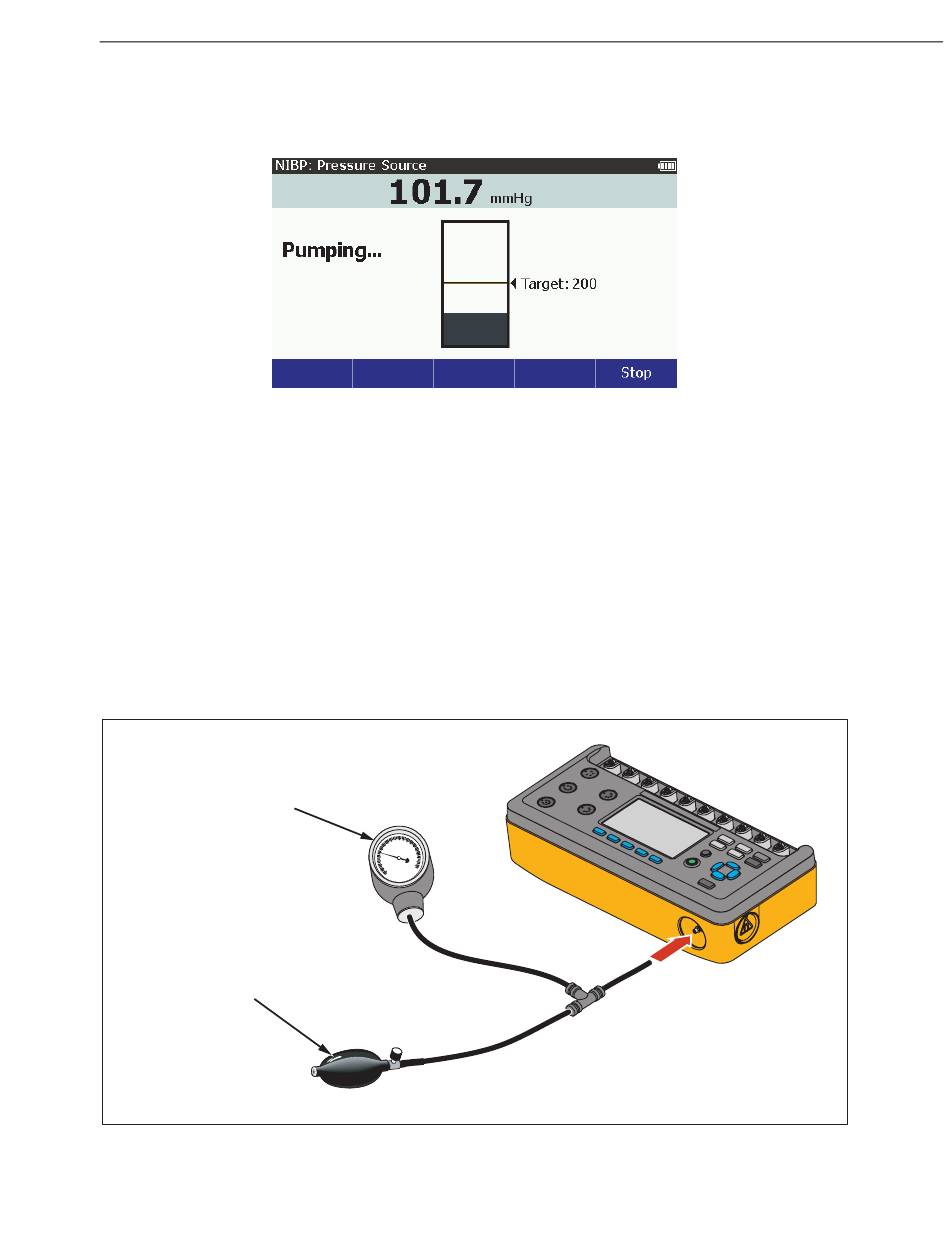

Figure 41. Pressure Source Pumping Screen
Figure 42. Manometer Connections
