Simulate Temperature

Temperatures simulated by the Product are compatible with Yellow Springs,
Inc. (YSI) Series 400 and 700 probes. The type of cable connected to the
temperature jack sets the type of temperature probe simulated. Connect the
temperature input of the UUT to the Temperature jack as shown in Figure 24.
Patient
Monitor
To set the simulated temperature:
1. Push .
2. Push , , , or  to highlight the Temperature selection then push  to
show the set temperature on the display.
3. Push .
4. Push  or  to change the temperature in 0.5 °C steps between 30.0 °C
and 42.0 °C.
When you hold down the direction key, the step size changes to
°
1.0 C until the key is released.
5. Push  to set the temperature and go back to the Temperature screen.
Temperature
Cable

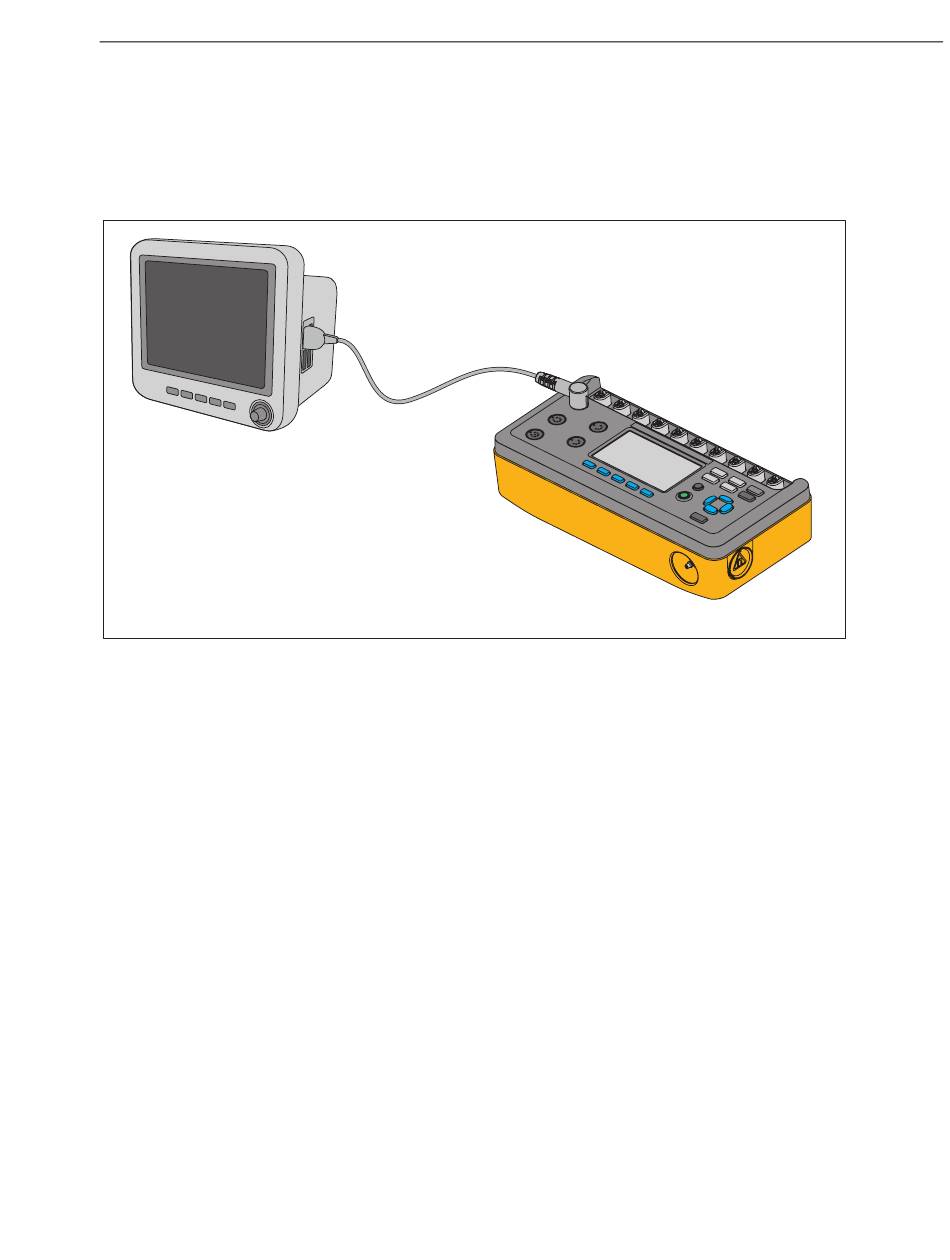

Figure 24. Temperature Simulation Connection
