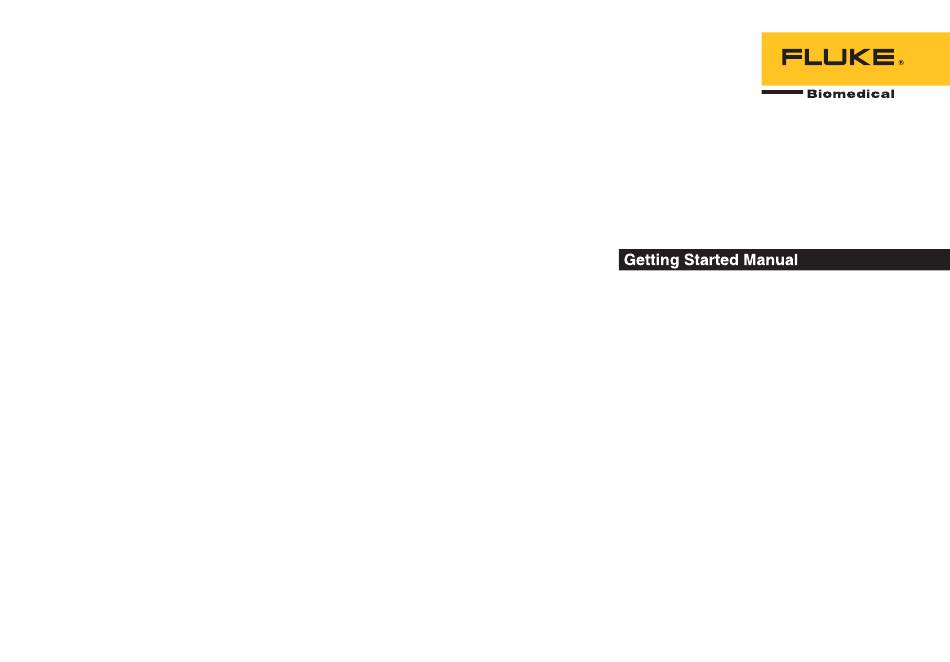

- Page 1 ProSim™ 8 Vital Signs Simulator PN 3984515 January 2011, Rev. 3, 3/16 © 2011-2016 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
- Page 2 Fluke Biomedical warrants this instrument against defects in materials and workmanship for one year from the date of original purchase OR two years if at the end of your first year you send the instrument to a Fluke Biomedical service center for calibration.
- Page 3 Copyright Release Fluke Biomedical agrees to a limited copyright release that allows you to reproduce manuals and other printed materials for use in service training programs and other technical publications. If you would like other reproductions or distributions, submit a written request to Fluke Biomedical.
- Page 4 ServiceDesk@fluke.com To ensure the accuracy of the Product is maintained at a high level, Fluke Biomedical recommends the product be calibrated at least once every 12 months. Calibration must be done by qualified personnel. Contact your local Fluke Biomedical representative for...
- Page 5 Restrictions and Liabilities Information in this document is subject to change and does not represent a commitment by Fluke Biomedical. Changes made to the information in this document will be incorporated in new editions of the publication. No responsibility is assumed by Fluke Biomedical for the use or reliability of software or equipment that is not supplied by Fluke Biomedical, or by its affiliated dealers.
-
Page 7: Intended Use
Introduction The intended user is a trained biomedical equipment technician who performs periodic preventative The Fluke Biomedical ProSim™ 8 Vital Signs Simulator maintenance checks on patient monitors in service. Users (hereafter the Product) is a full-featured, compact, can be associated with hospitals, clinics, original... -
Page 8: Safety Information
ProSim™ 8 Getting Started Manual Safety Information • Examine the case before you use the Product. Look for cracks or missing In this manual, a Warning identifies hazardous conditions plastic. Carefully look at the insulation and actions that could cause bodily harm or death. A around the terminals. - Page 9 Vital Signs Simulator Safety Information • Remove all probes, test leads, and • Replace the mains power cord if the accessories before the battery door is insulation is damaged or if the insulation opened. shows signs of wear. • The battery door must be closed and •...
- Page 10 • Repair the Product before use if the battery • Do not short the battery terminals together. leaks. • Do not keep cells or batteries in a • Use only Fluke Biomedical approved container where the terminals can be power adapters to charge the battery. shorted.
- Page 11 Vital Signs Simulator Symbols Symbols Table 1 describes symbols used in association with the Product. Table 1. Symbols Symbol Description Symbol Description WARNING - RISK OF DANGER. WARNING. HAZARDOUS VOLTAGE. Risk of electric Consult user documentation. shock. Input jack for the DC output of the AC-DC supply Magnetic Field ...
-
Page 12: Instrument Familiarization

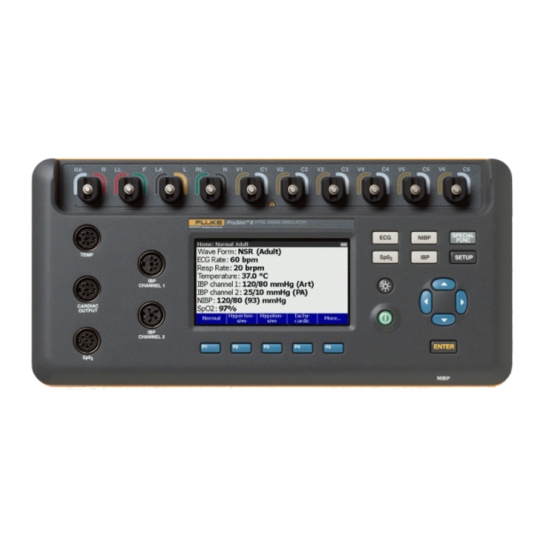

ProSim™ 8 Getting Started Manual Instrument Familiarization Table 2 is a list of Product top-panel controls and connections shown in Figure 1. glh034.eps Figure 1. Top-Panel Controls and Connections... - Page 13 Vital Signs Simulator Instrument Familiarization Table 2. Top-Panel Controls and Connections Item Name Description ECG Posts Connection posts for Device Under Test (DUT) ECG leads. Accesses the ECG waveforms (adult, pediatric, and arrhythmias), and ECG test functions ECG Function ...
- Page 14 ProSim™ 8 Getting Started Manual Table 2. Top-Panel Controls and Connections (cont.) Item Name Description LCD Display Color display. SpO2 Connector Connector to the SpO2 accessory. IBP Channel 2 Connector Connector to an IBP input of the patient monitor. ...
- Page 15 Vital Signs Simulator Instrument Familiarization Table 3 is a list of Product controls and connections shown in Figure 2. Back Front Right glh035.eps Figure 2. Back, Front, and Side Panel Connections...
- Page 16 ProSim™ 8 Getting Started Manual Table 3. Back, Front, and Side Panel Connections Item Name Description AC/DC Supply Connector Input jack for the DC output of the AC/DC supply connector. Battery Charge LED Battery charges when LED shows red. Green shows battery charge is complete. ...
-
Page 17: General Specifications
Vital Signs Simulator How to Turn the Product On Push on the front panel to turn the Product on. The How to Turn the Product On startup screen shows on the display. When the self test is After you unpack and inspect the Product, fully charge the complete and no errors are sensed, the Home screen battery before the first use. - Page 18 ProSim™ 8 Getting Started Manual Power ..............Lithium-Ion rechargeable, 7.2 V, 31 Wh battery, 4300 mAh Battery Charger ............. 100 V to 240 V, 50/60 Hz input, 15 V/2.0 A output. For best performance, the battery charger should be connected to a properly grounded ac receptacle Battery Life ............
-
Page 19: Detailed Specifications
Vital Signs Simulator Detailed Specifications USA (FCC) ............47 CFR 15 Intentional Radiators: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. (15.19). Changes or modifications not expressly approved by Fluke could void the user's authority to operate the equipment. - Page 20 ProSim™ 8 Getting Started Manual Amplitude Accuracy ..........±(2 % of setting + 0.05 mV) ECG Rate ............... 10 BPM to 360 BPM in 1 BPM steps Rate Accuracy ............±1 % of setting ECG Waveform Selection ........Adult (80 ms) or pediatric (40 ms) QRS duration ST-Segment Elevation ..........
- Page 21 Vital Signs Simulator Detailed Specifications Arrhythmia Baseline NSR ............80 BPM PVC Focus ............. Left focus, standard timing (except where specified) Supraventricular Arrhythmia........ Atrial fibrillation (coarse or fine); atrial flutter; sinus arrhythmia; missed beat (one time); atrial tachycardia; paroxysmal atrial tachycardia; nodal rhythm; and supraventricular tachycardia.
- Page 22 ProSim™ 8 Getting Started Manual Symptomatic Tachycardia Regular Narrow-complex Tachycardias (QRS <0.12 seconds) Sinus Tachycardia ........>150 BPM Supraventircular Tachycardia ..... SVT Regular Wide-complex Tachycardias (QRS ≥0.12 seconds) Sinus Tachycardia ........>150 BPM Supraventircular Tachycardia ..... SVT with aberrancy Irregular Tachycardia ........Atrial Fibrillation (Coarse and fine), Atrial Flutter, unstable monomorphic ventricular tachycardia (120 BPM to 300 BPM), Torsade De Pointes/Polymorphic ventricular tachycardia (long QT interval) ECG-Performance-Testing...
- Page 23 Vital Signs Simulator Detailed Specifications R-wave Detection Waveform ............Triangular pulse Rate ..............30 BPM, 60 BPM, 80 BPM, 120 BPM, 200 BPM, and 250 BPM Width ..............8 ms to 20 ms in 2 ms steps, and 20 ms to 200 ms in 10 ms steps Width Accuracy ...........
-
Page 24: Invasive Blood Pressure
ProSim™ 8 Getting Started Manual ECG Artifact Type ................ 50 Hz, 60 Hz, muscular, baseline wander, respiration Size ................. 25 %, 50 %, 100 % of the normal sinus R-Wave for each lead Lead Select ............All, RA, LL, LA, V1, V2, V3, V4, V5, V6 Fetal / Maternal-ECG Fetal Heart Rate (Fixed) ........ - Page 25 Vital Signs Simulator Detailed Specifications Dynamic Waveforms Types (default pressures) ........Arterial (120/80) Radial artery (120/80) Left ventricle (120/00) Right ventricle (25/00) Pulmonary artery (25/10) Pulmonary-artery wedge (10/2) Right atrium (central venous or CVP) (15/10) Pressure Variability ..........Systolic and diastolic pressures are independently variable in 1 mmHg steps. Swan-Ganz Sequence ...........
-
Page 26: Cardiac Output
ProSim™ 8 Getting Started Manual Baseline ..............500 Ω, 1000 Ω (default), 1500 Ω, 2000 Ω, Leads I, II, III Baseline Accuracy ..........±5 % Respiration Lead ........... LA or LL (default) Apnea Selection ............ 12 seconds, 22 seconds, or 32 seconds (one-time events), or continuous (Apnea ON = respiration OFF) Power-On Default .......... -
Page 27: Non-Invasive Blood Pressure
Vital Signs Simulator Detailed Specifications Non-Invasive Blood Pressure Pressure Units ............mmHg or kPa Manometer (Pressure Meter) Range ..............0 mmHg to 400 mmHg Resolution ............0.1 mmHg Accuracy.............. ±(0.5 % reading +0.5 mmHg) Pressure Source Target Pressure Range ........15 mmHg to 400 mmHg Resolution ............ - Page 28 Saturation within UUT specific range ..±(1 count + specified accuracy of the UUT) Saturation outside UUT specific range ..monotonic with unspecified accuracy With Fluke Biomedical R-curves 91 % to 100 % ..........±(3 counts + specified accuracy of the UUT) 81 % to 90 % ..........
- Page 29 Masimo Rainbow Technology ......Masimo Rainbow technology with an optional adapter supplied by Masimo that allows the ProSim two wavelength to test the Rainbow multiple wavelength system Compatible Manufacturer Products With manufacturer R-curve ......... Nellcor, Masimo, Nonin, and Nihon Kohden With Fluke Biomedical R-curve ......Mindray, GE-Ohmeda, Philips/HP, and BCI...
- Page 30 ProSim™ 8 Getting Started Manual Pre-Defined Simulations Normal Hypertensive Hypotensive Tachycardic Bradycardic Ventricular Fibrillation Asystole Autosequences (default) Monitor testing sequence Medical training sequence Oximeter testing sequence Cardiac failure sequence Arrhythmia sequence Exercise sequence Respiration sequence Performance Wave Test IBP testing sequence Temperature sequence...
