Simulate Invasive Blood Pressure Tests - Fluke Biomedical ProSim 8 User Manual

To set the artifact:
Artifact value is not available when the Chamber value is set to
Static.
1. Push  or  to highlight the Artifact value on channel 1 or channel 2.
2. Push .
3. Push  or  to highlight 5% or 10% if the chamber parameter is set to
Arterial, Radial Artery, or Left Ventricle. Highlight 5 mmHg or 10 mmHg
for all other chamber values. Highlight Off to turn off the artifact function.
The artifact values show in percent (%) or in mmHg. These units are
set by the chamber value.
4. Push  to set the artifact value and go back to the IBP screen.
The IBP screen reappears on the display with the new artifact selection.

Simulate Invasive Blood Pressure Tests

The Product can simulate pressures that occur during a Swan-Ganz or Cardiac

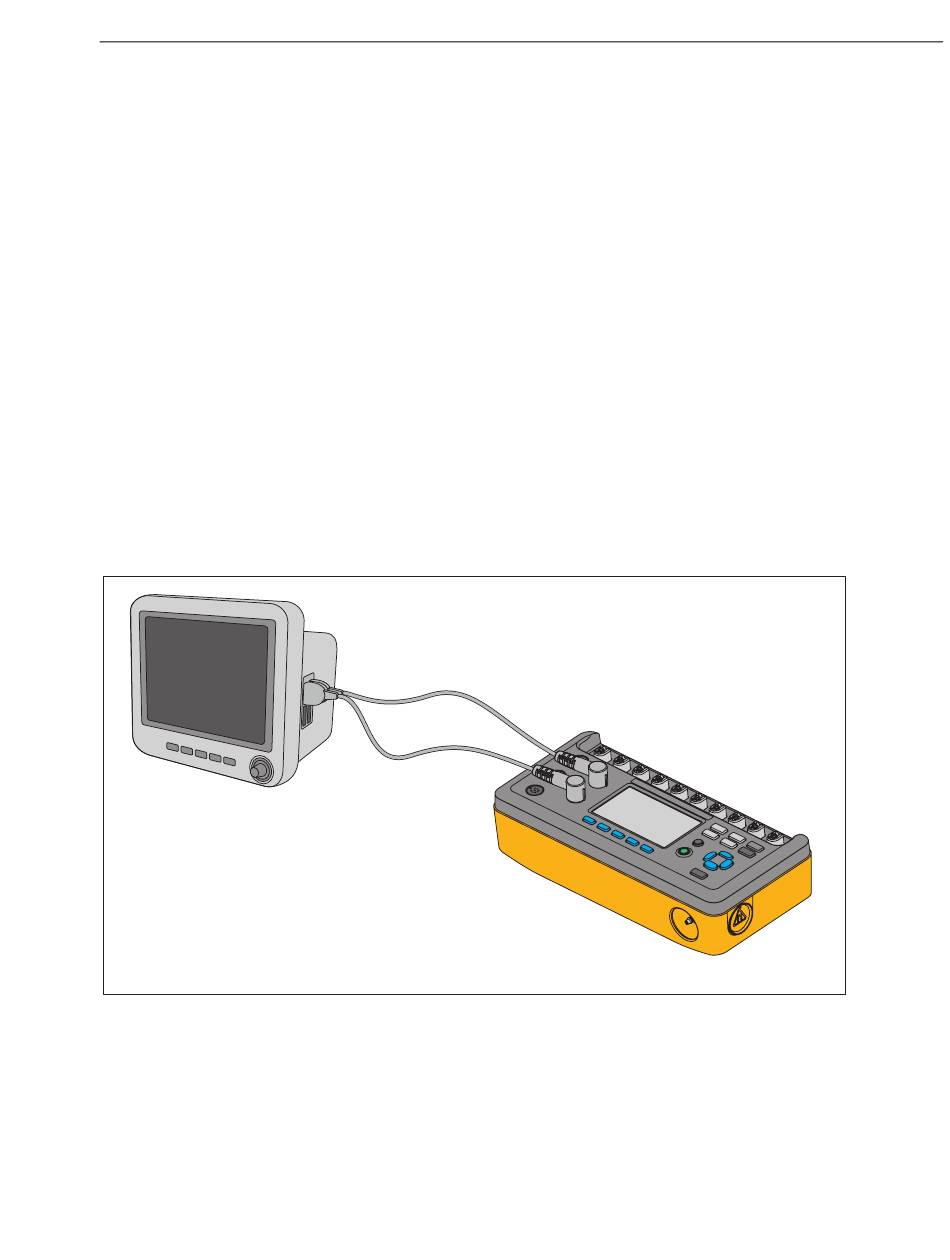

Catheterization procedure. Figure 18 shows a monitor connected to the two IBP
channel jacks on the Product.
Patient
Monitor
Note
Note
IBP Cables
Figure 18. Invasive Blood Pressure Connections
Invasive Blood Pressure Simulation and Tests
ProSim 8
Vital Signs Simulator
glh028.eps
33
