Vital Signs Simulator
Fetal Simulation
Fetal Monitor
Maternal Thigh
Fetal ECG
Reference Plate
Fetal Scalp
Input
Electrode
Intrauterine
Blood Pressure
Input
Jumper
Wires
BP Cable
IBP Channel 1
ProSim 8
glh058.eps

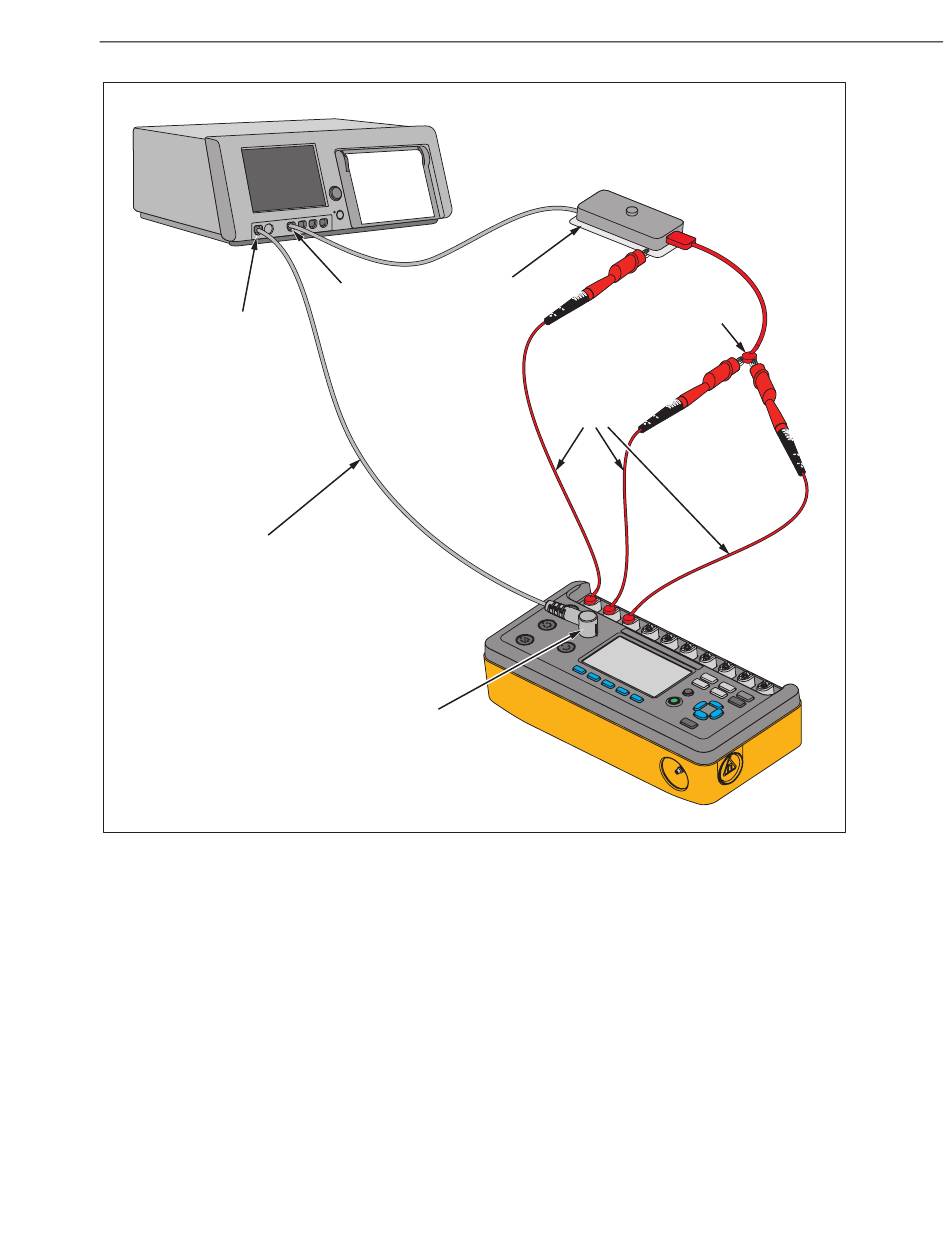

Figure 13. Fetal Monitor Connections for Intrauterine Pressure Simulation
Note
The maternal thigh reference plate is an accessory provided by fetal
monitor OEM, not by Fluke Biomedical, for internal FHR and FECG
recording. The 3-lead leg plate employs a single skin electrode as a
reference, positioned on the mother's thigh.
