the display and updates with real-time simulation data. The time until the
contraction ends is also shows on the display. See Figure 15.
If the Contraction value is set to Manual Start, only one contraction cycle is
simulated.
The timer shows the time until the contraction ends and the subsequent
contraction starts.
Push the Stop softkey to stop contractions and go back to the Fetal ECG: IUP
screen.

Invasive Blood Pressure Simulation and Tests

The Product simulates blood pressure for Invasive blood pressure monitors. You
can set each blood pressure variable through the front-panel controls. The
Product also simulates Swan-Ganz and cardiac catheterization procedures.

Set the Invasive Blood Pressure Variables

The Product can simulate two invasive blood pressure transducers at one time.
The blood pressure variables are set separately for each channel. To set these
variables, push  to show the IBP screen in Figure 16 on the display.

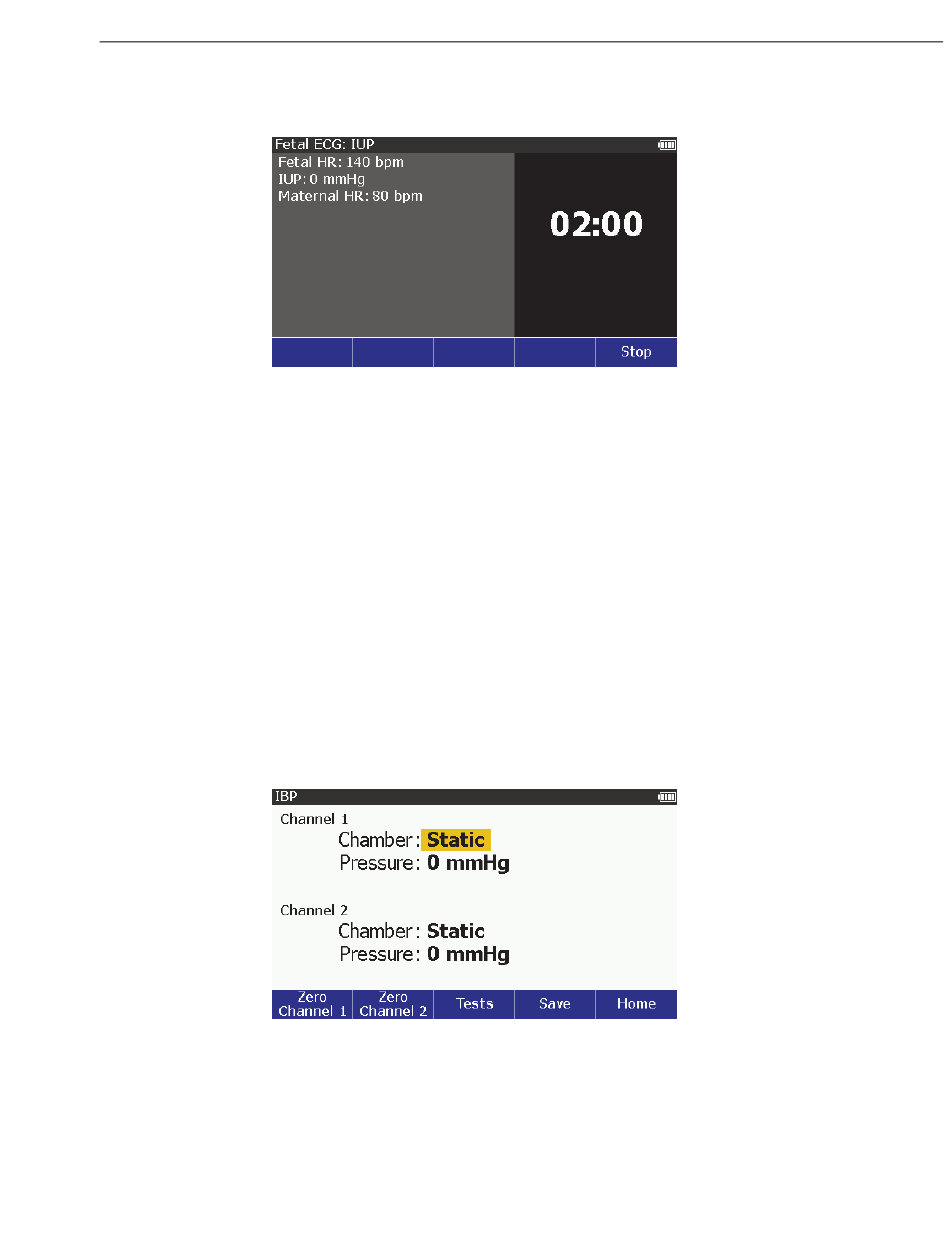

Figure 15. Fetal ECG Intrauterine Pressure Screen
Figure 16. Invasive Blood Pressure Screen
Invasive Blood Pressure Simulation and Tests
