Summary of Contents for CYP PU-8H8HBTPL-4K

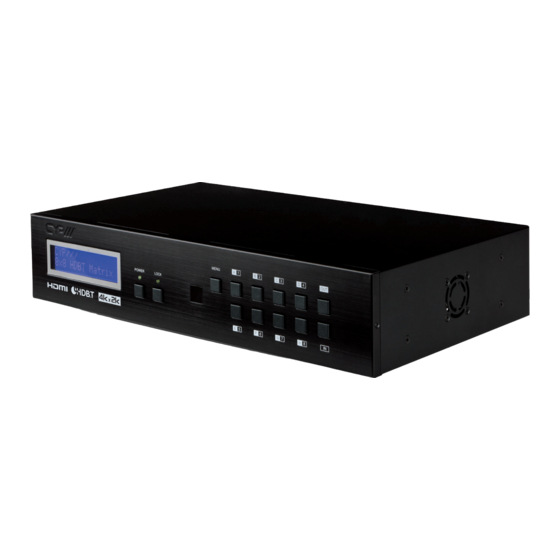

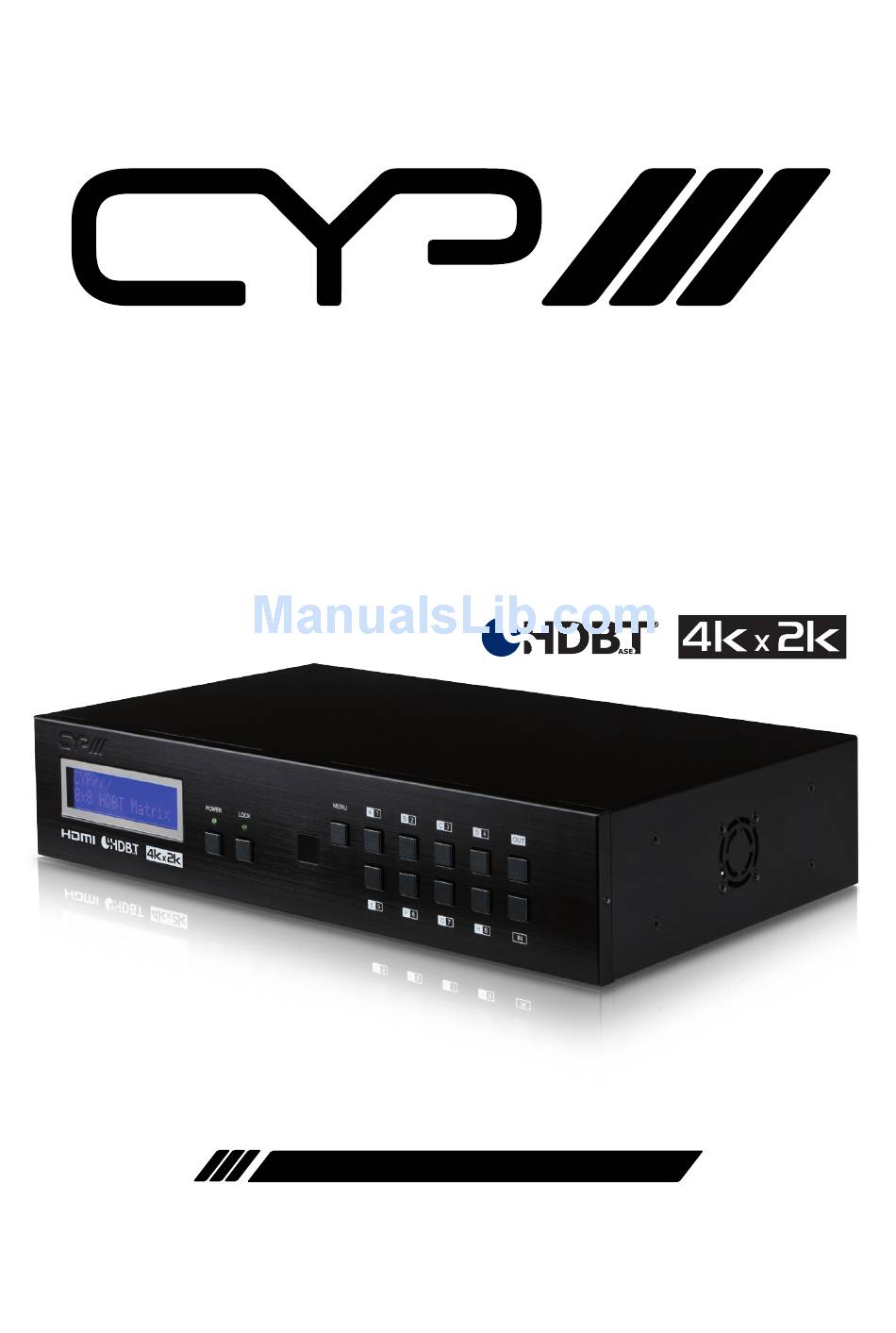

  • Page 1 PU-8H8HBTPL-4K 8 x 8 HDMI HDBaseT™ LITE Matrix(with PoE & 4K resolution support) OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Side Panel ...........10 6.4 Remote Control ........10 6.5 IR Cable Pin Assignment .......11 6.6 RS-232 Pin Assignment......12 6.7 RS-232 &...
  • Page 6: Introduction

    3D content that can be displayed when connecting a 3D TV and 3D source. This matrix features control via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports UART RS232 pass-through and CEC control function of both sources and screens using Telnet, Web GUI or RS232.
  • Page 7: Features

    5. FEATURES HDMI, HDCP 1.1 and DVI compliant Supports resolutions VGA~WUXGA, 4K2K@24/25/30Hz & YUV_420 @60Hz and 480i~1080p dependent upon the output display’s EDID settings Supports uncompressed video/audio up to 10.2Gbps Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission Supports distances up to 60 meters through CAT6/7 cables Supports 3D signal display dependent upon the output display EDID...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER LOCK LCM : Displays the setting information of each input and output setting. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode.
  • Page 9: Rear Panel

    6.2 Rear Panel IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CONTROL CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN IR IN IR IN...
  • Page 10: Side Panel

    6.3 Side Panel Fan Ventilator: These are air ventilation areas, DO NOT block these areas or cover it with any object. Please allow adequate space around the unit for air circulation. 6.4 Remote Control POWER: Press this button to switch on the device or set it to standby mode.
  • Page 11: Ir Cable Pin Assignment

    6.5 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Receiver IR Signal Power Ground...
  • Page 12: Rs-232 Pin Assignment

    6.6 RS-232 Pin Assignment Matrix Remote Control Console Assignment Assignment Baud Rate: 19200 bps Data bit: 8 bits Parity: None Stop Bit: 1 Flow Control: None...
  • Page 13: Rs-232 & Telnet Commands

    6.7 RS-232 & Telnet Commands Command Description A1~A8 Switch Output A to 1~8 B1~B8 Switch Output B to 1~8 C1~C8 Switch Output C to 1~8 D1~D8 Switch Output D to 1~8 E1~E8 Switch Output E to 1~8 F1~F8 Switch Output F to 1~8 G1~G8 Switch Output G to 1~8 H1~H8...
  • Page 14: Rs-232 Uart Command Illustration Diagram

    6.8 RS-232 UART Command Illustration Diagram Note: This command IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT allows RS-232 to control UARTSW 0 CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT...
  • Page 15 RS-232 Equipped Device UARTSW 5 Note: This command IR1 Extender HDMI Out RS232 Out IR2 Blaster allows control of the RS-232 device connected IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT UARTSW 5 CAT5e/6 OUT CAT5e/6 OUT...
  • Page 16: Telnet Control

    6.9 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"...
  • Page 17 This will bring us into the device which we wish to control. Type "HELP" to list the available commands. Type “IPCONFIG” To show all IP configurations. To reset the IP, type “RSTIP” and to use a set static IP, type ”SETIP” (For a full list of commands, see Section 6.7).
  • Page 18: Web Gui Control

    6.10 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages.
  • Page 19 Clicking on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
  • Page 20: Connection Diagram

    7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE Power Link Power Link Power Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster RS232 Out CAT5e/6 In CAT5e/6 In...
  • Page 21 ZONE ZONE ZONE ZONE Displays HDMI Outputs IR Out/In Receiver Units Power Link Power Link Power Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster RS232 Out...
  • Page 22: Specifications

    8. SPECIFICATIONS Video Bandwidth 300 MHz/9 Gbps Input Ports 8×HDMI, 9×IR Extender, 1×RS-232, 1xLAN, 1×Mini USB-B type (for firmware update only) Output Ports 8×CAT5e/6/7, 9×IR ESD Protection Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Contact discharge) Power Supply 24 V/6.25 A DC (US/EU standards, CE/FCC/UL certified) Dimensions 438 mm (W)×235 mm (D)×88mm (H)/Jacks...
  • Page 23: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Module Universal Serial Bus Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array...
  • Page 25 PU-8H8HBTPL-4K 8 x 8 HDMI HDBaseT™ LITE Matrix(with PoE & 4K resolution support) OPERATION MANUAL...
