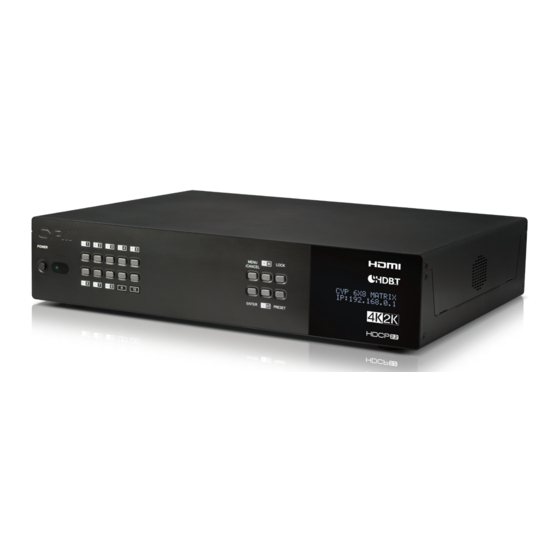

CYP PUV-1210PL-RX Operation Manual

6 x 8 hdmi hdbaset™ lite matrix with audio matricing (4k, hdcp2.2, hdmi2.0, poh, oar, 60m)
Hide thumbs Also See for PUV-1210PL-RX:
Table of Contents

Advertisement

Quick Links

Download this manual
PUV-662PL-4K22
6 x 8 HDMI HDBaseT™ LITE Matrix with Audio Matricing
(4K, HDCP2.2, HDMI2.0, PoH, OAR, 60m)
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUV-1210PL-RX and is the answer not in the manual?

Questions and answers

Related Manuals for CYP PUV-1210PL-RX

Summary of Contents for CYP PUV-1210PL-RX

  • Page 1 PUV-662PL-4K22 6 x 8 HDMI HDBaseT™ LITE Matrix with Audio Matricing (4K, HDCP2.2, HDMI2.0, PoH, OAR, 60m) OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........7 4. System Requirements ......7 5. Features ..........8 6. Operation Controls and Functions ..9 6.1 Front Panel ........... 9 6.2 Rear Panel ...........10 6.3 Side Panel ...........12 6.4 Remote Control ........13 6.5 OLED Menu ..........14 6.6 IR Cable Pin Assignment .......15 6.7 RS-232 Protocol ........15...

  • Page 6: Introduction

    1. INTRODUCTION This 6×8 HDMI and HDBaseT Matrix supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio (multi-channel digital/stereo analogue) while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as six UltraHD sources may be routed to any of eight destinations, six via single Cat.5e/6/7 cables (up to 60m at 1080p or up to 35m at 4K@30Hz) and two via HDMI 2.0 outputs.

  • Page 7: Package Contents

    3. PACKAGE CONTENTS 1× 6 by 8 HDMI and HDBaseT Matrix with Audio Matrixing 1× Remote Control (CR-163) 2× IR Blaster Cable 2× 24V/6.25A DC Power Adaptor 2× Power Cord 1× Rack Ear Set 1× Operation Manual 4. SYSTEM REQUIREMENTS HDMI or DVI source equipment such as media players, video game consoles, set-top boxes, PCs or laptops.

  • Page 8: Features

    5. FEATURES HDMI 2.0, HDCP 1.4 and HDCP 2.2 compliant Routes 6 HDMI sources to 8 displays using 6 HDBaseT outputs and 2 independent or mirrored HDMI outputs HDBaseT feature support: High-Definition video and audio, 48v PoH (Power over HDBaseT) and control (Bi-directional IR & RS-232 pass through) Supported HDBaseT resolutions: VGA~WUXGA, 480i~1080p, 4K@24/25/30Hz (RGB, YUV 4:4:4 &...

  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU LOCK /CANCEL POWER ENTER PRESET POWER: Press this button to power the unit on or place it into stand- by mode. Note: Network functionality and PoH (if the second power supply is connected) remain active when the unit is in stand-by mode.

  • Page 10: Rear Panel

    tree. Otherwise, in routing mode, this button allows you to make your input source selection. -/OUT: Within the menu, this button moves you down within the menu tree. Otherwise, this button starts routing mode and allows you to begin your output destination selections. PRESET: Press this button to recall saved presets.
  • Page 11 control the matrix remotely and will also be broadcast from IR blasters connected to the appropriate IR Out/All IR Out ports. Note: 4K signals with HDR (High Dynamic Range) or Deep Colour are supported by the 2 HDMI output ports, however they are not supported by the HDBaseT outputs due to bandwidth limitations.

  • Page 12: Side Panel

    sources can be paired with the video from any HDMI input. DIGITAL AUDIO IN 1~2: Accepts digital audio (LPCM 2.0 only) from sources such as Blu-ray players, game systems, PCs, etc. These audio sources can be paired with the video from any HDMI inputI. CONTROL: Connect directly, or through a network switch, to your PC/ laptop to control the unit via Telnet/WebGUI.

  • Page 13: Remote Control

    6.4 Remote Control POWER: Press to power the unit on or place it MUTE LOCK POWER into stand-by mode. LOCK: Press to lock/unlock the front panel of the matrix unit. MUTE: Mutes Zone Audio outputs. HDBaseT audio can only be muted when an independent, 10/J PATTERN MENU/...

  • Page 14: Oled Menu

    6.5 OLED Menu 1ST LEVEL 2ND LEVEL 3RD LEVEL EDID EDID Mode Independent EDID Select 1~6 (Default EDID settings) 7~14 (Sink's EDID settings) 15~18 (User's EDID settings) Network Link Status (Idle) IP Address Subnet Mask Gateway Address MAC Address DHCP mode HDMI Mirroring Output G Output H...

  • Page 15: Ir Cable Pin Assignment

    6.6 IR Cable Pin Assignment IR Blaster Power IR Signal IR Extender IR Signal Power Ground 6.7 RS-232 Protocol MATRIX REMOTE CONTROLLER Assignment Assignment ► ◄ Baud Rate: 115200bps Data Bits: 8 Parity: None Flow Control: None Stop Bits: 1...

  • Page 16: Rs-232 And Telnet Commands

    6.8 RS-232 and Telnet Commands 6.8.1 Command Syntax The RS-232/Telnet command structure for this unit is both flexible and powerful, and allows for multiple parameters to be set across multiple ports simultaneously within a single command transmission. This section will detail the command syntax used to send both simple (single port/ single parameter) commands as well as the more complex (multi-port/ parameter) commands.
  • Page 17 number of ports on that specific interface. <Command> {Port1}+{Port2}+{Etc.} {Parameter [= Value]} Examples: ZoneLineOut A+B+C Treble = -12 HDBT_Out A+D+F Mute Multi-Slot Command Format (ZoneAvPair) The ZoneAvPair command allows for multiple slots on a single HDBaseT or HDMI output to be assigned the same value simultaneously. Use the following syntax to accomplish this.
  • Page 18 Complex Multi-Port/Parameter Command Format It is possible to have a single command that affects multiple ports with multiple groupings of parameters. All previously explained syntax rules must be observed and each additional set of ports/parameters are separated by the “&” character. <Command>...
  • Page 19 COMMAND DESCRIPTION ZoneAvPair HDBT_Out A Slot 1 Load Load the 1st A/V pairing for HDBaseT Output A’s zone Optical Audio Return (OAR) Command Example If you are also using the Zone Audio outputs (Stereo Zones) for any zone we recommend using the Optical Audio Return (OAR) function to set the Zone Audio output to always play the audio coming from the TV itself.
  • Page 20 Audio Only source selection Command Examples This unit offers 4 direct audio only inputs, while some of these inputs will likely be used for down mixed audio signals from surround sound sources (for stereo only zones) we expect audio only sources to be connected to deliver just audio to both TV zones and Audio Only zones.
  • Page 21 Combined Audio and Video Routing Command Example It is also possible to switch audio and video simultaneous by using an advanced command structure. In this case the individual parameters of the “HDBT_Out” command are separated by a comma. Please check section 6.8.1 for additional information on how commands can be combined.
  • Page 22 6.8.3 Full Command List COMMAND DESCRIPTION Help Display all available commands. (Except hidden commands.) Display all available commands. (Except hidden commands.) Help {Command} Detailed description of the specified command. ? {Command} Detailed description of the specified command. SaveMuteSetting ? Display the current Save Mute Setting configuration.
  • Page 23 COMMAND DESCRIPTION ZoneLineOut M Bass=XXX Set the bass value for a zone line output. M = A~F XXX = -12~+12 (units: dB) ZoneLineOut M Volume=XXX Set the volume for a zone line output. M = A~F XXX = 0 ~ -100 (units: dB) ZoneLineOut M Volume=Fast XXX Adjust the volume of a zone line output in large steps (2dB steps).
  • Page 24 COMMAND DESCRIPTION ZoneLineOut M Name={NameString} Set the verbose name of a zone line output. Maximum 32 characters. M = A~F Note: Can only rename one port at a time. Multi-port is not supported. ExtLineOut M AudioSrc=XXX Set the audio source for an extended line output.
  • Page 25 COMMAND DESCRIPTION ExtLineOut M Volume=Fast XXX Adjust the volume of an extended line output in large steps (2dB steps). M = 1~2 XXX = “Up” or “Down” ExtLineOut M Volume=Slow XXX Adjust the volume of an extended line output in small steps (0.5dB steps).
  • Page 26 COMMAND DESCRIPTION HDMI_Out M AudioSrc=XXX Set the audio source for an HDMI output. M = G~H Available XXX values: HDMI_In n [n = 1~6] OpticIn n [n = 1] CoaxIn n [n = 1] AnalogIn n [n = 1~2] OAR_In n [n = A~F] FollowVideo HDMI_Out M Mute Mute an HDMI output’s audio.
  • Page 27 COMMAND DESCRIPTION HDMI_Out M Status Display the status & properties of an HDMI output including audio/ video matrix. M = G~H HDMI_Out M Name={NameString} Set the verbose name of an HDMI output. Maximum 32 characters. M = G~H Note: Can only rename one port at a time.
  • Page 28 COMMAND DESCRIPTION HDBT_Out M VideoSrc=Pattern Set the video source of an HDBaseT output to the internal test pattern. M = A~F HDBT_Out M VideoSrc=Default Reset the video source of an HDBaseT Tx output to the factory default. M = A~F HDBT_Out M Status Display the status &...
  • Page 29 COMMAND DESCRIPTION IPCONFIG Display the current IP configuration. Enter light stand-by mode. (RS-232, Ethernet and PoH functionality is still active.) Turn the power on. Enter deep stand-by mode. (Only RS-232 functionality is still active.) Report the current power status. PRESET Save M Save the current A/V routing as a preset.
  • Page 30 COMMAND DESCRIPTION EDID All=XXX Set the EDID source for all HDMI input ports. Available XXX values: 1~6 [Factory EDIDs] 7~14 [Connected sink EDIDs] 15~18 [User EDIDs] EDID HDMI_In M=XXX Set the EDID source for a single HDMI port. M = 1~6 Available XXX values: 1~6 [Factory EDIDs] 7~14 [Connected sink EDIDs]...
  • Page 31 COMMAND DESCRIPTION Pattern type=XXX Set the colour to display the test pattern in. Available XXX values: Black Blue Green Cyan Magenta Yellow White FactoryDefault Reset all settings to their factory defaults. (Hidden command.) Display the MAC address. Display the firmware version. ZoneAvPair HDBT_Out M Slot N AudioSrc=XXX Assign an audio source to a Zone A/V Pair slot on an HDBaseT...
  • Page 32 COMMAND DESCRIPTION ZoneAvPair HDBT_Out M Slot N VideoSrc=XXX Assign a video source to a Zone A/ V Pair slot on an HDBaseT output. M = A~F N = 1~11 Available XXX values: HDMI_In n [n=1~6] Pattern Note: HDMI_In is not available for use with slot 11.
  • Page 33 COMMAND DESCRIPTION ZoneAvPair HDMI_Out M Slot N VideoSrc=XXX Assign a video source to a Zone A/ V Pair slot on an HDMI output. M = G~H N = 1~11 Available XXX values: HDMI_In n [n=1~6] Pattern Note: HDMI_In is not available for use with slot 11.
  • Page 34 COMMAND DESCRIPTION IR_Route HDBT_Out M0 Show Display the current IR source of the HDBaseT output. M0 = A~F (supports multiple port selection by using “+”.) IR_Route IR_Out M0 M1 M2 Select the IR source(s) for an IR Output jack (next to each HDMI input).

  • Page 35: Telnet Control

    6.9 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC/Laptop are connected to the same active networks. To access Telnet in Windows 7, click on the “Start” menu and type “cmd” in the search field, then press “Enter”.
  • Page 36 Once in the CLI (Command Line Interface) type “Telnet” followed by the IP address of the unit and “23”, then hit “Enter”. This will connect us to the unit we wish to control. Type “help” to list the available commands. Note: Commands will not be executed unless followed by a carriage return.

  • Page 37: Webgui Control

    6.10 WebGUI Control Install the Device Discovery Tool Please obtain the Device Discovery software from your authorised dealer and save it in a directory where you can easily find it. Note: The unit’s default IP address is 192.168.1.50 Connect the unit and your PC/Laptop to the same active network and execute the Device Discovery software.
  • Page 38 Login to the WebGUI By default, both the Username and Password are “admin” for the WebGUI. The administrator password can be changed within the “User Config” tab of the WebGUI if desired. The above function tabs will always display on left side of the WebGUI to aid with navigation.
  • Page 39 6.10.1 Video Switch This page provides video routing settings including HDCP and test pattern configuration. Output and Input Routing To begin assigning a new video route, please click the button of the HDBaseT output you wish to send video to (e.g. “HDBT_Out A”) and then click on the button of the preferred HDMI input port (e.g.
  • Page 40 Output and Input Naming All inputs and outputs can be renamed as required. To rename the HDBaseT output ports and HDMI input ports please click the “edit” icon ( ). Click the “Save” button to confirm the change. Note: Blank spaces (“ ”) are not allowed in names.
  • Page 41 HDMI Output Setting The two HDMI outputs (port G & port H) allow support for the maximum HDMI timing up to 18Gbps (4096×2160@60Hz) and can be used for normal source routing (listed as “Independent” within the WebGUI) and mirroring (listed as “Mirror” within the WebGUI) for local monitoring purposes or zone monitoring (e.g.
  • Page 42 Internal Test Pattern This advanced matrix system comes with an internal test pattern generation feature which can be used to test connected sink device functionality or be used to self-test matrix unit itself. This is a useful tool for installation engineers to troubleshoot potential issues between the matrix and connected devices.
  • Page 43 Preset Setting This matrix can store up to eight video and audio routing presets. Presets can be utilised to store multiple different routing states in advance for rapid, hassle-free, recall. Store: Once you have the matrix set the way you like, you can click the “store”...
  • Page 44 6.10.2 Zone Audio This advanced matrix offers a complete audio routing function. The Zone Audio ports offer analogue audio breakaway capability. The audio source, treble, bass, volume and audio delay adjustments can be set on this page. Output and Input Routing Click the buttons from left to right to choose each output’s source.
  • Page 45 Audio Output Setting Click the “edit” icon ( ) to change the following settings: Rename: The Zone Audio outputs can be renamed here. Volume: Adjustable from -100dB to 0dB. Bass: Adjustable from -12dB to +12dB. Treble: Adjustable from -12dB to +12dB. Delay: Adjustable from 0 to 230ms.
  • Page 46 6.10.3 Extended Audio The Extended Audio ports offer additional analogue audio breakaway capability. The audio source, treble, bass, volume and audio delay adjustments can be set on this page. Output and Input Routing Click the buttons from left to right to choose each output’s source. Once the new source has been selected, the change will happen immediately.
  • Page 47 6.10.4 HDMI Audio The audio routed to the two HDMI outputs (ports: G & H) and their associated settings are adjusted on this page. Output and Input Routing Click the buttons from left to right to choose each output’s source. Once the new source has been selected, the change will happen immediately.
  • Page 48 6.10.5 HDBaseT Audio The audio routed to the six HDBaseT outputs (ports: A~F) and their associated settings are adjusted on this page. Output and Input Routing Click the buttons from left to right to choose each output’s source. Once the new source has been selected, the change will happen immediately. Audio source options include HDMI, Optical, Coaxial, Line, and OAR.
  • Page 49 HDBaseT Audio Output Setting Click the “edit” icon ( ) to change the following settings: Rename: The HDBaseT Audio outputs can be renamed here. Mute: Mute may be turned on or off. Follow Video Source: Clicking the selection bar switches between Enable (follow video) or Disable (don’t follow video).
  • Page 50 6.10.6 Zone A/V Pairing The zone A/V pairing function allows the end user to control the matrix, using the supplied remote control, in a customised manner while in remote rooms (zones) containing an HDBaseT receiver and IR extender. Each zone can have a different set of video/audio sources assigned to the buttons on the remote control for easy switching.
  • Page 51 Video and Audio Pairing Edit Please click the “edit” icon ( ) to edit the video and audio routing settings. Once you have completed your selections press “Save”. 6.10.7 EDID Settings This matrix provides the option of six standard EDIDs, eight sink sourced EDIDs and four customer uploaded EDIDs that can be assigned to each input port individually.
  • Page 52 Sink EDID Download To save an existing custom EDID to your local PC please press the “Download” button next to the Customer EDID Settings item you would like to save. An EDID Download window will appear, allowing you to save the EDID file to your local PC.
  • Page 53 The unit comes with the following 6 default EDIDs: FHD/2CH: 1080p/60Hz(148M), 2.0 LPCM, 8-bit colour. FHD/MCH: 1080p/60Hz(148M), 7.1 LPCM and bitstream, 8-bit colour. 4K UHD/2CH: 3840×2160p/30Hz (297M), 2.0 LPCM, deep colour (8/10/12-bit). 4K UHD/MCH: 3840×2160p/30Hz (297M), 7.1 LPCM and bitstream, Deep Colour (8/10/12-bit).
  • Page 54 6.10.9 User Config The WebGUI and Telnet username/password are set on this page. Two management levels are available: “Administrator” and “General User”. The administrator username (“admin”) cannot be changed. The “Administrator” user has access to change all settings. The “General User”...
  • Page 55 Click the “Download” button to save the current system configuration to your local PC. The current system configuration will be saved as XML file. The system configuration can also be restored from a saved XML file by clicking the “Choose File” button to locate the saved XML file, then clicking the “Restore”...

  • Page 56: Connection Diagram

    7. CONNECTION DIAGRAM AV Zones • HDMI Out • IR In/Out • PoH • OAR Extended Analogue Audio Source Audio Zones Devices Analogue CAT5e/6 Stereo Analogue Digital S/PDIF Outputs Outputs Stereo Inputs Inputs EXTENDED ANALOG DIGITAL ZONE IR IN IR IN CAT5e/6 OUT CAT5e/6 OUT IR IN...

  • Page 57: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth HDMI: 600MHz/18Gbps HDBaseT: 340MHz/10.2Gbps Input Ports 6×HDMI 4×RCA [Stereo Audio] 1×Coaxial [S/PDIF Audio] 1×Optical [S/PDIF Audio] Output Ports 2×HDMI 6×Cat.5e/6/7 12×RCA [Stereo Audio] 4×RCA [Extended Stereo Audio] Control Ports 7×IR Extender 7×IR Blaster 1×RS-232 (9-pin D-sub) 1×Control (RJ-45) Service Port...

  • Page 58: Video Specifications

    Silkscreen Colour Black Operating Temperature 0˚C - 40˚C/32˚F - 104˚F Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F Relative Humidity 20 - 90% RH (No-condensing) Power Consumption 140W 8.2 Video Specifications 8.2.1 Supported HDMI Resolutions HDMI Resolution (Hz) Input Output 480i@60 ...

  • Page 59: Audio Specifications

    8.2.2 Maximum HDMI Cable Length HDMI Resolution Input Output 8-bit 1080p 10 meters 10 meters 12-bit 1080p 10 meters 10 meters 3840×2160@60Hz (YCbCr 4:2:0) 5 meters 5 meters 3840×2160@60Hz (YCbCr 4:4:4) 3 meters 3 meters Note: 1. 18Gbps (4K@60Hz YCbCr 4:4:4) HDMI signals will be converted to 10.2Gbps (4K@60Hz YCbCr 4:2:0) signals when output over the six HDBaseT ports.
  • Page 60 8.3.2 Linear PCM Audio Channels (kHz) LPCM 2.0@44.1 LPCM 5.1@44.1 LPCM 7.1@44.1 LPCM 2.0@88.2 LPCM 5.1@88.2 LPCM 7.1@88.2 LPCM 2.0@176.4 LPCM 5.1@176.4 LPCM 7.1@176.4 LPCM 2.0@32 LPCM 5.1@32 LPCM 7.1@32 LPCM 2.0@48 LPCM 5.1@48 LPCM 7.1@48 LPCM 2.0@96 LPCM 5.1@96 LPCM 7.1@96 LPCM 2.0@192 LPCM 5.1@192...

  • Page 61: Category Cable Specifications

    8.4 Category Cable Specifications Cable Type Cable Length Supported Video Format Cat.5e/6 60 meters Most common Full HD video: Up to 1080p@60Hz, 36-bit colour Data rates lower than 5.3Gbps or below 225MHz TMDS clock 35 meters Full HD & Ultra HD video: 1080p@60Hz, 48-bit colour 4K@24/25/30Hz, 24-bit colour Cat.6a/7...

  • Page 62: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Category 5 (enhanced) Cable Cat.6 Category 6 Cable Cat.7 Category 7 Cable Command Line Interface Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HTTP HyperText Transfer Protocol...
  • Page 64 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.03...
