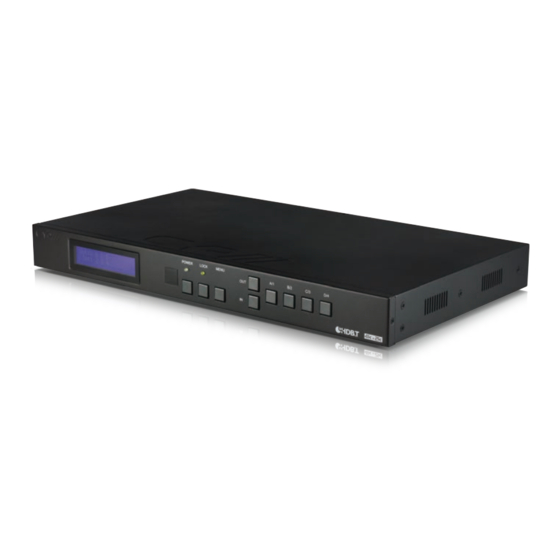

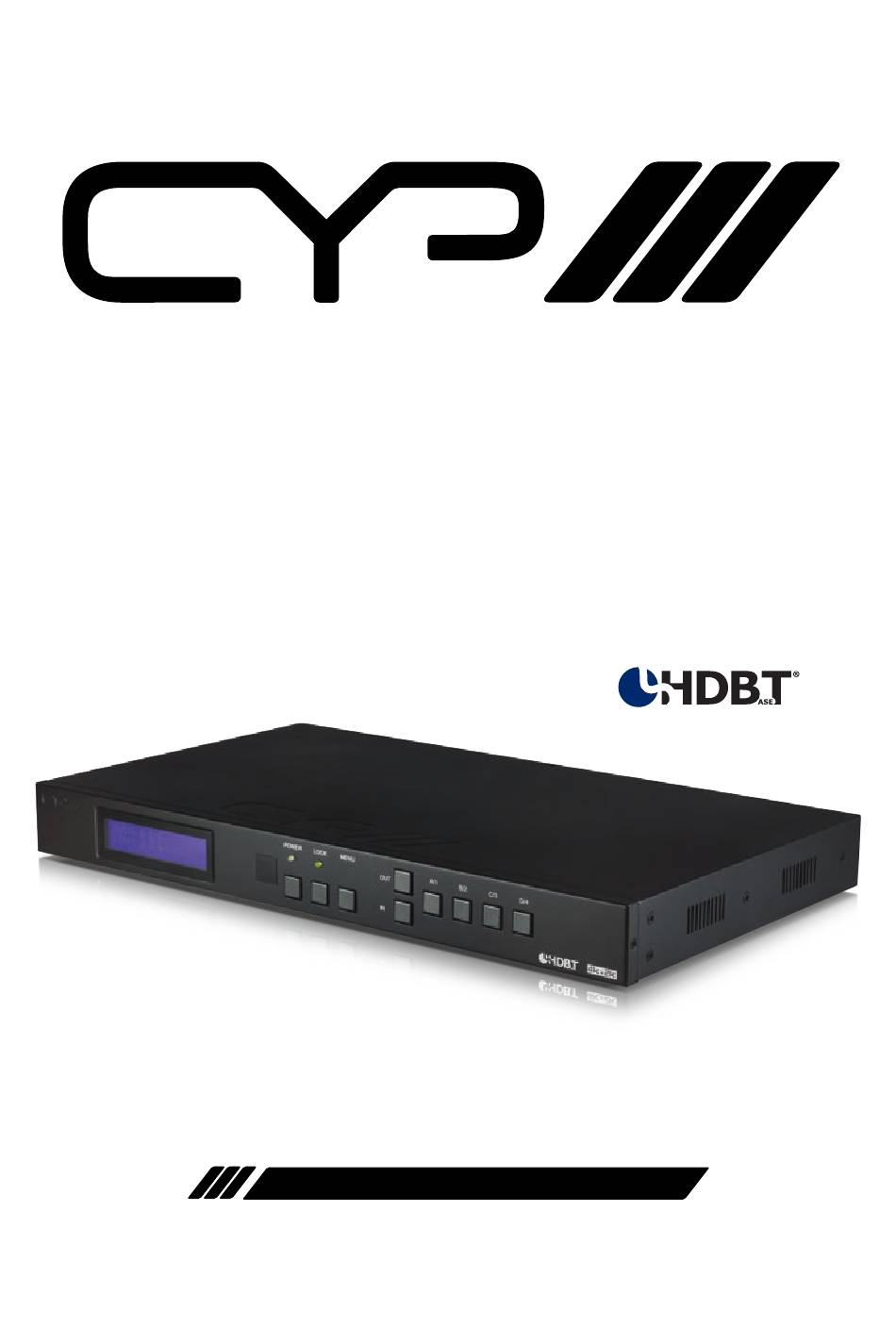

- Page 1 PU-4H4HBTE-4K 4 x 4 HDMI HDBaseT™ Matrix (5Play™ including LAN serving & 4K resolution support) OPERATION MANUAL...
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.5 RS-232 Pin Assignment .....6 6.6 RS-232 and Telnet Commands ..7 6.7 Telnet Control ........8... -
Page 5: Introduction
3D TV and 3D source. This matrix features control via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports UART RS-232 pass-through. The PU-4H4HBTE-4K is designed to be used with any of the HDBaseT receivers that can utilise the Power over Cable (PoC) capabilities of the matrix. -
Page 6: System Requirements
4. SYSTEM REQUIREMENTS • HDMI equipped source devices, connect with HDMI cables or DVI equipped source, connect with DVI to HDMI cables • HDMI equipped displays (TVs or monitors) or HDMI equipped AV receivers, connect with HDMI cables • Industry standard CAT5e/6/7 cables •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER LOCK MENU POWER LOCK MENU 4X4 HDMI MATRIX OVER CAT5e/6/7 LCM: Displays the setting information of each input and output setting. IR: IR Receiver window (accepts the remote control signal of this device only). -
Page 8: Rear Panel
6.2 Rear Panel IR OUT IR IN IR OUT IR IN IR OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN IR OUT IR IN IR OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN IP & ETHERNET HDMI IN 1 HDMI IN 2 HDMI IN 3 HDMI IN 4 DC 24V... -
Page 9: Remote Control
6.3 Remote Control POWER: Press this button to switch on the device or set it to standby mode. IN: Input ports selection 1~4. OUT: Output ports selection A~D. CR-121 6.4 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power... -
Page 10: Rs-232 Pin Assignment
6.5 RS-232 Pin Assignment PU-4H4HBTE-4K CMPRO-U4H4CVE Remote Control Console Assignment Assignment Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 11: Rs-232 And Telnet Commands
6.6 RS-232 and Telnet Commands Command Description help Dipslay all available commands A1~A4 Switch Output A to 1~4 B1~B4 Switch Output B to 1~4 C1~C4 Switch Output C to 1~4 D1~D4 Switch Output D to 1~4 AB…1~AB…4 Switch Output ABCD to 1~4 at the same time SETIP <IP>... -
Page 12: Telnet Control
6.7 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 13 Once in the command line interface (CLI) type "telnet", then the IP address of the unit and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice. This will bring us into the device which we wish to control.
-
Page 14: Web Gui Control
6.8 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. -
Page 16: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE CAT5e/6 RS-232 Equipped PC Output or Control System Power Supply IR OUT IR IN IR IN IR OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN IR OUT IR OUT IR IN IR OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN IP &... -
Page 17: Specifications
8. SPECIFICATIONS Video Bandwidth 341 MHz/10.2 Gbps Input Ports 4×HDMI, 5×IR Extender, 1×RS-232, 1×RJ- 45(Control), 1×Mini USB Type B (For fi rmware updated only) Output Ports 4×CAT5e/6/7, 5×IR Blaster ESD Protection Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Contact discharge) Power Supply 24 V/3.75 A DC (US/EU standards, CE/ FCC/UL certifi... -
Page 18: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Defi nition Multimedia Interface HDTV High-Defi nition Television Liquid Crystal Module Universal Serial Bus Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array... - Page 22 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1...
