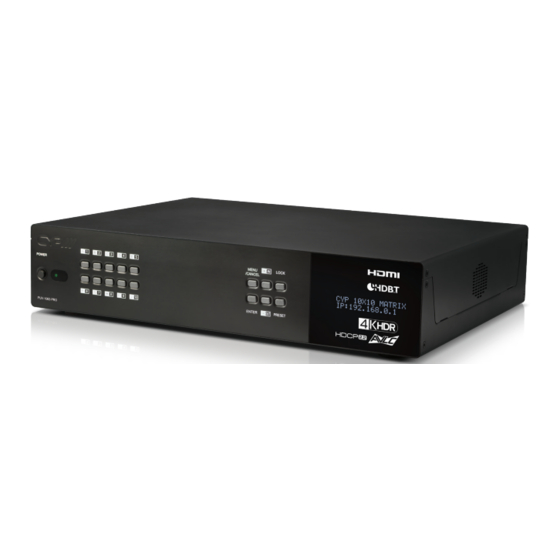

CYP PUV-1082-PRO Operation Manual
  1. Manuals
  2. Brands
  3. CYP Manuals
  4. Matrix Switcher
  5. PUV-1082-PRO
  6. Operation manual

CYP PUV-1082-PRO Operation Manual

10 x 10 hdmi hdbaset matrix with audio matricing & avlc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PUV-1082-PRO
10 x 10 HDMI HDBaseT™ Matrix
with Audio Matricing & AVLC
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUV-1082-PRO and is the answer not in the manual?

Questions and answers

Related Manuals for CYP PUV-1082-PRO

Summary of Contents for CYP PUV-1082-PRO

  • Page 1 PUV-1082-PRO 10 x 10 HDMI HDBaseT™ Matrix with Audio Matricing & AVLC OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........7 3. Package Contents ........7 4. System Requirements ......7 5. Features ..........8 6. Operation Controls and Functions ..10 6.1 Front Panel ..........10 6.2 Rear Panel ...........12 6.3 Side Panel ...........14 6.4 Remote Control ........15 6.5 IR Cable Pinouts ........16 6.6 OLED Menu ..........17 6.7 WebGUI Control ........22...

  • Page 6: Introduction

    1. INTRODUCTION This 10×10 HDMI/HDBaseT Matrix supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio (multi-channel digital/stereo analogue) while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as ten UHD sources may be routed to any of eight HDBaseT outputs (up to 100m at 1080p or up to 70m at 4K) or two HDMI outputs at resolutions up to 4K@60Hz (8-bit, Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video...

  • Page 7: Applications

    2. APPLICATIONS  Full audio/video matrix systems  Residential AV matrix installations  Commercial AV matrix installations  Security systems  University lecture hall systems  Retail installation system 3. PACKAGE CONTENTS  1×HDMI/Audio over HDBaseT Matrix  2×24V/6.25A DC Power Adapter  2×Power Cord  2×3.5mm to IR Extender Cable  2×3.5mm to IR Blaster Cable...

  • Page 8: Features

    5. FEATURES  HDMI with HDR & 4K@60Hz support, DVI 1.0 compatible  HDCP 1.x and HDCP 2.2 compliant  Routes ten HDMI sources to ten displays using eight HDBaseT outputs and two independent or mirrored HDMI outputs  Supports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output  Supports Deep Colour input and output up to 12-bit  Supports 10-bit and 12-bit HDR bypass...
  • Page 9  Supports volume, treble, bass, and audio delay for lip-sync (up to 230ms) on analogue audio outputs and mute on all outputs  Audio mixer functionality (three mixers in total)  Advanced internal and external EDID management with 4 sets of configurable EDID settings  Internal test pattern generation (up to 1080p) for self and sink testing  2U rack mounted design...

  • Page 10: Operation Controls And Functions

    /CANCEL POWER ENTER PRESET PUV-1082-PRO POWER BUTTON: Press this button to power the unit on or place it into stand-by mode. Note: Network functionality and PoH (if the second power supply is connected) remain active when the unit is in stand-by mode.
  • Page 11 +/IN BUTTONS: Within the menu, this button moves you up within the menu tree. Otherwise, in routing mode, this button allows you to make your input source selection. −/OUT BUTTONS: Within the menu, this button moves you down within the menu tree. Otherwise, this button starts routing mode and allows you to begin your output destination selections PRESET BUTTON: Press this button to recall saved presets.

  • Page 12: Rear Panel

    6.2 Rear Panel ZONE EXTENDED ANALOG DIGITAL COAX. OPT. IR IN CAT5e/6 OUT IR IN CAT5e/6 OUT IR IN CAT5e/6 OUT IR IN CAT5e/6 OUT IR IN CAT5e/6 OUT IR IN CAT5e/6 OUT IR IN CAT5e/6 OUT IR IN CAT5e/6 OUT RS-232 POH 24V IR IN...
  • Page 13 treble, bass, volume and audio delay adjustments can be set in the WebGUI. Note: LPCM 2.0 or analogue stereo sources only. EXTENDED AUDIO OUT 1~4 PORTS: Four sets of stereo analogue audio outputs. These audio ports are capable of independently outputting audio routed from any audio source within the matrix.

  • Page 14: Side Panel

    LAN PORT: Connect to an active Ethernet network to allow for Telnet and WebGUI control of the matrix as well as to share the network with connected compatible LAN equipped HDBaseT receivers. This allows for any Ethernet equipped device (e.g. a smart TV or game console) connected to the LAN port of a receiver to share the network/Internet access.

  • Page 15: Remote Control

    6.4 Remote Control POWER BUTTON: Press to power the unit on or place MUTE LOCK POWER it into stand-by mode. LOCK BUTTON: Press to lock/unlock the front panel of the matrix unit. 10/J PATTERN MENU/ CANCEL +/IN PRESET MUTE BUTTON: Mutes Zone Audio outputs. /VOL- ENTER /VOL+...

  • Page 16: Ir Cable Pinouts

    6.5 IR Cable Pinouts IR Extender Infrared Power Ground IR Blaster Power Infrared...

  • Page 17: Oled Menu

    6.6 OLED Menu All basic functions of this unit can be controlled by using the front panel’s OLED menu which is activated by pressing the MENU/CANCEL button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the menu.
  • Page 18 1-EDID 2ND LEVEL 3RD LEVEL 1-EDID Mode Independent 1-FHD/2CH 2-EDID Select (All or 1~10) 2-FHD/Mch 3-UHD/2ch 4-UHD/Mch 5-UHD+/2ch 6-UHD+/Mch 7-Sink A 8-Sink B 9-Sink C 10-Sink D 11-Sink E 12-Sink F 13-Sink G 14-Sink H 15-Sink I 16-Sink J 2-EDID Select (All or 1~10) 17-User 1 18-User 2 19-User 3...
  • Page 19 adjust, and then select the EDID to use with that input. After making a selection press the “Enter” button to save the change. 2-NETWORK 2ND LEVEL 3RD LEVEL 1-Link Status [Displays current link status] 2-IP Address [Displays current IP address] 3-Subnet Mask [Displays current subnet mask] 4-Gateway Address...
  • Page 20 5) MAC Address: Displays the unit’s MAC address. 6) DHCP Mode: Enable or disable DHCP mode. When enabled, all IP address information will be assigned automatically by the local DHCP server. When disabled, the IP address must be set manually. Note: The unit’s default static IP address is 192.168.1.50.
  • Page 21 4-FACTORY DEFAULT 2ND LEVEL 3RD LEVEL Factory Reset? 1) Factory Reset: Selecting “Yes” will perform a factory reset and return the unit to its factory default state. After the reset is complete, the unit will reboot automatically. 5-FIRMWARE 2ND LEVEL 3RD LEVEL 1-Version [Displays current version]...

  • Page 22: Webgui Control

    6.7 WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorised dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”...
  • Page 23 WebGUI Overview After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “Submit” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI.
  • Page 24 6.7.1 Video Switch Tab This tab provides video routing settings including HDCP and test pattern configuration. 1) Output and Input Routing To begin assigning a new video route, please click the button of the HDBaseT output you wish to send video to and then click on the button of the preferred HDMI input port or Pattern.
  • Page 25 2) Output and Input Naming All inputs and outputs can be renamed as required. To rename the HDBaseT output ports and HDMI input ports please click the appropriate “Edit” icon ( ). Click the “Save” button to confirm the name change. Note: Blank spaces are not allowed in names.
  • Page 26 3) HDMI Output Settings The two HDMI outputs (port I & port J) can be used for normal source routing (listed as “Independent” within the WebGUI) and mirroring (listed as “Mirror” within the WebGUI) for local monitoring purposes or zone monitoring (e.g. The HDBaseT output connects to a TV in a remote zone the local HDMI connection goes into an AVR).
  • Page 27 4) Internal Test Pattern This advanced matrix system comes with an internal test pattern generation feature which can be used to test connected sink device functionality or be used as a self-test. This is a useful tool for installation engineers to troubleshoot potential issues between the matrix and connected devices.
  • Page 28 ■ Test Pattern Colour Control: The test pattern type can be changed to any one of sixteen different options. The patterns include full screen colours as well as a selection of other basic patterns.
  • Page 29 5) Preset Settings This matrix can store up to eight video and audio routing presets. Presets can be utilised to store multiple different routing states in advance for rapid, hassle-free, recall. To store, recall or view a preset, click the “Preset” icon ( ) in the upper right corner of the tab to open the Preset configuration window.
  • Page 30 information box to the right. ■ Rename: Click the “Edit” icon ( ) to open the rename sub-window. After entering a new name, click the “Save” button to confirm the name change. Note: Blank spaces are not allowed in names. 6.7.2 Zone Audio Tab This advanced matrix offers a complete audio routing function.
  • Page 31 2) Audio Output Settings Click the “Edit” icon ( ) to change the following settings: ■ Output Name: The Zone Audio outputs can be renamed here. ■ Output Volume: Adjustable from −100dB to +12dB. ■ Output Bass: Adjustable from −12dB to +12dB. ■...
  • Page 32 6.7.3 Extended Audio Tab The Extended Audio ports offer additional analogue audio breakaway capability. The audio source, treble, bass, volume and audio delay adjustments can be set on this tab. 1) Output and Input Routing Click the buttons from left to right to choose each output’s audio source.
  • Page 33 2) Extended Audio Output Settings Click the “Edit” icon ( ) to change the following settings: ■ Output Name: The Extended Audio outputs can be renamed here. ■ Output Volume: Adjustable from −100dB to +12dB. ■ Output Bass: Adjustable from −12dB to +12dB. ■...
  • Page 34 6.7.4 CAT Audio Tab Connecting compatible CAT Audio receivers allows the matrix to both send and receive audio over distances up to 300m. The audio source and mute settings of audio being sent from the matrix to a receiver can be set on this tab.
  • Page 35 6.7.5 HDMI Audio Tab The audio routed to the two HDMI outputs (ports: I & J) and their associated settings are adjusted on this tab. 1) Output and Input Routing Click the buttons from left to right to choose each output’s audio source.
  • Page 36 2) HDMI Audio Output Settings Click the “Edit” icon ( ) to change the following settings: ■ Output Name: The HDMI Audio outputs can be renamed here. ■ Output Mute: Mute may be turned on or off. ■ Follow Video Source: Clicking the selection bar switches between Enable (follow video) and Disable (don’t follow video).
  • Page 37 6.7.6 HDBaseT Audio Tab The audio routed to the eight HDBaseT outputs (ports: A~H) and their associated settings are adjusted on this tab. 1) Output and Input Routing Click the buttons from left to right to choose each output’s audio source.
  • Page 38 2) HDBaseT Audio Output Setting Click the “Edit” icon ( ) to change the following settings: ■ Output Name: The HDBaseT Audio outputs can be renamed here. ■ Output Mute: Mute may be turned on or off. ■ Follow Video Source: Clicking the selection bar switches between “Enable”...
  • Page 39 6.7.7 Mixer Audio Tab The Audio Mixer feature allows for any two LPCM 2.0 audio sources to be mixed together. The matrix has three mixers in total and their settings can be adjusted on this tab. 1) Output and Input Routing Click the buttons from left to right to choose each mixer’s A &...
  • Page 40 2) Mixed Audio Output Setting Click the “Edit” icon ( ) to change the following settings: ■ Set Mixer Audio Stereo: Clicking the selection bar switches between “Stereo” and “Mono”. ■ Signal Gain: The signal gain for each channel can be set from 0% to 100%.
  • Page 41 6.7.8 Zone A/V Pairing Tab The Zone A/V Pairing function allows the end user to control the matrix, using the supplied remote control, in a customised manner while in remote rooms (zones) containing an HDBaseT receiver and IR extender. Each zone can have a different set of video/audio sources assigned to the buttons on the remote control for easy switching.
  • Page 42 2) Quick Button Selection To activate an audio/video pairing from the WebGUI, please select the preferred output zone to launch its selection window. The numbers 1~10 and "pattern" correspond to the keys on remote control unit and hovering the mouse over each button will reveal the routing currently associated with it.
  • Page 43 6.7.9 EDID Settings Tab This matrix provides the option of six standard EDIDs, ten sink sourced EDIDs and four customer uploaded EDIDs that can be assigned to each input port individually. The names of the four customer uploaded EDIDs can changed if desired. 1) Customer EDID Settings ■...
  • Page 44 2) Sink EDID Download ■ Download: To save the EDID of a connected sink to your local PC, select the sink from the dropdown and then press the “Download” button. An EDID Download sub-window will appear, allowing you to save the EDID file to your local PC. Select a save location and click the “Download”...
  • Page 45 This unit provides the following 6 default EDIDs: EDID Name Video Content Audio FHD/2CH 1920×1080p@60Hz (148MHz), LPCM 2.0 8-bit colour FHD/MCH 1920×1080p@60Hz (148MHz), LPCM 7.1 & 8-bit colour Bitstream UHD/2CH 3840×2160p@30Hz (297MHz), LPCM 2.0 Deep Colour (8/10/12-bit) UHD/MCH 3840×2160p@30Hz (297MHz), LPCM 7.1 &...
  • Page 46 6.7.10 HDBaseT & H/W Info Tab This tab provides information concerning the temperature inside the matrix (areas 1, 2 & 3) and the HDBaseT firmware versions used in the matrix and in connected receivers. Temperature area 1 is the left side of the output ports (from the front), area 2 is the right side of the output ports (from the front) and area 3 is at the middle of the HDMI inputs.
  • Page 47 6.7.11 System Settings Tab This tab provides system configuration options including turning the power on/off, changing the network settings, downloading/restoring saved system configurations, resetting the system to factory defaults and updating the firmware. ■ Power: Press this switch to toggle the unit’s power between ON and OFF (standby mode).
  • Page 48 ■ Restore Configuration: To restore a previously saved system configuration, click the “Choose File” button to locate the saved XML file, then click the “Restore” button. ■ Reset to Default: Press the “ALL Reset” button to reset the unit to its factory default state.

  • Page 49: Control

    6.8 RS-232 Control Serial Port Settings Baud Rate 115200 Data Bits Parity Bit None Stop Bits Flow Control None 6.9 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. To Access the Command Line Interface (CLI) Click Start, type “cmd”...

  • Page 50: And Telnet Commands

    6.10 RS-232 and Telnet Commands 6.10.1 Command Syntax The RS-232/Telnet command structure for this unit is both flexible and powerful, and allows for multiple parameters to be set across multiple ports simultaneously within a single command transmission. This section will detail the command syntax used to send both simple (single port/ single parameter) commands as well as the more complex (multi-port/ parameter) commands.
  • Page 51 Command Format ZoneAvPair HDBT_Out {Port} Slot {Slot} {Parameter [= Value]} Examples ZoneAvPair HDBT_Out B Slot 5 VideoSrc = HDMI_In 2 ZoneAvPair HDMI_Out J Slot 3 Load 3) Multi-Port Command Format Use the following syntax to set or change a single parameter for multiple ports.
  • Page 52 5) Multi-Parameter Command Format Use the following syntax to set or change multiple parameters for a single port. Note that each additional parameter uses the “, ” character for separation and spaces are allowed. The number of parameters allowed in a single command is limited only by the number of individual parameters that command has.
  • Page 53 Command Format <Command> {Port1}+{Port2}+{Etc.} {Param1 [= Value]}, {Param2 [= Value]}, {Etc.} & {Port1}+{Port2}+{Etc.} {Param1 [= Value]}, {Param2 [= Value]}, {Etc.} & Etc. Example HDBT_Out A+C+E VideoSrc=HDMI_In 2, AudioSrc=CoaxIn 2 & B+D Mute & F VideoSrc=HDMI_In 1, AudioSrc=HDMI_In 1 8) Complex Multi-Slot/Parameter Command Format (ZoneAvPair) The ZoneAvPair command can also control multiple slots with multiple parameter groupings however the syntax is slightly different.
  • Page 54 6.10.2 Real World Command Use 1) Zone A/V Pairing Mode Command Example The easiest way to use the matrix for simple HDMI switching while still allowing for individually tailored zone audio is to use the Zone A/V Pairing setting within the WebGUI. This is a configured and saved setting allowing each HDMI input to be paired with different audio inputs, depending on the zone it is being output to, for easy selection from a remote within that zone.
  • Page 55 3) HDMI Mirroring Command Example If you have rack (head end) based AVR’s for surround sound rooms we recommend using the HDMI outputs and the HDMI mirroring mode to easily have the audio and video sent to the AVR follow the signal sent to that zone’s TV.
  • Page 56 4) Audio Only source selection Command Examples This unit offers 8 direct audio only inputs, while some of these inputs will likely be used for down mixed audio signals from surround sound sources (for stereo only zones) we expect audio only sources to be connected to deliver just audio to both TV zones and Audio Only zones.
  • Page 57 5) Individual Audio and Video Routing Command Examples To offer the greatest level of flexibility the matrix can be used to send individual commands for both video and audio, this allows the installer to completely tailor the matrix to suit any possible configuration the end user may require.
  • Page 58 6.10.3 Full Command List General System Commands Command Description & Parameters Display all available commands. Help Display all available commands. ? {Command} Display basic instructions for the command. Display the firmware version. Enter light stand-by mode. Note: RS-232, Ethernet and PoH functionality remains active. Turn the power on.
  • Page 59 General System Commands Command Description & Parameters SETIP {IP} {Subnet} {Gateway} Set the IP address, subnet and gateway in Static IP mode. {IP} = X.X.X.X [X = 0 ~ 255] {Subnet} = X.X.X.X [X = 0 ~ 255] {Gateway} = X.X.X.X [X = 0 ~ 255] RSTIP Request updated IP information from the DHCP server.
  • Page 60 ZoneLineOut Commands Command Description & Parameters ZoneLineOut M AudioSrc=XXX Set the audio source for a zone line output. M = A ~ H Available values for XXX: HDMI_In n [n = 1 ~ 10] OpticIn n [n = 1 ~ 2] CoaxIn n [n = 1 ~ 2] AnalogIn n...
  • Page 61 ZoneLineOut Commands Command Description & Parameters ZoneLineOut M Volume=Fast XXX Adjust the volume of a zone line output in large steps (2dB steps). M = A ~ H Available values for XXX: Down ZoneLineOut M Volume=Slow XXX Adjust the volume of a zone line output in small steps (0.5dB steps). M = A ~ H Available values for XXX: Down...
  • Page 62 ZoneLineOut Commands Command Description & Parameters ZoneLineOut M Name={NameString} Set the verbose name of a zone line output. Maximum 32 characters. M = A ~ H Note: Multi-port selection is not supported.
  • Page 63 ExtLineOut Commands Command Description & Parameters ExtLineOut M AudioSrc=XXX Set the audio source for an extended line output. M = 1 ~ 4 Available values for XXX: HDMI_In n [n = 1 ~ 10] OpticIn n [n = 1 ~ 2] CoaxIn n [n = 1 ~ 2] AnalogIn n...
  • Page 64 ExtLineOut Commands Command Description & Parameters ExtLineOut M Volume=Fast XXX Adjust the volume of an extended line output in large steps (2dB steps). M = 1 ~ 4 Available values for XXX: Down ExtLineOut M Volume=Slow XXX Adjust the volume of an extended line output in small steps (0.5dB steps).
  • Page 65 ExtLineOut Commands Command Description & Parameters ExtLineOut M Name={NameString} Set the verbose name of an extended line output. Maximum 32 characters. M = 1 ~ 4 Note: Multi-port selection is not supported.
  • Page 66 OpticalIn Commands Command Description & Parameters OpticalIn M Mute Mute the specified optical audio input. M = 1 ~ 2 OpticalIn M unMute Unmute the specified optical audio input. M = 1 ~ 2 OpticalIn M status Show the current status of the specified optical audio input. M = 1 ~ 2 CoaxialIn Commands Command...
  • Page 67 AnalogIn Commands Command Description & Parameters AnalogIn M Mute Mute the specified analogue audio input. M = 1 ~ 4 AnalogIn M unMute Unmute the specified analogue audio input. M = 1 ~ 4 AnalogIn M status Show the current status of the specified analogue audio input. M = 1 ~ 4 OARIn Commands Command...
  • Page 68 CAT_In Commands Command Description & Parameters CAT_In M Mute Mute the specified Audio CAT audio input. M = 1 ~ 2 CAT_In M unMute Unmute the specified Audio CAT audio input. M = 1 ~ 2 CAT_In M status Show the current status of the specified Audio CAT audio input. M = 1 ~ 2...
  • Page 69 AudioCAT_Out Commands Command Description & Parameters AudioCAT_Out M AudioSrc=XXX Set the audio source for an AudioCAT output. M = 1 ~ 2 Available values for XXX: HDMI_In n [n = 1 ~ 10] OpticIn n [n = 1 ~ 2] CoaxIn n [n = 1 ~ 2] AnalogIn n...
  • Page 70 HDBT_Out Commands Command Description & Parameters HDBT_Out M AudioSrc=XXX Set the audio source for an HDBaseT output. M = A ~ H Available values for XXX: HDMI_In n [n = 1 ~ 10] OpticIn n [n = 1 ~ 2] CoaxIn n [n = 1 ~ 2] AnalogIn n...
  • Page 71 HDBT_Out Commands Command Description & Parameters HDBT_Out M VideoSrc=Default Reset the video source of an HDBaseT Tx output to the factory default. M = A ~ H HDBT_Out M Status Display the status & properties of an HDBaseT output including audio/video matrix.
  • Page 72 HDBT_Out Commands Command Description & Parameters HDBT_Out M OSDTimeout=Second Set the OSD banner display time for the specified HDBaseT output. M = A ~ H Available values for XXX: XXX = 0 ~ 60 (units: seconds, 0 = OSD is always on) Note: Multi-port selection is not supported.
  • Page 73 HDBT_Out Commands Command Description & Parameters HDBT_Out M OSDRow3=XXX Enable or disable row 3 of the OSD banner for the specified HDBaseT output. M = A ~ H Available values for XXX: Note: Multi-port selection is not supported. HDBT_Out M POE=XXX Enable or disable Power over HDBaseT support for the specified HDBaseT output.
  • Page 74 HDBT_Out Commands Command Description & Parameters HDBT_Out M PatternType=XXX Set the style to use for the test pattern on the specified HDBaseT output. M = A ~ H Available values for XXX: Green Blue Black White Magenta Yellow Cyan RampA RampB Toggle ColorBar80...
  • Page 75 HDMI_In Commands Command Description & Parameters HDMI_In M Status Display the status of an HDMI input. M = 1 ~ 10 HDMI_In M Name={NameString} Set the verbose name of an HDMI input. Maximum 32 characters. M = 1 ~ 10 Note: Multi-port selection is not supported.
  • Page 76 HDMI_Out Commands Command Description & Parameters HDMI_Out M OSDString={OSDString} Set the OSD banner text for the specified HDMI output. M = I ~ J Note: Multi-port selection is not supported. HDMI_Out M OSDArea=XXX Set the OSD banner position for the specified HDMI output. M = I ~ J Available values for XXX: TopLeft...
  • Page 77 HDMI_Out Commands Command Description & Parameters HDMI_Out M OSDRow2=XXX Enable or disable row 2 of the OSD banner for the specified HDMI output. M = I ~ J Available values for XXX: Note: Multi-port selection is not supported. HDMI_Out M OSDRow3=XXX Enable or disable row 3 of the OSD banner for the specified HDMI output.
  • Page 78 HDMI_Out Commands Command Description & Parameters HDMI_Out M Mute Mute an HDMI output’s audio. M = I ~ J HDMI_Out M Unmute Unmute an HDMI output’s audio. M = I ~ J HDMI_Out M VideoSrc=XXX Set the video source for an HDMI output. M = I ~ J Available values for XXX: HDMI_In n...
  • Page 79 HDMI_Out Commands Command Description & Parameters HDMI_Out M Name={NameString} Set the verbose name of an HDMI output. Maximum 32 characters. M = I ~ J Note: Multi-port selection is not supported. HDMI_Out M PatternType=XXX Set the style to use for the test pattern on the specified HDMI output.
  • Page 80 MixerOut Commands Command Description & Parameters MixerOut M AudioSrc N=XXX Set the audio source for an audio mixer input channel. M = 1 ~ 3 N = A ~ B Available values for XXX: HDMI_In n [n = 1 ~ 10] OpticIn n [n = 1 ~ 2] CoaxIn n...
  • Page 81 Preset Commands Command Description & Parameters Preset Save M Save the current A/V routing as a preset. M = 1 ~ 8 Preset Load M Load and activate a saved A/V preset. M = 1 ~ 8 Preset Show [M] List the contents of a stored A/V preset.
  • Page 82 EDID Commands Command Description & Parameters EDID All=XXX Set the EDID source for all HDMI input ports. Available values for XXX: 1 ~ 6 [Factory EDIDs] 7 ~ 16 [Sink EDIDs] 17 ~ 20 [User EDIDs] EDID HDMI_In M=XXX Set the EDID source for a single HDMI port. M = 1 ~ 10 Available values for XXX: 1 ~ 6...
  • Page 83 ZoneAVPair Commands Command Description & Parameters ZoneAvPair HDBT_Out M Slot N AudioSrc=XXX Assign an audio source to a Zone A/V Pair slot on an HDBaseT output. M = A ~ H N = 1 ~ 10 Available values for XXX: HDMI_In n [n = 1 ~ 10] OpticIn n...
  • Page 84 ZoneAVPair Commands Command Description & Parameters ZoneAvPair HDMI_Out M Slot N AudioSrc=XXX Assign an audio source to a Zone A/V Pair slot on an HDMI output. M = I ~ J N = 1 ~ 11 Available values for XXX: HDMI_In n [n = 1 ~ 10] OpticIn n...
  • Page 85 IRGenerator Commands Command Description & Parameters IRGenerator Code={IR hex code} Transmit the specified IR code.
  • Page 86 IR_Route Commands Command Description & Parameters IR_Route HDBT_Out M0 M1 M2 Select the IR source(s) for an HDBaseT output. M0 is the output port index. M1 is the function to use. M2 is the IR input source. M0 = A ~ H Available values for M1: [Add M2 source to M0] [Delete M2 source from M0]...
  • Page 87 UART Commands Command Description & Parameters UART M BaudRate=XXX Set the RS-232 baud rate for the specified HDBaseT output. M = A ~ H Available values for XXX: 2400 4800 7200 9600 14400 19200 38400 57600 115200 UART M DataBit=XXX Set the RS-232 data bits for the specified HDBaseT output.

  • Page 88: Connection Diagram

    7. CONNECTION DIAGRAM AV Zones: Game CD Players • LAN Consoles • HDMI Out • IR Out • IR In • OAR • PoH Stereo Stereo Stereo S/PDIF Outputs Outputs Inputs Inputs HDBaseT Outputs CD Player RS-232 ZONE EXTENDED ANALOG DIGITAL COAX.

  • Page 89: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 10×HDMI 2×S/PDIF (TOSLINK) 2×S/PDIF (RCA) 4×Analogue Stereo (8×RCA) Output Ports 8×HDBaseT (RJ-45) 2×HDMI 12×Analogue Stereo (24×RCA) Bidirectional Ports 2×Audio CAT (RJ-45) Pass-through/Control 9×IR Extender (3.5mm) Ports 11×IR Blaster (3.5mm) 1×RS-232 (DE-9) 1×LAN (RJ-45) Service Port...

  • Page 90: Video Specifications

    Chassis Material Metal (Steel) Silkscreen Colour Black Operating Temperature 0 ˚C–40 ˚C/32 ˚F–104 ˚F Storage Temperature −20 ˚C–60 ˚C/−4 ˚F–140 ˚F Relative Humidity 20–90 % RH (Non-condensing) Power Consumption 236W 8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI HDBaseT 480i@60 ...

  • Page 91: Audio Specifications

    Input Output Supported Resolutions (Hz) HDMI HDMI HDBaseT 3840×2160@50/59.94/60 (4:4:4) AVLC   4096×2160@24/25/30    4096×2160@50/59.94/60 (4:2:0)    4096×2160@50/59.94/60 (4:4:4)    8.3 Audio Specifications 8.3.1 Analogue Audio Analogue (Stereo) Input Max Audio Level 2Vrms Impedance 10kΩ...
  • Page 92 4) Audio Mixer: Mixes any two audio sources into a single channel. Three mixers in total. Mixer gain is adjustable from 0%~100%. Note: Audio break away functionality is only supported with LPCM 2.0 format audio. The OAR, optical, coaxial, and Audio CAT inputs only support LPCM 2.0 audio.

  • Page 93: Cable Specifications

    Optical Audio Return (OAR) LPCM Max Channels 2 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96 Bitstream Supported Formats None 8.4 Cable Specifications 1080p 4K30 4K60 HDMI Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6...

  • Page 94: Hdbaset Features

    8.5 HDBaseT Features HDBaseT Feature Set Video & Audio Supported IR Pass-through Supported RS-232 Pass-through Supported Accept power from Receiver Unsupported Send power to Receiver Supported LAN Pass-through Supported...

  • Page 95: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Analogue-to-Digital Converter AVLC Adaptive Visually Lossless Compression Audio/Video Recorder or Audio/Video Receiver Cat.5e Category 5 (enhanced) cable Cat.6 Category 6 cable Cat.7 Category 7 cable COAX Coaxial Consumer Electronics Control Command-Line Interface Digital-to-Analogue Converter DHCP Dynamic Host Configuration Protocol Digital Visual Interface EDID...
  • Page 96 ACRONYM COMPLETE TERM Optical Personal Computer Powered Device Power over HDBaseT Power Sourcing Equipment S/PDIF Sony/Philips Digital Interface Format Signal-to-Noise Ratio THD+N Total Harmonic Distortion plus Noise Ultra-High-Definition UHDTV Ultra-High-Definition Television Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking)
  • Page 100 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
