- Page 1 PU-8H8HBTE-4K 8 x 8 HDMI HDBaseT™ Matrix (5-Play™ including LAN serving & 4K resolution support) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........7 4. System Requirements ......7 5. Features ..........8 6. Operation Controls and Functions ..9 6.1 Front Panel ........... 9 6.2 Rear Panel ...........10 6.3 Side Panel ...........11 6.4 Remote Control ........12 6.5 IR Cable Pin Assignment .......12 6.6 RS-232 Pin Assignment......13 6.7 RS-232 &... -
Page 6: Introduction
3D source. This matrix features control via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports RS232 pass-through and CEC control function of both sources and screens using Telnet, Web GUI or RS232. -
Page 7: Package Contents
3. PACKAGE CONTENTS 4K2K 8×8 HDMI Matrix over CAT5e/6/7 9×IR Extender 9×IR Blaster 2×24 V/6.25 A DC Power Adaptor (1 for PoC) 2×Power Cord 1×IR Remote Control with battery 1×Left and Right Ear Rack Set Operation Manual 4. SYSTEM REQUIREMENTS HDMI equipped source devices, connect with HDMI cables or DVI equipped source, connect with DVI to HDMI cables HDMI equipped displays (TVs or monitors) or HDMI equipped AV... -
Page 8: Features
5. FEATURES HDMI, HDCP 1.1 and DVI compliant Supports resolutions VGA~WUXGA, 4K2K@24/25/30Hz & YUV-420 @60Hz and 480i~1080p dependent upon the output display’s EDID settings Supports uncompressed video/audio up to 10.2Gbps Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission Supports distances up to 100 meters through CAT6/7 cables Supports 3D signal display dependent upon the output display EDID... -
Page 9: Operation Controls And Functions

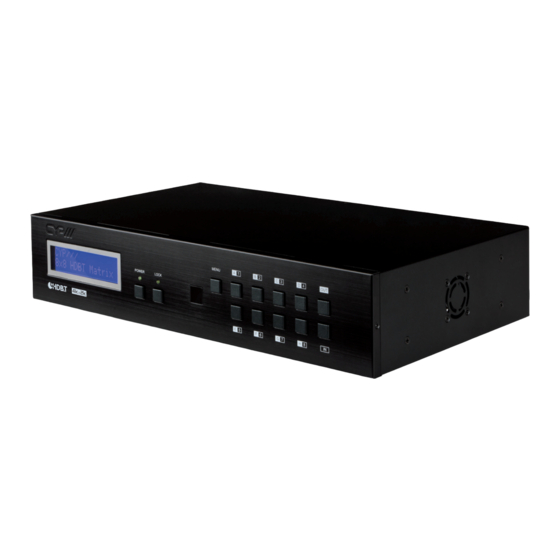

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER LOCK LCM : Displays the setting information of each input and output setting. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 10: Rear Panel
6.2 Rear Panel IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN IR IN IR IN IR IN... -
Page 11: Side Panel
Video and IR/RS-232 control signal transmission. Warning: Please do not connect the CAT5e/6/7 cable into the receiver's LAN port. HDMI IN 1~8: Connect to the HDMI input source devices such as a DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable. DC 24V MAIN POWER: Plug the 24 V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 12: Remote Control
6.4 Remote Control POWER: Press this button to switch on the device or set it to standby mode. IN: Input ports selection 1~8. OUT: Output ports selection A~H. 6.5 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Receiver IR Signal Power Ground... -
Page 13: Rs-232 Pin Assignment
6.6 RS-232 Pin Assignment Matrix Remote Control Console Assignment Assignment Baud Rate: 19,200 bps Data bit: 8 bits Parity: None Stop Bit: 1 Flow Control: None... -
Page 14: Rs-232 & Telnet Commands
6.7 RS-232 & Telnet Commands Command Description A1~A8 Switch Output A to 1~8 B1~B8 Switch Output B to 1~8 C1~C8 Switch Output C to 1~8 D1~D8 Switch Output D to 1~8 E1~E8 Switch Output E to 1~8 F1~F8 Switch Output F to 1~8 G1~G8 Switch Output G to 1~8 H1~H8... - Page 15 Command Description UARTBAUD1~8 Set output A~D’s uart baud rate from 1~6 1: 9600bps 2: 14400bps 3: 19200bps 4: 38400bps 5: 57600bps 6: 115200bps UARTSW1~8 Switch output’s UARTto A~H and allow Matrix to send commands to Receiver's connected RS-232 device. UARTSW0 Switch output's UART to MCU.
-
Page 16: Rs-232 Uart Command Illustration Diagram
6.8 RS-232 UART Command Illustration Diagram Note: This command IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT UARTSW 0 CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT allows RS-232 to control... - Page 17 RS-232 Equipped Device UARTSW 5 Note: This command IR1 Extender HDMI Out RS232 Out IR2 Blaster allows control of the RS-232 device connected IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT UARTSW 5 CAT5e/6 OUT CAT5e/6 OUT...
-
Page 18: Telnet Control
6.9 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the LAN port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 19 This will bring us into the device which we wish to control. Type "HELP" to list the available commands. Type “IPCONFIG” To show all IP configurations. To reset the IP, type “RSTIP” and to use a set static IP, type ”SETIP” (For a full list of commands, see Section 6.7).
-
Page 20: Web Gui Control
6.10 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. - Page 21 Clicking on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 22: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE Power Power Power Link Link Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 2 Extender Blaster Extender Blaster Extender Blaster IR 1 RS232 Out CAT5e/6 In RS232 Out CAT5e/6 In RS232 Out... - Page 23 ZONE ZONE ZONE ZONE Displays HDMI Outputs IR Out/In Receiver Units Power Power Power Power Link Link Link Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster Extender Blaster Extender Blaster Extender Blaster RS232 Out CAT5e/6 In...
-
Page 24: Specifications
8. SPECIFICATIONS 8.1 Technical Specification Video Bandwidth 300 MHz/9 Gbps Input Ports 8×HDMI, 9×IR Extender, 1×RS-232, 1xLAN, 1×Mini USB-B type (for firmware update only) Output Ports 8×CAT5e/6/7, 9×IR ESD Protection Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Contact discharge) Power Supply 24 V/6.25 A DC (US/EU standards, CE/FCC/ UL certified) -
Page 25: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, (HD Video) 36 bits 3D(data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). -
Page 26: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Module Universal Serial Bus Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array... - Page 28 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
