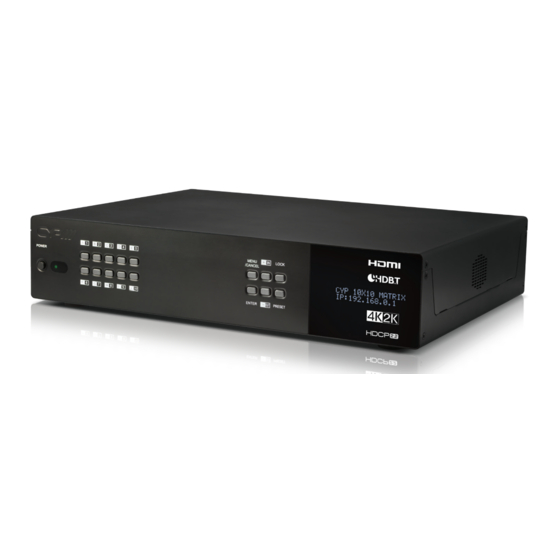

CYP PUV-1082PL-4K22 Operation Manual

10x10 hdmi hdbaset lite matrix with audio matricing (4k, hdcp2.2, hdmi2.0, poh, oar, 60m)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PUV-1082PL-4K22
10x10 HDMI HDBaseT™ LITE Matrix with Audio Matricing
(4K, HDCP2.2, HDMI2.0, PoH, OAR, 60m)
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUV-1082PL-4K22 and is the answer not in the manual?

Questions and answers

Related Manuals for CYP PUV-1082PL-4K22

Summary of Contents for CYP PUV-1082PL-4K22

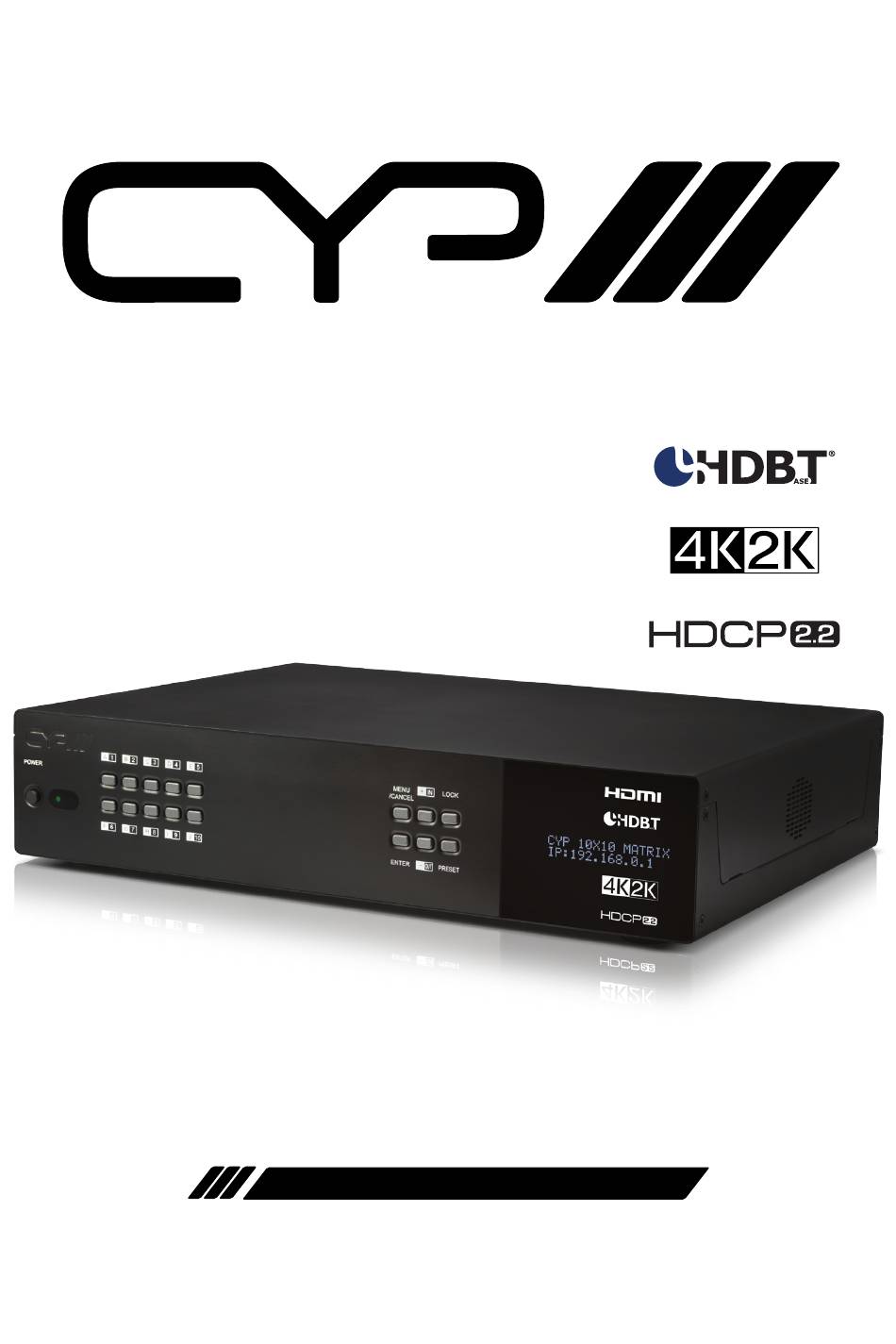

  • Page 1 PUV-1082PL-4K22 10x10 HDMI HDBaseT™ LITE Matrix with Audio Matricing (4K, HDCP2.2, HDMI2.0, PoH, OAR, 60m) OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........7 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..9 6.1 Front Panel ........... 9 6.2 Rear Panel ...........10 6.3 Side Panel ...........12 6.4 Remote Control ........13 6.5 OLED Menu ..........14 6.6 IR Cable Pin Assignment .......15 6.7 RS-232 Protocol ........15...

  • Page 6: Introduction

    (PoH) function provides power to compatible receivers. Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports RS232 pass-through to the receivers. The PUV-1082PL-4K22 is designed to be used with PUV-1230PL-RX or PUV-1210PL-RX receivers that can utilise the PoH capabilities of the matrix.

  • Page 7: Package Contents

    3. PACKAGE CONTENTS 1× 10×10 Matrix system 2× 24V DC Power Adaptor 11× IR Blaster 9× IR Extender 2× Racked Ear 1× Remote Control (CR-163) 1× UK Power Cord 1× Europe Power Cord 1× Operation Manual 4. SYSTEM REQUIREMENTS HDMI equipped source devices Audio only source devices Standard and/or compatible AudioCAT based amplifiers –...
  • Page 8 Supports resolutions up to 4K@60 (RGB 4:4:4) on HDMI output ports Supports automatic 4K@60 RGB 4:4:4 to YUV 4:2:0 conversion for HDBaseT outputs 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 40m via CAT6a/7 Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio...

  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU LOCK /CANCEL POWER PUV-1082PL-4K22 IP:192.168.0.254 ENTER PRESET 8 10 POWER: Press this button to power on/ off device. POWER LED: The LED will illuminate in green when the power is on, and shown in red when power off this device.

  • Page 10: Rear Panel

    MINUS (-)/OUT: Press Minus “-” button to navigate down button selection. Press “OUT” button for output port sources selection. LOCK: Press this button for three second to lock all buttons on panel. The right top side will display “L” once front panel locked. Press for few seconds to unlock.
  • Page 11 DIGITAL AUDIO IN: Connects with digital audio source for example P3, DVD players…etc to insert audio source into matrix unit. The audio source is able to be assign to any HDMI input or mixing with other audio source. The audio mixer, treble, bass range, audio delay and volume adjustment are able to be setting on WebGUI.

  • Page 12: Side Panel

    24V power supply to POH outlet for supplying power over cable to compatible Receiver with POH function. NOTE: When connecting a UHD/HDR source to the new CYP matrices the direct HDMI outputs can pass-through the HDR/Deep colour data without compromise.

  • Page 13: Remote Control

    Pattern. For Front panel operation please -/OUT refer to front panel instructions. NOTE: PUV-1082PL-4K22’s remote sends commands based upon how the matrix has been configured for the Zone AV Pairing mode which is setup via the webGUI, please refer to section 6.10.8...

  • Page 14: Oled Menu

    6.5 OLED Menu 1ST LEVEL 2ND LEVEL 3RD LEVEL EDID EDID Mode All/Independent EDID Select All/1~6/7~16/17~20 (1~6=Default EDID settings, 7~16=Sink's EDID settings, 17~20=User's EDID settings) Network Link Status (Idle) IP Address Subnet Mask Gateway Address MAC Address DHCP mode On/Off HDMI Mirroring Output I/J Factory Default...

  • Page 15: Ir Cable Pin Assignment

    6.6 IR Cable Pin Assignment IR Blaster Power IR Signal IR Extender IR Signal Power Ground 6.7 RS-232 Protocol MATRIX REMOTE CONTROLLER Assignment Assignment ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 16: Rs-232 And Telnet Commands

    Real World Command Use Zone AV Pairing Mode command use: The easiest way to use the PUV-1082PL-4K22 for simple HDMI switching whilst still allowing for individually tailored zone audio is to use the Zone AV Pairing setting on the webGUI.
  • Page 17 ‘I’ follows the selection. Audio command use: The PUV-1082PL-4K22 offers 8 direct audio only inputs, whilst some of these input will likely be used for downmixed audio signals from surround sound sources (for stereo only zones) we expect audio only sources to be...
  • Page 18 ‘listening’ to that TV. Individual Audio and Video Mode command use: To offer the greatest level of flexibility the PUV-1082PL-4K22 can be used to send individual commands for both video and audio, this allows the installer to completely tailor the matrix to suit any possible configuration the end user may require.
  • Page 19 COMMAND DESCRIPTION ZoneLineOut M AudioSrc=XXX Audio source of zone line out A~H. M=A~H(Support multiple selection). Available XXX: HDMI_In n, n=1~10 OpticIn n, n=1~2 CoaxIn n, n=1~2 AnalogIn n, n=1~4 OAR_In n, n=A~H CAT_In n, n=1~2 MixerOut n, n=1~3 ZoneLineOut M Treble=XXX Treble value of zone line out A~H.
  • Page 20 COMMAND DESCRIPTION ZoneLineOut M Volume=Slow Zone line out A~H volume fine(0.5dB step) adjusting. M=A~H(Support multiple selection). XXX=”Up” or “Down” ZoneLineOut M Delay=XXX Zone line out A~H delay. M=A~H(Support multiple selection). XXX=0~230 (mS). ZoneLineOut M Mute Mute zone line out A~H. M=A~H(Support multiple selection).
  • Page 21 COMMAND DESCRIPTION ExtLineOut M AudioSrc=XXX Audio source of extended line out. M=1~4(Support multiple selection). Available XXX: HDMI_In n, n=1~10 OpticIn n, n=1~2 CoaxIn n, n=1~2 AnalogIn n, n=1~4 OAR_In n, n=A~H CAT_In n, n=1~2 MixerOut n, n=1~3 ExtLineOut M Treble=XXX Treble value of extended line out.
  • Page 22 COMMAND DESCRIPTION ExtLineOut M Volume=Fast XXX Extended line out volume coarse(2dB step) adjusting. M=1~4(Support multiple selection). XXX=”Up” or “Down” ExtLineOut M Volume=Slow XXX Extended line out volume fine(0.5dB step) adjusting. M=1~4. XXX=”Up” or “Down” ExtLineOut M Delay=XXX Extended line out delay. M=1~4(Support multiple selection).
  • Page 23 COMMAND DESCRIPTION AudioCAT_Out M AudioSrc=XXX Audio source of AudioCAT audio out. M=1~2(Support multiple selection). Available XXX: HDMI_In n, n=1~10 OpticIn n, n=1~2 CoaxIn n, n=1~2 AnalogIn n, n=1~4 OAR_In n, n=A~H CAT_In n, n=1~2 MixerOut n, n=1~3 AudioCAT_Out M Status Display AudioCAT 1~2 status.
  • Page 24 COMMAND DESCRIPTION HDMI_Out M Mute Mute HDMI Tx audio. M=I~J(Support multiple selection). HDMI_Out M Unmute Unmute HDMI Tx audio. M=I~J(Support multiple selection). HDMI_Out M VideoSrc=XXX Video source of HDMI Tx out I~J. M=I~J(Support multiple selection). Available XXX: HDMI_In n, n=1~10 HDMI_Out M VideoSrc=Pattern Set Video source of HDMI Tx out to internal test pattern.
  • Page 25 COMMAND DESCRIPTION HDMI_Out M Status Display HDMI I~J status & properties including Aud/Vid matrix. M=I~J(Support multiple selection). HDMI_Out M Setup HDMI I~J verbose name. Name=”NameString” Maximum 32 characters. M=I~J(Only support single selection). HDBT_Out M AudioSrc=XXX Audio source of HDBaseT Tx audio. M=A~H(Support multiple selection).
  • Page 26 COMMAND DESCRIPTION HDBT_Out M VideoSrc=XXX Video source of HDBaseT Tx out A~H. M=A~H(Support multiple selection). Available XXX: HDMI_In n, n=1~10 HDBT_Out M VideoSrc=Pattern Reset Video source of HDBT Tx out to internal test pattern. M=A~H(Support multiple selection). HDBT_Out M VideoSrc=Default Reset Video source of HDBT Tx out A~H to factory default.
  • Page 27 COMMAND DESCRIPTION MixerOut M AudioSrc N=XXX Audio source of audio mixer input channel. M=1~3(Support multiple selection). N=A or B. Available XXX: HDMI_In n, n=1~10 OpticIn n, n=1~2 `CoaxIn n, n=1~2 AnalogIn n, n=1~4 OAR_In n, n=A~H CAT_In n, n=1~2 MixerOut M Gain N=XXX Signal gain of audio mixer input channel.
  • Page 28 COMMAND DESCRIPTION Power Off all Report power status PRESET Save M Save current A/V routing. M=1~8. PRESET Load M Recall current A/V routing. M=1~8. PRESET Show [M] List current stored A/V preset. M=1~8. If M is omitted, list all A/V preset. PRESET name M=”NameString”...
  • Page 29 COMMAND DESCRIPTION Pattern timing=M Specify pattern generator timing. M=timing options. 4K2K30 4K2K25 1080p60 1080p50 720p60 720p50 Pattern type=M Specify pattern generator timing. M=pattern type. Black Blue Green Cyan Magenta Yellow White FactoryDefault Reset all configuration to factory default. (Hidden Command) Show MAC address.
  • Page 30 COMMAND DESCRIPTION ZoneAvPair HDBT_Out M Slot N Setup HDBT_Out zone side audio/ video pairing storage slot N audio AudioSrc=XXX source. M=A~H(Only support single selection). N=1~11 (Support multiple selection). Available XXX: HDMI_In n, n=1~10 OpticIn n, n=1~2 CoaxIn n, n=1~2 AnalogIn n, n=1~4 OAR_In n, n=A~H CAT_In n, n=1~2 MixerOut n, n=1~3...
  • Page 31 COMMAND DESCRIPTION ZoneAvPair HDMI_Out M Slot N Setup HDMI_Out zone side audio/ video pairing storage slot N audio AudioSrc=XXX source. M=I~J(Only support single selection). N=1~11 (Support multiple selection). Available XXX: HDMI_In n, n=1~10 OpticIn n, n=1~2 CoaxIn n, n=1~2 AnalogIn n, n=1~4 OAR_In n, n=A~H CAT_In n, n=1~2 MixerOut n, n=1~3...
  • Page 32 COMMAND DESCRIPTION IR_Route HDBT_Out M0 M1 M2 Setup IR source of HDBT Rx end IR out jack. M0=Output port index. M0=A~H (Support multiple selection) M1=Route operation. Available M1: Add: Add M2 input source to HDBT_ Out. Del: Delete M2 input source from HDBT_Out.
  • Page 33 Note: All commands are case-insensitive. Commands Explanation Suitable for: - ZoneLineOut - ExtLineOut - AudioCAT_Out - HDMI_Out - HDBT_Out - MixerOut - Pattern - ZoneAvPair Basic Command Format: PortNumber Parameter=value. EX: ZoneLineOut B Treble = -12 Advanced Command Format: - Multi-Port Number: Each port uses “+” for separation. “space” is not permitted.
  • Page 34 - ZoneLineOut C Treble = -11 - ZoneLineOut C AudioSrc = HDMI_In 8 - ZoneLineOut C Bass=-9 - ZoneLineOut C Volume=-55 - ZoneLineOut C Delay =101 - ZoneLineOut C Mute - ZoneLineOut H Treble = -10 - ZoneLineOut H AudioSrc = HDMI_In 8 - ZoneLineOut H Bass=-10 - ZoneLineOut H Volume=-56 - ZoneLineOut H Delay =102...
  • Page 35 - Port uses “+” for separation. “space” is not permitted Advanced Commands Examples (Option 2): - ZoneLineOut B+C+H AudioSrc = HDMI_In 8, Mute & B+C Bass=-9, Volume=-55 & H Treble = -10, Delay =102, Bass=-10, Volume=-56 & B Treble = -12, Delay =100 & C Treble = -10, Delay =101 - Pattern Timing=4K2K60, Type=Green - ZoneAvPair HDBT_Out C Slot 1 AudioSrc=OAR_In A, VideoSrc=HDMI_ In 1 &...

  • Page 36: Telnet Control

    6.9 Telnet Control Before attempting to use the Telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the same active networks. To access the Telnet control in Windows 7, click on the 'Start' menu and type "cmd"...
  • Page 37 This will bring us into the unit which we wish to control. Type "help" to list the available commands. Note: Commands will not be executed unless followed by a carriage return. Commands are case-sensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.

  • Page 38: Webgui Control

    6.10 WebGUI Control Install the IP Discovery Tool: (1) Connect the Matrix to a PC with a Ethernet connection (via the 'LAN/ CONTROL' port). Please ensure your PC is on the same active network as the Matrix before running the application. (2) Please download the ZIP file from our website and save it in a directory where you can easily find it again.
  • Page 39 Login to the WebGUI: (1) Please enter “admin” at both of Username and Password column to log in the WebGUI tool. (2) Following functions tab will show at left side on first pages.
  • Page 40 6.10.1 Video Switch The page offers video routing setting includes HDCP and test pattern. Output and Input Routing: Please click the tab for the HDBaseT output port for example “HDBT_ Out A” and then click HDMI input port “HDMI_In 1” for basic routing setting. When clicking the output ports and input ports, the icons will show in orange.
  • Page 41 Output and Input Naming: All inputs and outputs can be named to correspond to the actual devices or rooms as required. Please click the edit icon to edit the input and output ports name. Please click the “save” icon to confirm the change. Note: The character "...
  • Page 42 HDMI Output Setting: Two HDMI outputs (port I & port J) allows a maximum timing of 6G (4096x2160p@50/60Hz), these can be used as general routing (named as independent on the WebGUI) and mirrored routing (named as Mirror on the WebGUI) for real time zone mirroring e.g. HDBaseT output connects to a TV (via RX) and the mirrored HDMI output directly to an AVR.
  • Page 43 Internal Test Pattern: This advanced matrix comes with an internal test pattern generator. This generates simple patterns to test the connected sink devices status and the corresponding cable infrastructure. This is a useful tool for installation engineer to identify the sink device and matrix status. This can also be used as a video sink for any connected audio only source, use where only a TV is available for audio reproduction to allow your desired audio only source to be heard.
  • Page 44 (2) Colour: The test pattern colours can be changed; eight kinds of colours are available. . Preset Setting: Eight video and audio routing presets are available to “store”. Click the icon to invoke the Preset page, click the icon to “recall” a previous preset.
  • Page 45 (2) Recall: Click icon to recall preset setting back. 6.10.2 Zone Audio This advanced matrix units offers video routing and complete audio routing functionality. The zone audio offers audio breakaway capability. The audio source setting, output volume, treble & bass range and audio delay are able to be set on this page.
  • Page 46 Audio Output Setting: Click the edit icon to invoke the settings window (1) Rename: The zone audio outputs are able to be renamed here. Click the icon to invoke the window for renaming. (2) Volume: The zone audio output volume is adjustable from 0dB to -100dB.
  • Page 47 6.10.3 Extended Audio The four extended audio output offers flexibility on audio output extended requirement. Output and Input Routing: Clicking the tabs from left to right to select and set the audio source, these include optical, coaxial, line, OAR, audio CAT, mixer and the audio from HDMI 1 to HDMI 10..
  • Page 48 6.10.4 CAT Audio With a compatible Receiver (PU-305BD-RX / PU-305BDA-RX / AU-A50) you can connect from the matrix by Cat5e/6 cable to send audio sources up to 300m. Any audio source including HDMI sources can be routed across this CAT cable, in addition sources can be routed back from the RX to the matrix.
  • Page 49 6.10.5 HDMI Audio The audio received by the two HDMI outputs (port number: I & J) are able to be selected on this page. Output and Input Routing: Clicking the tabs from left to right to select and set the audio source, these include optical, coaxial, line, OAR, audio CAT, mixer and the audio from HDMI 1 to HDMI 10.
  • Page 50 6.10.6 HDBaseT Audio The audio received by the HDBaseT output can be selected on this page. Output and Input Routing: Clicking the tabs from left to right to select and set the audio source, these include optical, coaxial, line, OAR, audio CAT, mixer and the audio from HDMI 1 to HDMI 10.
  • Page 51 6.10.7 Mixer Audio The Audio Mixer enables any two audio sources to be mixed together; three mixers are available in total. Output and Input Routing: Clicking the tabs from left to right to select and set the audio source, these include optical, coaxial, line, OAR, audio CAT, mixer and the audio from HDMI 1 to HDMI 10.
  • Page 52 6.10.8 Zone A/V Pairing The easiest way to use the PUV-1082PL-4K22 for simple HDMI switching whilst still allowing for individually tailored zone audio is to use the Zone AV Pairing settings configured on this section of the webGUI. As the IR remote supplied with the PUV-1082PL-4K22 sends AV pairing...
  • Page 53 (2) Video and Audio Setting: Please click the icon to edit the zone video and audio routing setting, please save the setting once complete selection. 6.10.9 EDID Settings Customer EDID Settings: Click the “Upload” tab to import a custom saved EDID file.
  • Page 54 Sink EDID Download: Ten sets of sink EDID’s and four sets of customer EDID are available for EDID management. Four sets of customer EDID files allow the customer to edit the names and customized the EDID data. Set EDID Input Content: The EDID management can be set in two ways.
  • Page 55 Note: The matrix unit comes with 6 sets of default EDID setting. The settings are as follows. 1. FHD/2CH: 1080p/60Hz(148M), 2.0 LPCM, 8-bit colour. 2. FHD/MCH: 1080p/60Hz(148M), 7.1 LPCM and bit-stream, 8-bit colour. 3. 4K UHD/2CH : 3840×2160p/30Hz (297M), 2.0LPCM, Deep color (8/10/12-bit) 4.
  • Page 56 6.10.11 User Config The Web and Telnet login user name and password settings are found on this page. Two levels management are available, one is “administrator” and the other one is “general user”. The EDID Settings and System Settings pages are disabled for general user.
  • Page 57 Click the “Download” tab to download current system configuration. The current system configuration will be stored as XML file. The system configuration is able to be restore once selected the XML file and restore. 6.10.13 Logout Click the logout tab at left side, this will automatically logout of the WebGUI and return to login page.

  • Page 58: Connection Diagram

    7. CONNECTION DIAGRAM Audio/Video Zones • IR In/Out • HDMI Output • LAN Serving • Optical audio return (OAR) Simultaneous Audio zones Audio Source Devices CAT5e/6/7 Analog Independent Outputs Stereo Audio Zones Outputs Analog Audio Digital Audio Inputs Inputs RS-232 ZONE EXTENDED ANALOG...

  • Page 59: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth HDMI: 600 MHz/18 Gbps HDBaseT: 340 MHz/10.2 Gbps Input Ports 10×HDMI, 4×Stereo Audio (2×RCA), 2×Coaxial Audio, 2×Optical Audio, 2×CAT Audio (RJ45) Output Ports 2×HDMI, 8×CAT5e/6, 12×Stereo Audio (2×RCA), 2×CAT Audio (RJ45) Control Ports 9×IR Extender, 11×IR Blaster, 1×RS-232 (9-pin D-sub), 1×IP Control Service Port...

  • Page 60: Supported Video Formats

    8.2 Supported Video Formats HDMI Input Output 480i@60   480p@60   576i@60   576p@60   640 x 480@60   800 x 600@60   720p@50/60   1080i@50/60   1080p@24/50/60   1024 x 768@60 ...

  • Page 61: Supported Audio Formats

    8.4 Supported Audio Formats Linear PCM LPCM 2CH@44.1 kHz LPCM 7.1CH@44.1 kHz LPCM 2CH@88.2 kHz LPCM 7.1CH@88.2 kHz LPCM 2CH@176.4 kHz LPCM 7.1CH@176.4 kHz LPCM 2CH@32 kHz LPCM 7.1CH@32 kHz LPCM 2CH@48 kHz LPCM 7.1CH@48 kHz LPCM 2CH@96 kHz LPCM 7.1CH@96 kHz LPCM 2CH@192 kHz LPCM 7.1CH@192 kHz LPCM 5.1CH@44.1 kHz...

  • Page 62: Cat5E/6/7 Cable Specifications

    8.6 CAT5e/6/7 Cable Specifications Length Bandwidth Data Rate Supported Video Up to 60 m Up to 225 MHz Up to HD Video 5.3 Gbps Up to 1080p@60 Hz/36-bit, 3D (data rate lower than 5.3 Gbps or bandwidth below 225 MHz). Up to 35 m Greater than Ultra HD Video Greater than...

  • Page 63: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Command Line Interface COAX Coaxial Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface...
  • Page 64 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.03...
