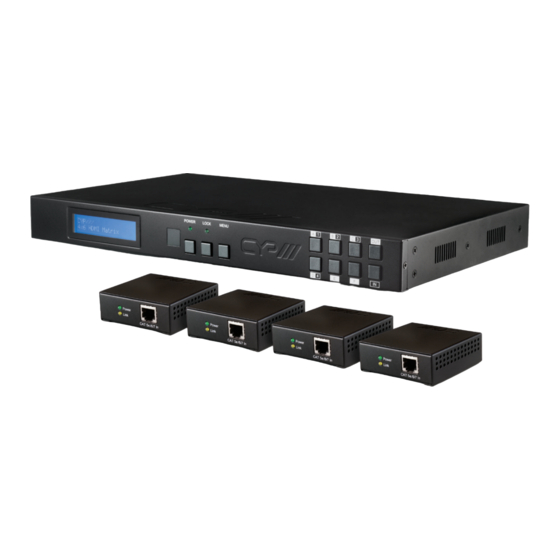

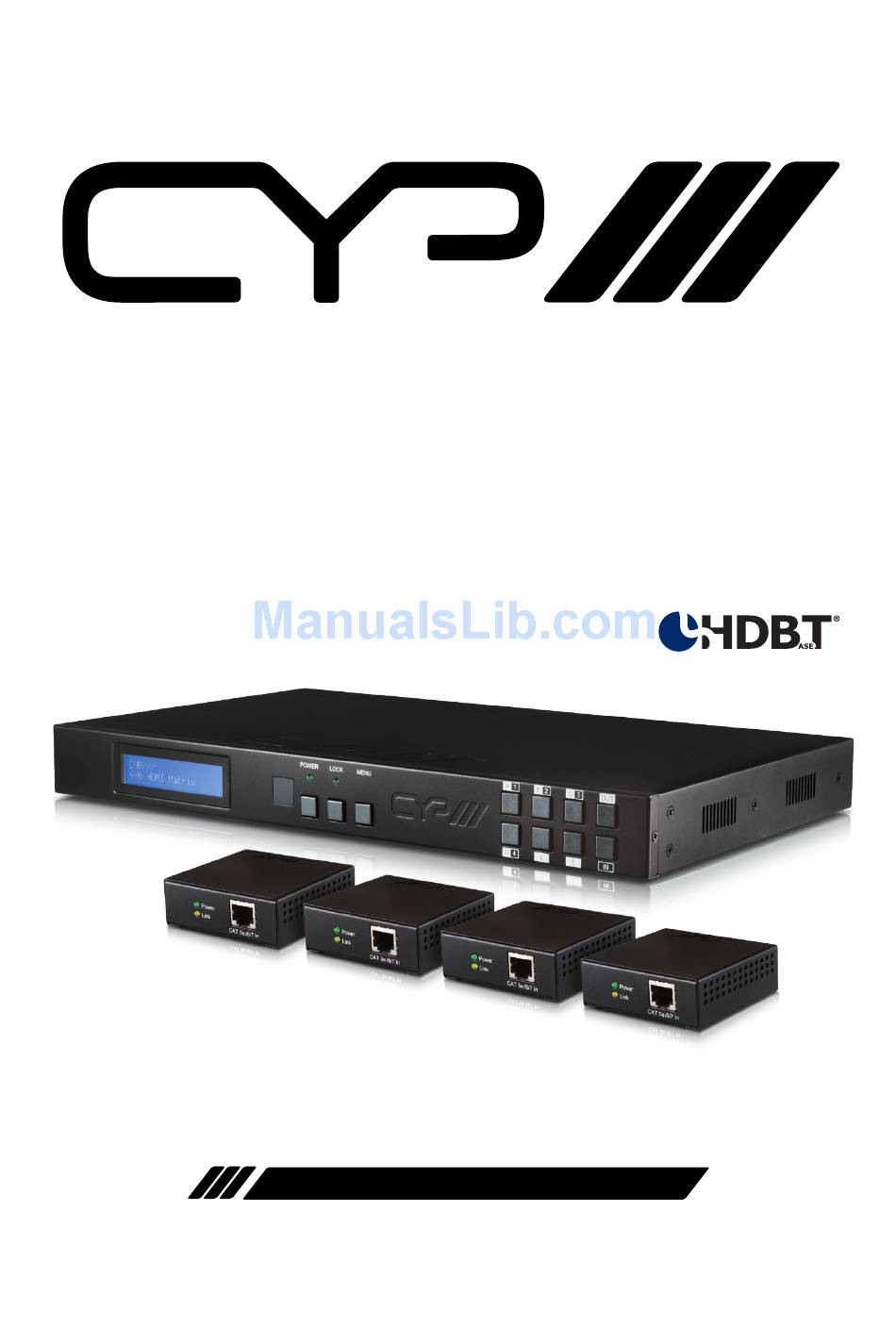

- Page 1 PU-442PL-KIT 4 x 4 HDBaseT™ Lite Matrix with PoE, plus 2 Additional Independent HDMI Zone Outputs (total 4 x 6 Matrix) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Side Panel ...........10 6.4 Remote Control ........10 6.5 IR Pin Assignment ........11 6.6 RS-232 Protocols ........11 6.7 RS-232 &... -
Page 6: Introduction
PU-515PL-RX receivers without the need for a separate mains power supply. The PU-442PL-KIT supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz), PoE, 2-way IR, multi-channel digital audio, and control via IR, RS-232, or Web GUI/Telnet IP. Use the IP control feature to enable users to access and control the matrix remotely and also allow additional options for integration of third-party control systems. -
Page 7: Features
5. FEATURES Supports all v1.3 HDMI resolutions Supports uncompressed video/audio up to 10.2Gbps Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA. HDMI, HDCP and DVI complaint High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz) Uncompressed data transfer over single CAT cable (60m - CAT5e/6/7) Supports HDMI input up to 15m 1080p 8bit or 10m 1080p 12bit. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS The following sections describe the hardware components of the unit. 6.1 Front Panel POWER LOCK MENU LCM: This monitor displays your setting information with each input and output selection. IR: This IR window accepts the remote control signal of this device only. -
Page 9: Rear Panel
6.2 Rear Panel IR OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT HDMI OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN IR OUT HDMI OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN HDMI IN 1 HDMI IN 2 HDMI IN 3 HDMI IN 4 DC 24V... -
Page 10: Side Panel
ALL IR IN: This slot is to connect with the IR receiver for IR signal receiving and send out to receiver sides. DC24V: This slot is to plug the power cord with adaptor included in the package and then connect them with AC wall outlet for power supply. -
Page 11: Ir Pin Assignment
6.5 IR Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Ground 6.6 RS-232 Protocols PU-442PL Remote Control Console Assignment Assignment Baud Rate: 19200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 12: Rs-232 & Telnet Commands
6.7 RS-232 & Telnet Commands Command Description A1~A4 Switch output A to 1~4 B1~B4 Switch output B to 1~4 C1~C4 Switch output C to 1~4 D1~D4 Switch output D to 1~4 E1~E4 Switch output E to 1~4 F1~F4 Switch output F to 1~4 A0~F0 Switch output A to F mute ABCD…1~ABCD…4... - Page 13 Command Description UARTBAUD? Display baud rate setting 1~6 1: 9600bps 2: 14400bps 3: 19200bps 4: 38400bps 5: 57600bps 6: 115200bps UARTBAUD2 Set output B’s baud rate from 1~6 UARTBAUD3 Set output C’s baud rate from 1~6 UARTBAUD5 Set output E’s baud rate from 1~6 UARTBAUD6 Set output F’s baud rate from 1~6 UARTSW?
-
Page 14: Telnet Control
6.8 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'CONTROL' port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 15 Type “IPCONFIG” To show all IP configurations. To reset the IP, type “RSTIP” and to use a set static IP, type ”SETIP” (For a full list of commands, see Section 6.7). Note: All the commands will be not executed unless followed by a carriage return.
-
Page 16: Web Gui Control
6.9 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. - Page 17 Clicking on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every timeany of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Media Receiver Receiver Player Streamer HDMI Input & 2-Way IR Control RS-232 PU-442PL-KIT Controller IR Out All IR In All CAT Cable (up to 60m) Local HDMI Router PU-515PL-RX Output (IP Control) HDMI Output & 2-Way IR Control... -
Page 19: Specifications
8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 4×HDMI, 5×IR Receiver, 1×RS-232, 1×LAN (Control only), 1×RJ45 (Control Only), 1×USB Mini-B (Service Only) Output Ports 2×HDMI, 4×CAT5e/6/7, 5×IR Emitter Power Supply 24 V / 3.75 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body model:... -
Page 20: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition multimedia Interface... - Page 24 CIE-Group Ltd, 3 Widdowson Close, Blenheim Industrial Estate, Bulwell, Nottingham, NG6 8WB Tel: +44 (0) 115 977 0075 | Fax: +44 (0) 115 977 0081 Email: info@cie-group.com www.ciegroup.com v1.02...
