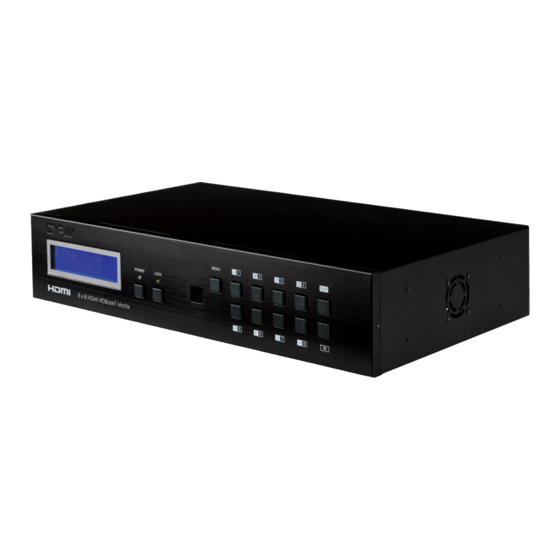

- Page 1 PU-8H8HBTE 8 x 8 HDMI HDBaseT™ Matrix (5-Play including LAN serving) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........1 2. Applications ...........1 3. Package Contents ........1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........... 3 6.2 Rear Panel ............. 4 6.3 Side Panel ............. 5 6.4 Remote Control .......... 5 6.5 IR Cable Pin Assignment ...... -
Page 6: Introduction
1. INTRODUCTION As the Flagship 8x8 HDBaseT™ Matrix, the PU-8H8HBTE solution offers complete HDBaseT™ 5-Play convergence. Installers can switch and distribute up to 8 HDMI sources, LAN (Local Area Network), 2-Way IR, and PoE (Power over Ethernet) to lengths of up to 100m using CAT5e/6 cable infrastructure. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI equipped source devices, connect with HDMI cables or DVI equipped source, connect with DVI to HDMI cables • HDMI equipped displays (TVs or monitors) or HDMI equipped AV receivers, connect with HDMI cables • Industry standard CAT5e/6/7 cables •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER LOCK LCM : Displays the setting information of each input and output setting. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 9: Rear Panel
6.2 Rear Panel IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN IR IN IR IN IR IN... -
Page 10: Side Panel
DC 24V MAIN POWER: Plug the 24 V DC power supply into the unit and connect the adaptor to an AC outlet. PoE 24V: Plug the 24 V PoE power supply into the unit and connect the adaptor to an AC outlet. This unit will mainly power PoE (Power over Ethernet) capaable receiver units. -
Page 11: Ir Cable Pin Assignment
6.5 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Receiver IR Signal Power 5 V Grounding... -
Page 12: Rs-232 Pin Assignment
6.6 RS-232 Pin Assignment PU-8H8HBTE Remote Control Console Assignment Assignment Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 13: Rs-232 And Telnet Commands
6.7 RS-232 and Telnet Commands Command Description A0~H0 Mutes outputs A to H (No signal at these outputs) A1~A8 Switch Output A to 1~8 B1~B8 Switch Output B to 1~8 C1~C8 Switch Output C to 1~8 D1~D8 Switch Output D to 1~8 E1~E8 Switch Output E to 1~8 F1~F8... -
Page 14: Telnet Control
6.8 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to active networks. Note: Please do not connect both the Matrix and the PC/Laptop with a single CAT5e/6 cable as it will not access the telnet function. - Page 15 Once in the command line interface (CLI) type "telnet", a space, then the IP address of the unit you wish to control, a space and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice.
-
Page 16: Web Gui Control
6.9 Web GUI Control On a PC/Laptop that is connected to an active network, open a web browser and type the Matrix's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. - Page 17 Click on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE Power Power Power Power Link Link Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out CAT5e/6 In Extender Blaster RS232 Out CAT5e/6 In Extender Blaster... - Page 19 ZONE ZONE ZONE Displays HDMI Outputs IR Out/In Receiver Units Power Power Power Link Link Link Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 xtender Blaster RS232 Out CAT5e/6 In Extender Blaster RS232 Out CAT5e/6 In Extender Blaster...
-
Page 20: Specifications
8. SPECIFICATIONS Video Bandwidth 255 MHz/6.75 Gbps Input Ports 8×HDMI , 9×IR Extender, 1×RS-232, 1×LAN, 1×Mini USB-B type(for firmware update only) Output Ports 8×CAT5e/6/7, 9×IR Blaster ESD Protection Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Contact discharge) Power Supply 24 V/6.25 A DC (US/EU standards, CE/ FCC/UL certified) Dimensions... -
Page 21: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Module Universal Serial Bus Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array... - Page 24 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.02...
