Connecting Analog Output Signals
The DT9857 and DT9857E modules provide two analog output channels. The output channels
have an output range of ±10 V.

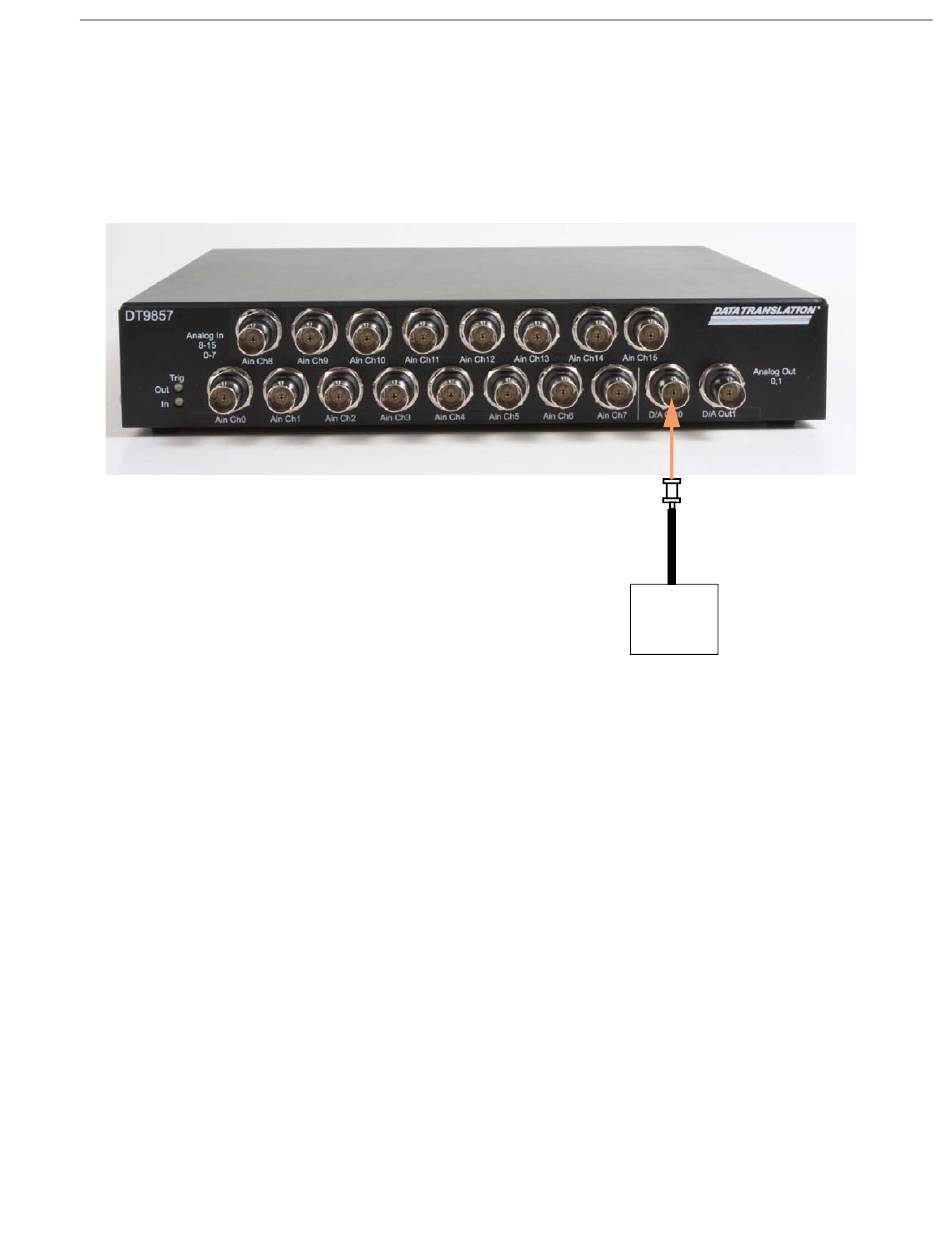

Figure 18
shows how to connect an analog output signal to a DT9857 or DT9857E module.
Figure 18: Connecting an Analog Output Signal
Analog Out 0
Load
Note that the connector automatically connects
the Analog Ground signal appropriately.
Wiring Signals
49
