External USB Connector

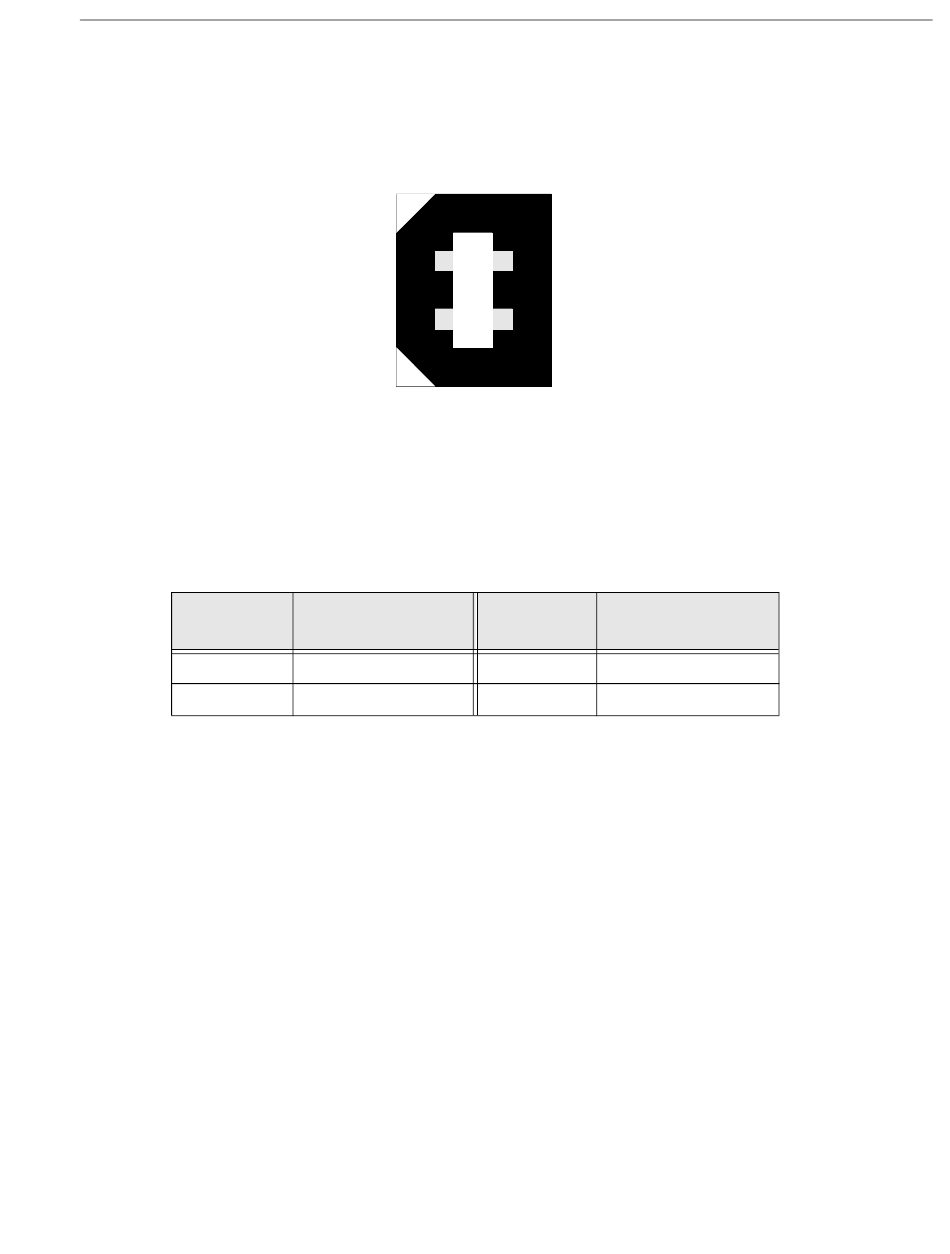

Figure 50
shows the layout of the external USB connector on the DT9857 and DT9857E
modules.
Table 38
lists the pin assignments for the USB connector on the DT9857 and DT9857E modules.
Connector
Pin Number
1
2
1
2
Figure 50: Layout of the USB Connector
Table 38: Pin Assignments for the USB Connector
Signal Description
USB +5 V
USB Data –
Connector Pin Assignments and LED Status Indicators
4
3
Connector
Pin Number
Signal Description
3
USB Data +
4
USB Ground
167
