Securing the power supply cable to the strain relief rail

 Place one cable clip on the power supply cable.
Secure the cable clip to the strain relief rail using 2 mounting screws

(ISO 4762-M4x10-A2 cylinder-head screws).
 Tighten the mounting screws alternatingly!
ATTENTION Tighten the mounting screws sufficiently but on no account pinch or crush the cable.

If you do, the cables may break or the cable insulation may get damaged.

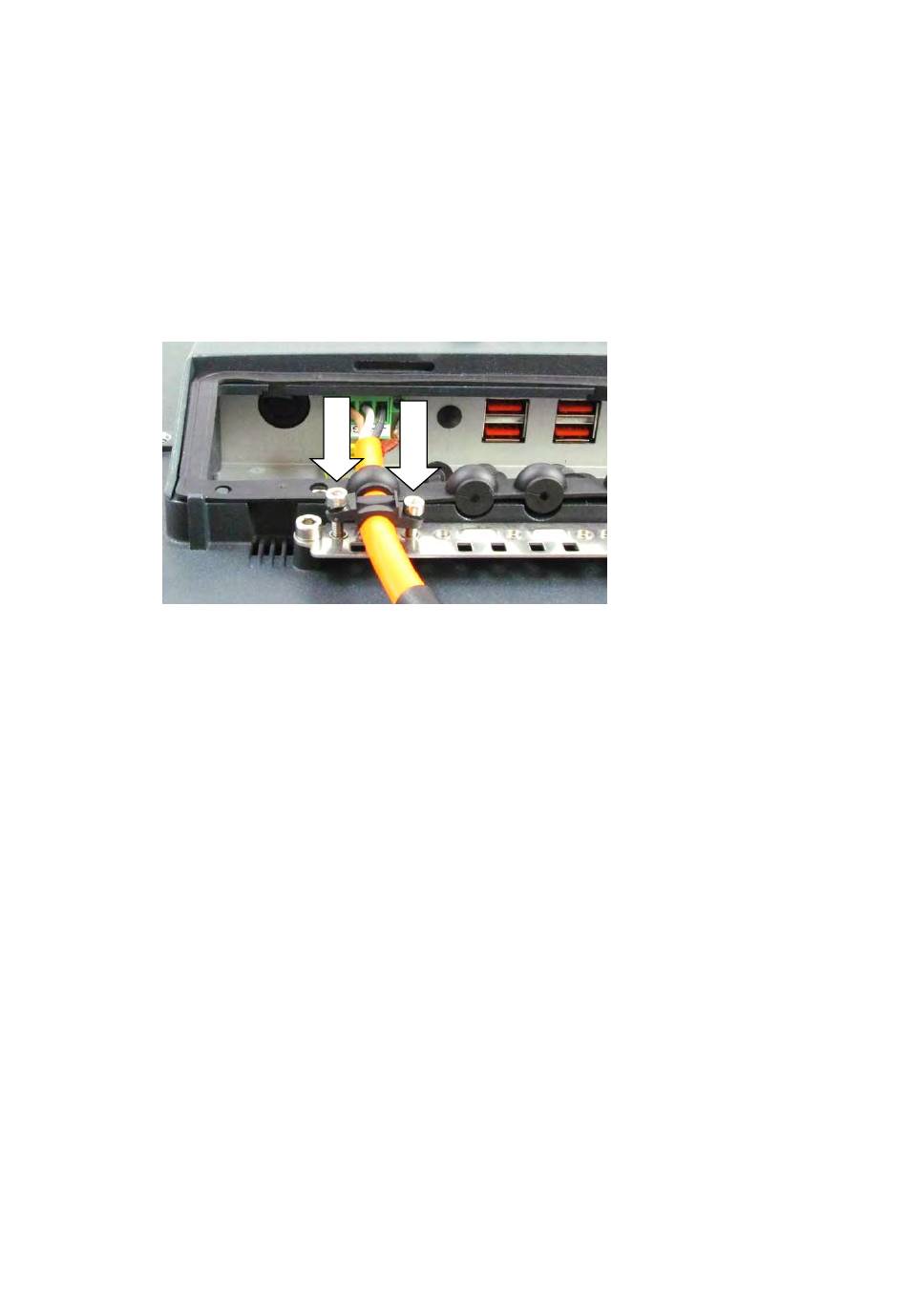

Fig. 12.4: Cable clip secured to the strain relief rail.
