10.5.3.

SIERRA WIRELESS MC80 Trouble Shooting

10.5.3.1. Testing the virtual COM ports for Wireless card SIERRA WIRELESS MC80
In the device manager it is possible to test that the virtual COM ports are correctly set.
If they are not correctly set, they must be modified as appropriate.
DLT-V72 with D525 processor:
The virtual COM ports must be set up as shown in the figure:

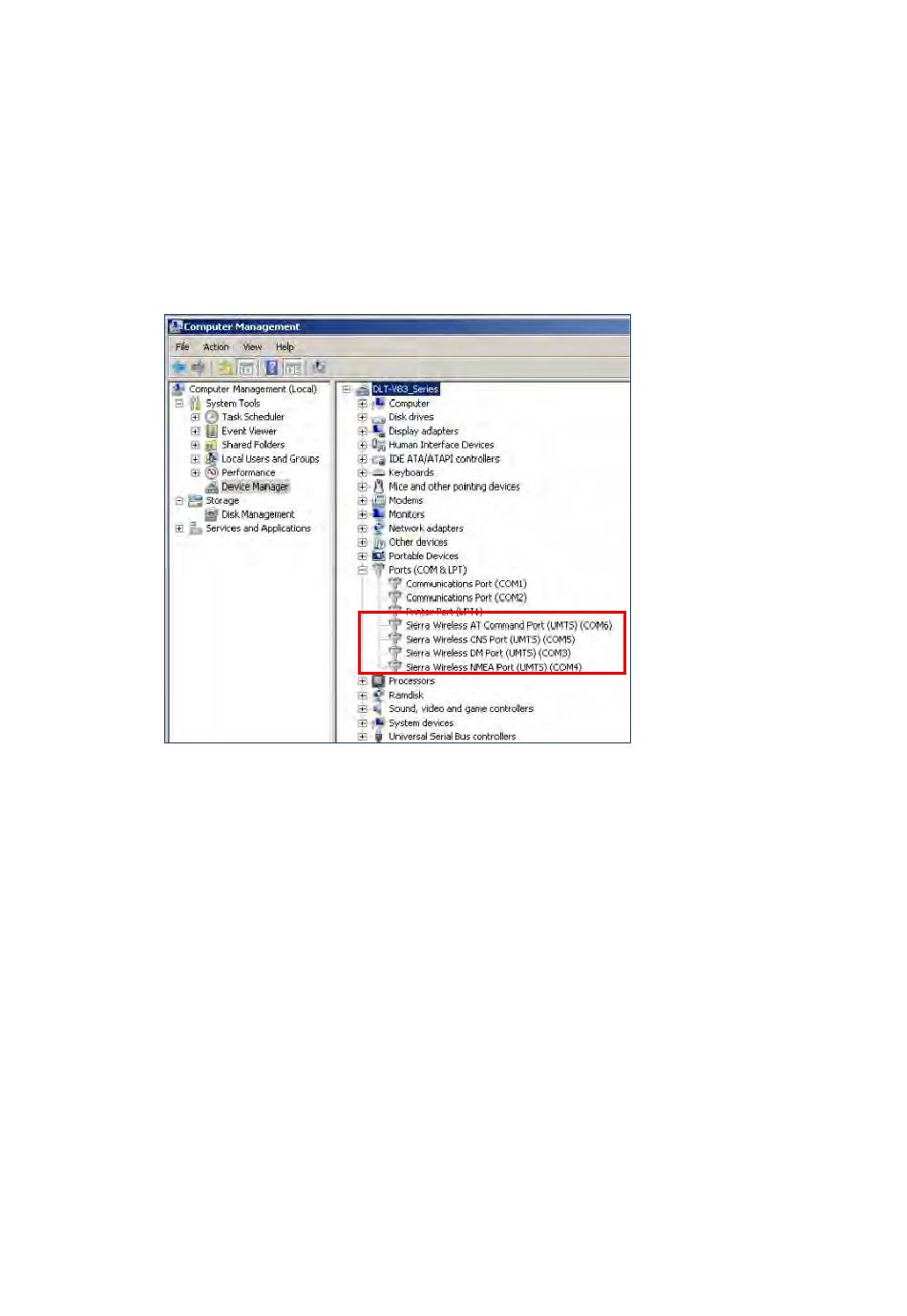

Fig. 10.11: SIERRA WIRELESS MC80 - Virtual COM ports DLT-V72 with D525 processor
