INT-44HDX
Installation Guide

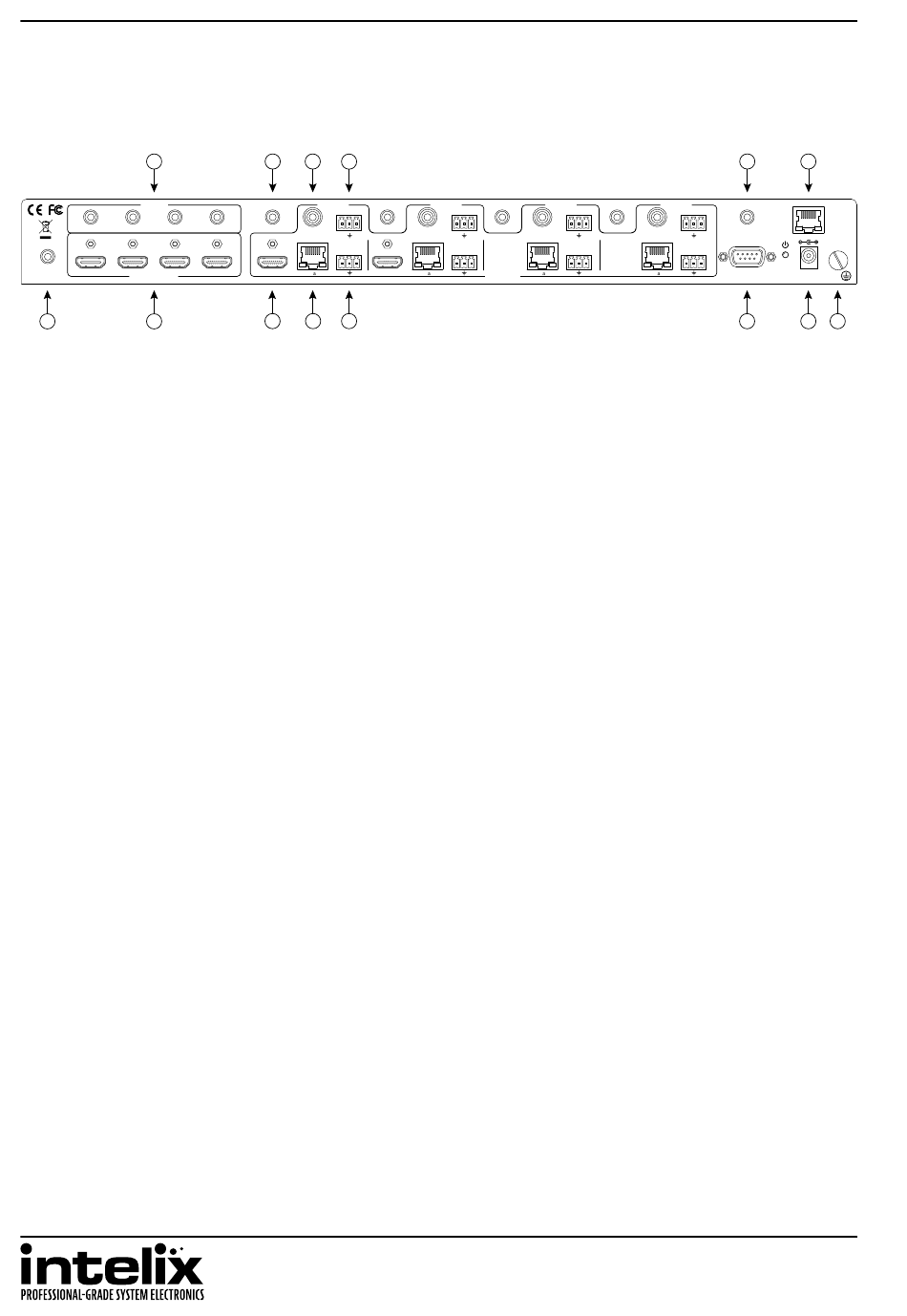

Rear Panel
A
IR OUT
1
2
3
1
2
3
IR ALL IN
HDMI INPUTS
G
H
A.
IR output ports for each source device
B.
IR input ports for each HDBaseT output
C.
Coaxial digital audio output ports
D.
RS232 input for each HDBaseT output
E.
IR input for matrix when front is covered or matrix is located in a concealed location (IR EYE)
F.
TCP/IP (Ethernet) control input; also allows control via web browser
G.
IR input to send IR commands to all remote HDBaseT devices simultaneously (IR ALL IN)
H.
HDMI inputs
I.
HDMI outputs (1 and 2 only)
J.
HDBaseT outputs with PoH support
K.
Unbalanced analog audio output ports
L.
RS232 control input
M.
24V DC power input
N.
Ground screw
8
B
C
D
ZONE 1
IR IN
IR IN
RS232
4
1
2
COAX
TX
RX
4
AUDIO
HDMI
HDB seT
L
R
HDMI
I
J
K
ZONE 2
ZONE 3
IR IN
RS232
RS232
3
COAX
TX
RX
COAX
TX
RX
AUDIO
AUDIO
HDB seT
L
R
HDB seT
L
R
OUTPUTS
E
ZONE 4
IR IN
IR EYE
RS232
4
COAX
TX
RX
AUDIO
RS232
HDB seT
L
R
L
F
TCP/IP
24V DC
M
N
