INT-44HDX
Installation Guide
Connect Sources
Connect the source devices to HDMI inputs using HDMI cables that are less than or equal to 5 meters in length.
For source devices that are further away, an HDMI extension device will be required to complete the connection.
Connect Displays
HDMI Outputs
Connect the display devices to HDMI outputs using HDMI cables that are less than or equal to 5 meters in length.
For display devices that are further away, it is highly recommended to utilize the HDBaseT outputs.
HDBaseT Outputs
Connect the HDBaseT receiver to the display per the manufacturer's instructions. Connect the HDBaseT cable to
the matrix and the HDBaseT receiver.
Connect Audio Outputs

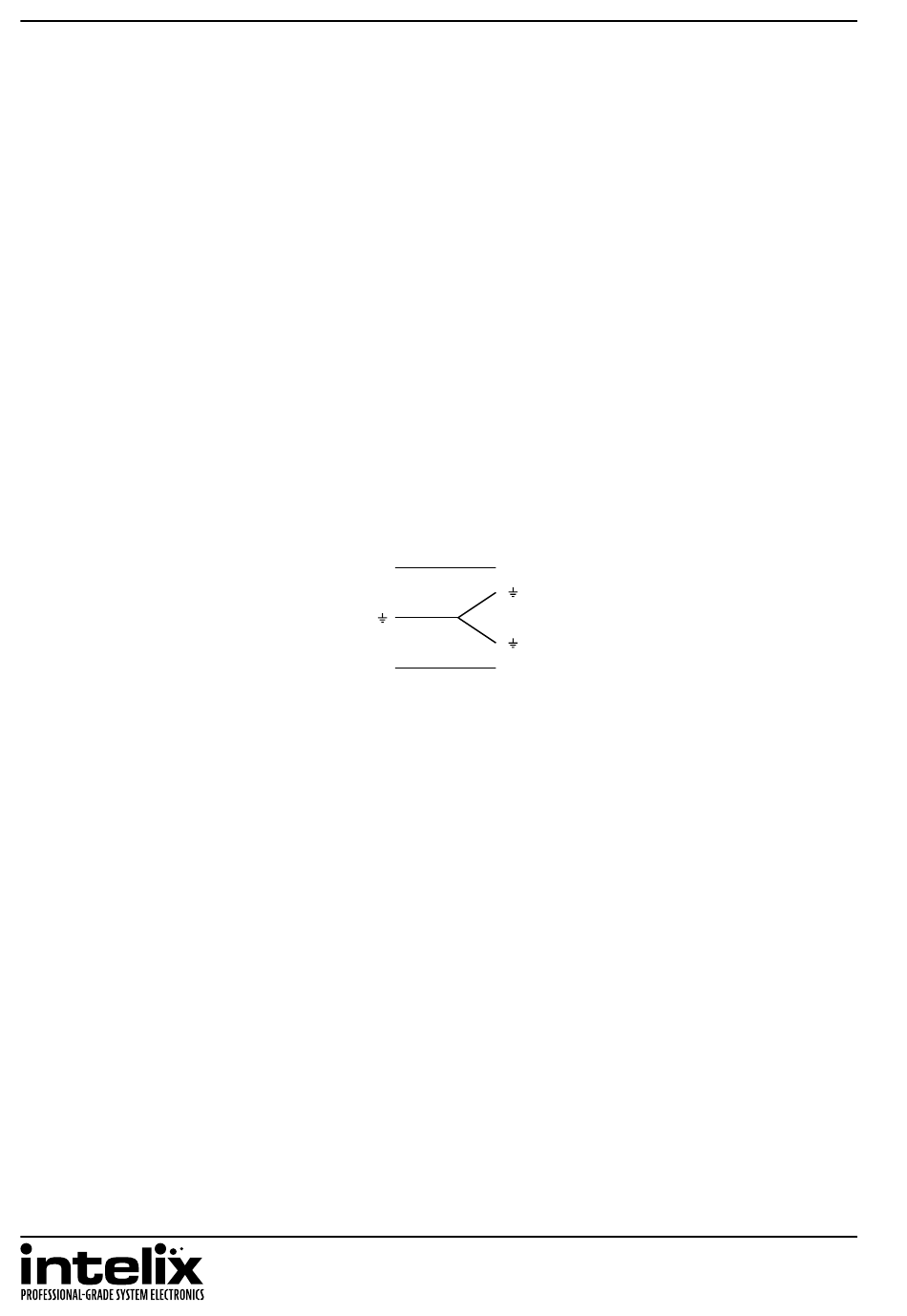

Unbalanced Audio Wiring
Using the included removable 3-pole terminal blocks, make a cable to interface between the audio device and the
INT-44HDX as shown in the drawing above. Consult the documentation for the audio device to identify the left, left
ground, right, and right ground audio signals.
Insert the removable 3-pole terminal block to the appropriate output zone terminal.
Coaxial Digital Audio
Connect a high quality 75 ohm coaxial digital audio cable between the audio device and the appropriate output
zone port on the INT-44HDX.
12
Audio
INT-44HDX
Device
L
L+
L
R
R
R+
Unbalanced Audio Connection
