Connect TCP/IP (Ethernet) Control

The INT-44HDX may be controlled via Ethernet with a third party control system or through a web browser interface.
Additionally, the INT-44HDX has an advanced RS232 control mechanism which will transmit RS232 commands
through the HDBaseT output port to control remote devices with a simple command string.
See page 21 for all available control commands for the INT-44HDX.
1 8
TIA/EIA-568B
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8

Matrix Control via TCP/IP (Ethernet)

Connect the Ethernet cable between to the matrix and a router with a straight-through cable or between the
matrix and a computer with a crossover cable.

Router Connection

1. Configure the router to use the same IP range as the matrix, such as 192.168.0.1.
2. Connect the computer to the router.
3. Connect the INT-44HDX to the router

Crossover Cable Connection

1. Configure the computer to use the same network prefix as the IP address assigned to the matrix. For example,
the IP address of the matrix is 192.168.0.178. Set the computer to use a static IP address within the same
network range, such as 192.168.0.42.
2. Connect the network crossover cable to the computer and to the TCP/IP port on the INT-44HDX.
1 8
TIA/EIA-568A
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
The TCP/IP port requires a standard straight-through Category 5 or
greater cable with the TIA/EIA-568B crimp pattern for operation.
Orange/White
Orange
Green/White The default settings for the TCP/IP port are:
Blue
IP address: 192.168.0.178
Blue/White
Green
Port: 4001
Brown/White
Brown

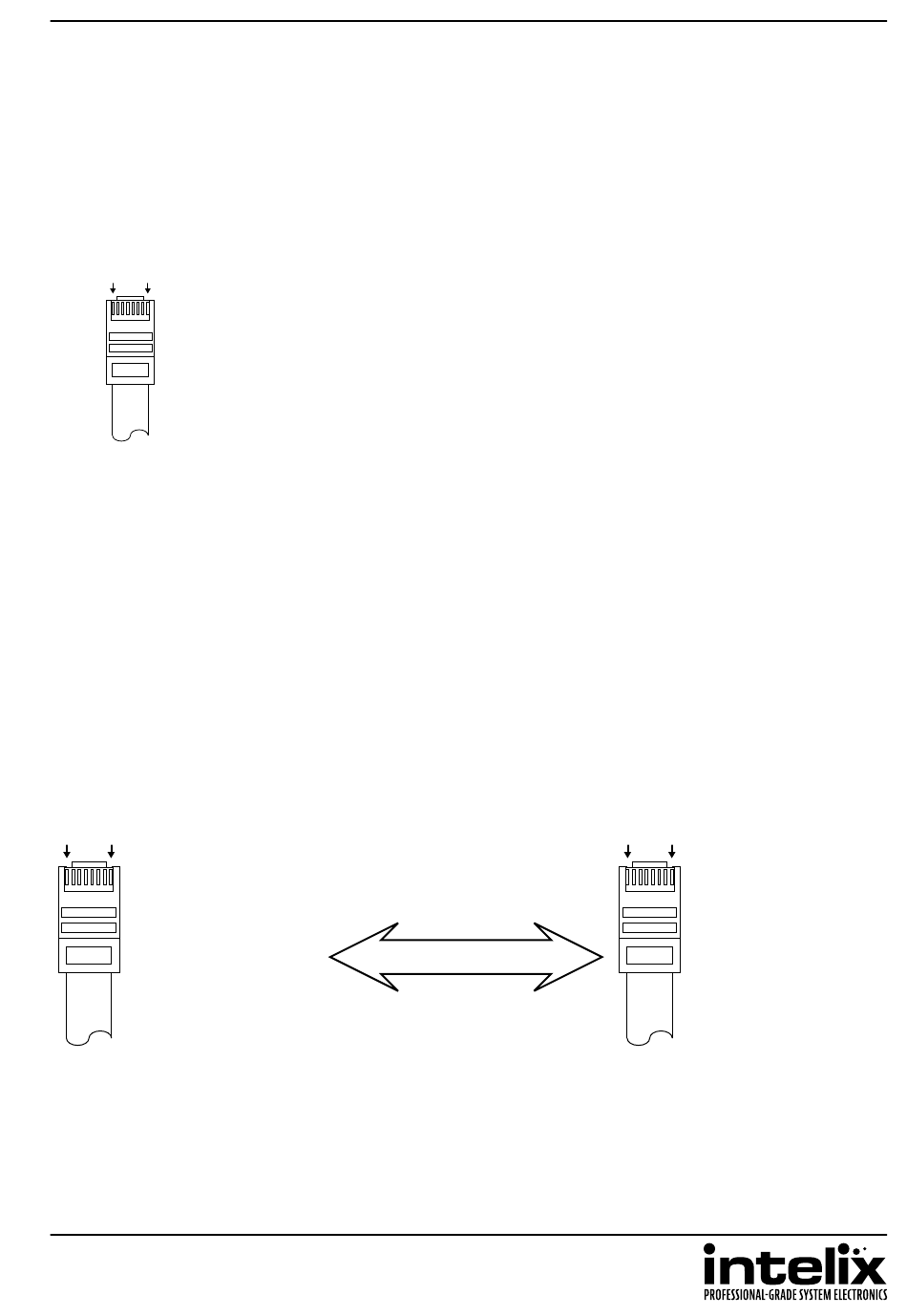

Crossover Cable Pinout
Green/White
Green
Orange/White
Blue
Blue/White
Orange
Brown/White
Brown
INT-44HDX
Installation Guide
1 8
TIA/EIA-568B
Pin 1 Orange/White
Pin 2
Pin 3 Green/White
Pin 4
Pin 5
Pin 6
Pin 7 Brown/White
Pin 8
Orange
Blue
Blue/White
Green
Brown
