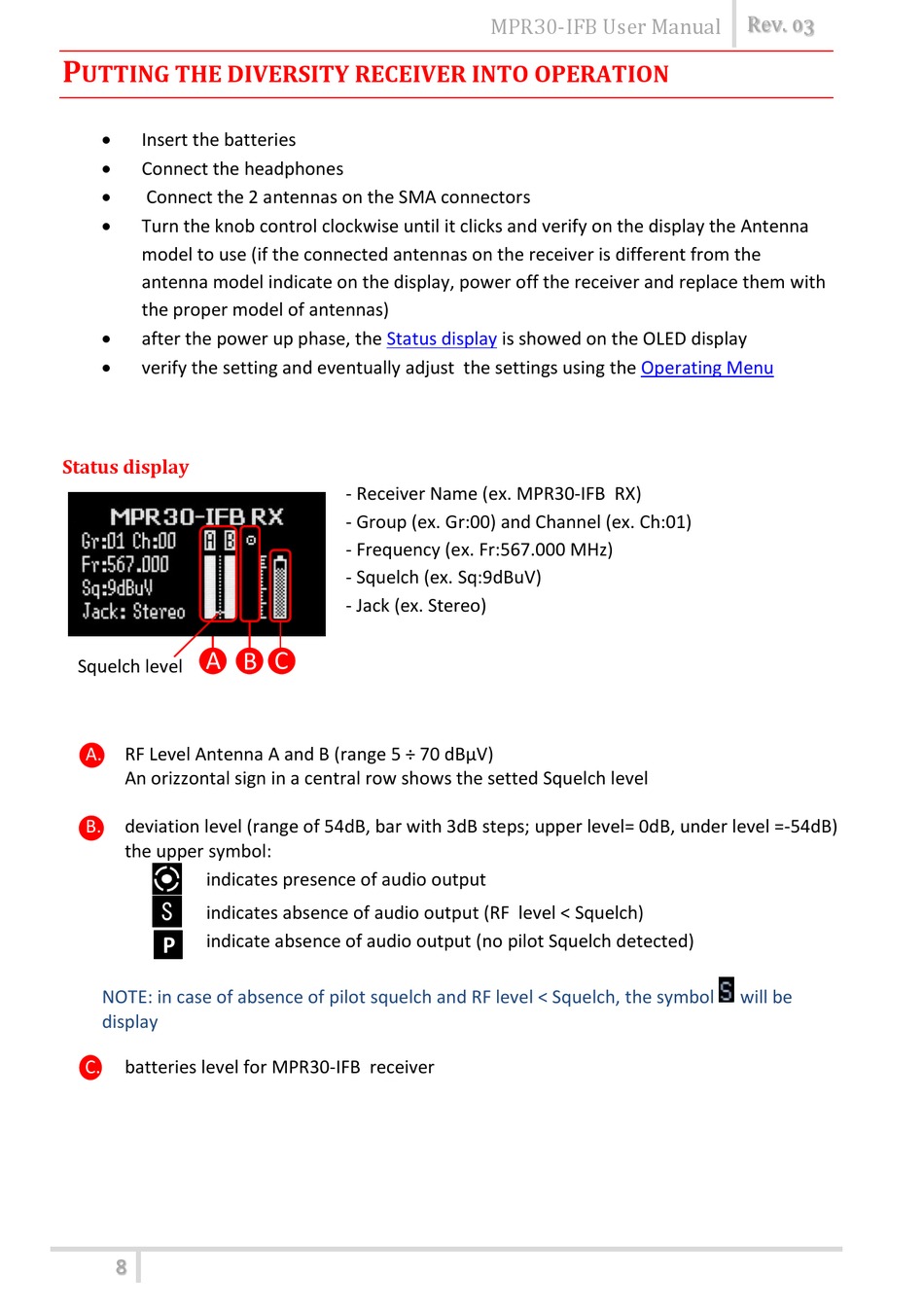

P
UTTING THE DIVERSITY RECEIVER INTO OPERATION
Insert the batteries
Connect the headphones
Connect the 2 antennas on the SMA connectors
Turn the knob control clockwise until it clicks and verify on the display the Antenna
model to use (if the connected antennas on the receiver is different from the
antenna model indicate on the display, power off the receiver and replace them with
the proper model of antennas)
after the power up phase, the
verify the setting and eventually adjust the settings using the
Status display
A B C
CSquelch level
A.
RF Level Antenna A and B (range 5 ÷ 70 dBµV)
An orizzontal sign in a central row shows the setted Squelch level
B.
deviation level (range of 54dB, bar with 3dB steps; upper level= 0dB, under level =-54dB)
the upper symbol:
indicates presence of audio output
S
indicates absence of audio output (RF level < Squelch)
indicate absence of audio output (no pilot Squelch detected)
P
NOTE: in case of absence of pilot squelch and RF level < Squelch, the symbol
display
C.
batteries level for MPR30-IFB receiver
8
MPR30-IFB User Manual
Status display
is showed on the OLED display
- Receiver Name (ex. MPR30-IFB RX)
- Group (ex. Gr:00) and Channel (ex. Ch:01)
- Frequency (ex. Fr:567.000 MHz)
- Squelch (ex. Sq:9dBuV)
- Jack (ex. Stereo)
Rev. 03
